Tecla XL X8 Touch Sensor 8-fold with thermostat

Name: Zennio Tecla XL X8 Touch Sensor 8-fold with thermostat
Brand: Zennio
Price: 137.74 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€137,74 Excl. tax €176,58 Excl. tax
€166,66 Incl. tax €213,67 Incl. tax. Out of stock, but available

Unit price: €137,74 / Piece

Capacitive KNX touch sensor with 8 touch zones, backlight, and temperature and proximity sensors. Available in white, silver, anthracite, and customizable. Read more

Specifications

Brand:

Zennio

Article number:

ZVITXLX8W

EAN:

8411080801470

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Datasheet

Manual

KNX Touch Sensor Tecla XL X8

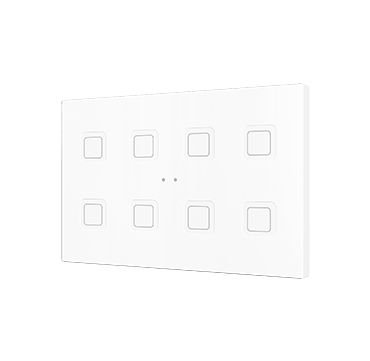

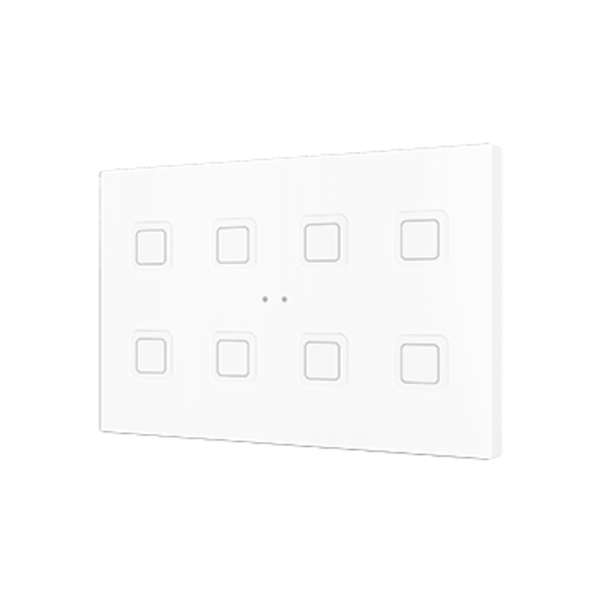

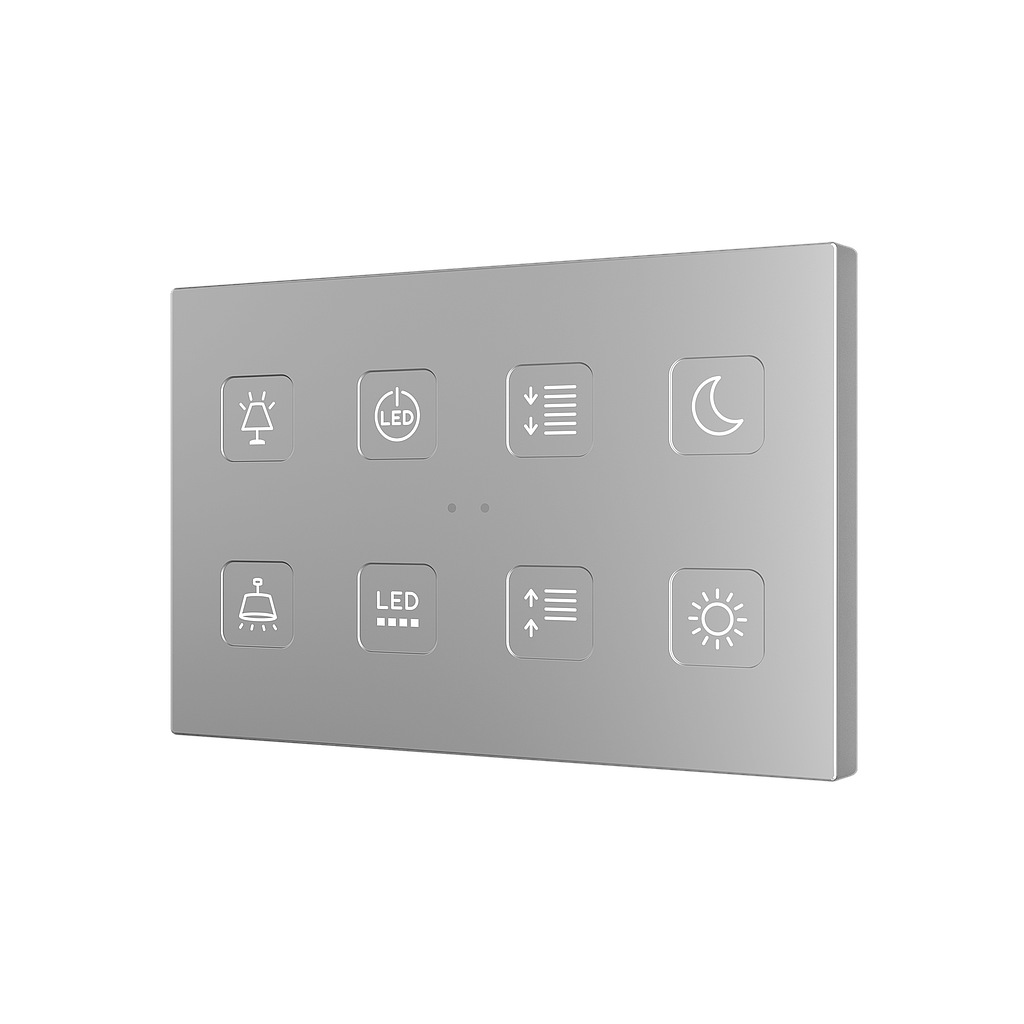

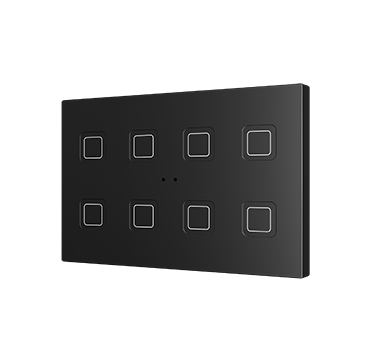

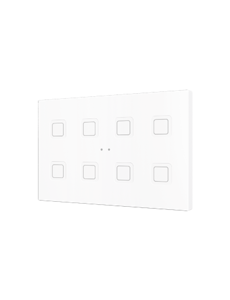

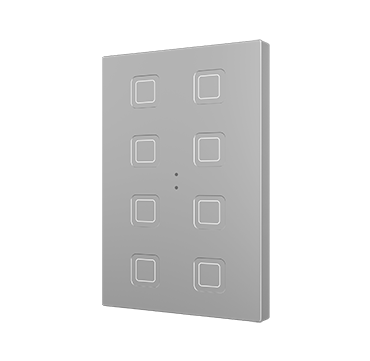

The Tecla XL X8 is a premium capacitive KNX touch sensor with 8 touch zones and advanced functionalities. It combines a stylish design with versatile features for modern smart buildings and homes.

Main Features

8 touch zones with capacitive technology and backlighting.
Built-in temperature and proximity sensors.
Touch feedback with acoustic signals.
Integrated KNX compatibility with data recovery in case of bus failures.
Available in white (RAL 9016), silver (RAL 9006), anthracite (RAL 9004), and customizable options.
Compatible with European, British, Italian, Australian, and American flush-mount boxes.
Integrated thermostat function.
Certified with CE, UKCA, and RCM standards.

Technical Specifications

Model	Tecla XL X8
Dimensions	119.4 x 79.8 x 23.2 mm
Power Supply	21-31 VDC (typical 29 VDC)
Maximum Power Consumption	19.2 mA at 29 VDC (556.8 mW) 25 mA at 24 VDC (600 mW)
Protection Class	IP20 (for clean environments)
Operating Temperature	0 to +55 °C
Storage Temperature	-20 to +55 °C
Relative Humidity	5% to 95% (non-condensing)
Sensor Specifications	Temperature Range: -30 to +90 °C Accuracy: ±0.5 °C at 25 °C Resolution: 0.1 °C
Housing Material	Polycarbonate (front), PC+ABS (rear), halogen-free
Connection Type	TP1 bus connector for 0.8 mm Ø rigid cable
Indicators	Programming LED (red) for installation Backlighting depending on parameter settings
Certifications	CE, UKCA, RCM
Weight	193 grams

Note

The accuracy of the built-in NTC sensor may be affected if the backlighting is kept on continuously. Configure the backlighting according to usage conditions to ensure optimal performance.
