KLIC-DI v2 KNX-Daikin Industrial Gateway | ZCLDIV2
€158,67 Excl. tax
€213,27 Excl. tax
€191,99 Incl. tax €258,05 Incl. tax. Out of stock, but available Manual
€191,99 Incl. tax €258,05 Incl. tax. Out of stock, but available Manual
Gateway for bidirectional KNX control of Daikin commercial and industrial HVAC systems. Features 2 analog/digital inputs, 10 logic functions, and DIN rail mounting. Read more
Specifications
Brand:
Zennio
Article number:
ZCLDIV2
EAN:
8411080790002
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

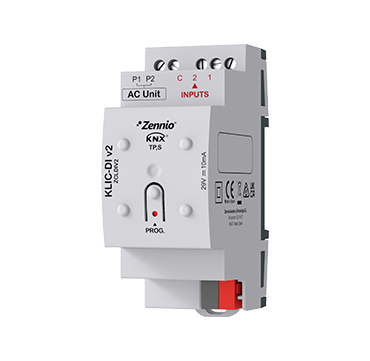

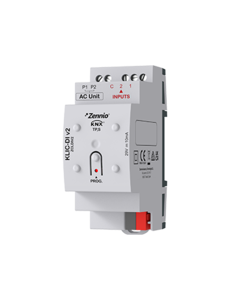

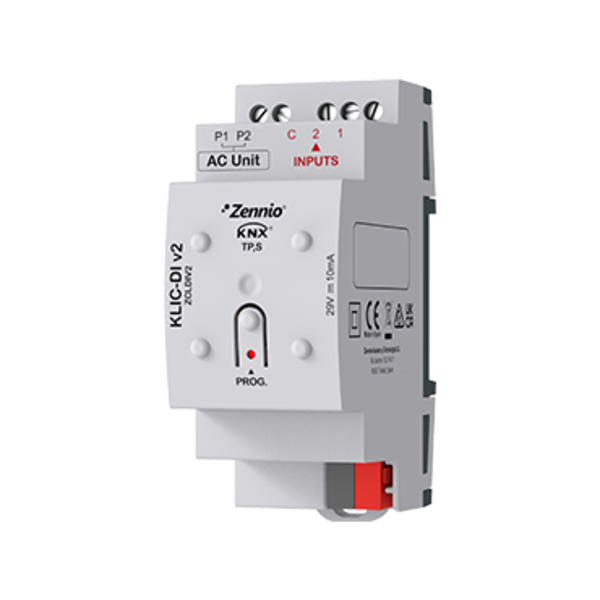

Zennio KLIC-DI v2 KNX-Daikin Industrial Gateway | Ref.: ZCLDIV2
The Zennio KLIC-DI v2 is an advanced gateway for integrating Daikin commercial and industrial air conditioning systems into KNX installations. It enables bidirectional communication, flexible connection options, and robust control capabilities for HVAC systems.
Main Features:
- Bidirectional communication with Daikin VRV and SKY ranges
- 2 analog/digital inputs compatible with:
- Temperature probes (NTC, accuracy ±0.5 °C, resolution 0.1 °C)
- Motion sensors
- Dry contacts (switches or push buttons)
- 10 logic functions for advanced automation
- DIN rail mounting (2 DIN units)
- Data retention during KNX bus failure; automatic recovery
- Compact dimensions: 67 x 90 x 36 mm
- Compliant with CE, UKCA, and RCM directives
Technical Specifications:
| KNX Power Supply | 21-31 VDC (typical: 29 VDC) |
|---|---|
| Maximum Consumption | 10 mA at 24 VDC |
| Operating Temperature | 0 to +55 °C |
| Protection Class | IP20 |
| Housing Material | PC FR V0, halogen-free |
| Dimensions | 67 x 90 x 36 mm |
| Weight | 114 g |
Installation Instructions:
Installation should only be performed by qualified professionals according to local regulations. Ensure the wired remote control is correctly configured as master or slave, depending on the type of setup.
Important Note:
This device contains software subject to specific licenses. For details, please refer to https://zennio.com/licenses. Recycle according to WEEE regulations at https://www.zennio.com/en/legal/weee-regulation.
