MAXinBOX Hospitality v3 - KNX Fan Coil Actuator | 2-channel, Secure
€227,98 Incl. tax €292,29 Incl. tax. Out of stock, but available
Specifications
Information

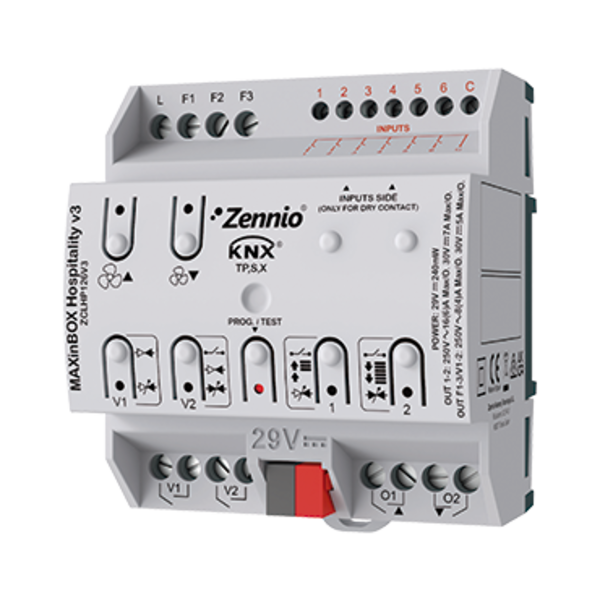

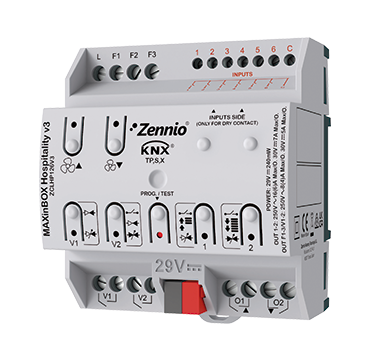

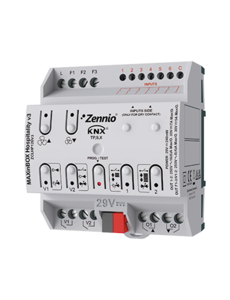

Zennio MAXinBOX Hospitality v3 Fan-coil Controller
Ref. ZCLHP126V3
The MAXinBOX Hospitality v3 is an advanced fan-coil controller designed for 2- or 4-pipe systems. It offers extensive functionalities such as fan speed control, KNX Secure compatibility, and logical functions. Ideal for smart buildings and hotels.
Key Features
- 3 configurable fan speed outputs
- 2 potential-free outputs for open/close or 3-point valves
- 6 multifunctional analog/digital inputs (for buttons, sensors, or temperature probes)
- Manual operation with integrated status LEDs
- KNX Secure support for safe communication
- Logical functions (up to 10)
- Data recovery in case of KNX bus failure
- DIN rail mounting (4.5 units) with clamp according to IEC 60715
Technical Specifications
General Specifications
| Power Supply | KNX (21-31 VDC) |
|---|---|
| Maximum Power Consumption | 10 mA @ 24 VDC |
| Dimensions | 67 x 90 x 79 mm (4.5 DIN units) |
| Weight | 246 g |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +55 °C |
| Protection Class | IP20 |
| Mounting | DIN rail mounting according to IEC 60715 |
Outputs
| Type | Potential-free outputs with bistable relays |
|---|---|
| Number of Outputs | 3 fan outputs, 2 configurable outputs |
| Maximum Load (resistive) | 2000 W (fan outputs), 4000 W (configurable outputs) |
| Inrush Current | 800 A/200 μs |
| Relay Lifetime (mechanical) | 3,000,000 switching cycles |
Inputs
| Number of Inputs | 6 analog/digital inputs |
|---|---|
| Maximum Cable Length | 30 meters |
| NTC Probe Accuracy | ±0.5 °C @ 25 °C |
| Switching Type | Dry contacts |
Important Notes
The MAXinBOX Hospitality v3 is designed for safe installation in electrical panels. Different phases per output block are allowed, but SELV and non-SELV power supplies must not be mixed.
Note: Compatible with KNX Secure. No external power supply required. Full data saving during power failures.
