MINiBOX 20 v2 | Multifunctional actuator, 2 outputs (16 AC) Secure
€125,38 Incl. tax €168,52 Incl. tax. Out of stock, but available
Specifications
Information

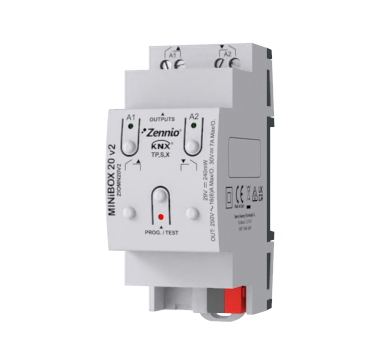

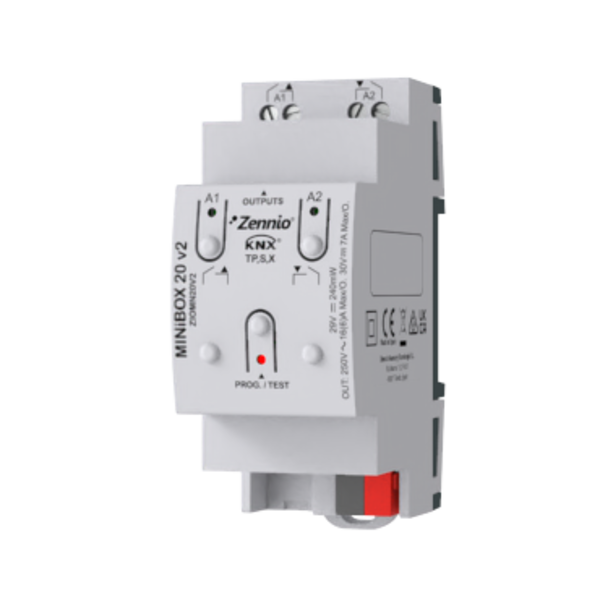

Zennio KNX Universal Actuator MINiBOX 20 v2 | Part No.: ZIOMN20V2
The MINiBOX 20 v2 is a multifunctional KNX actuator with 2 configurable outputs (16 A C-Load), compatible with KNX Secure. This actuator provides extensive configuration options, including use as a shutter channel or individual outputs. Manual control is easy with the buttons and LED indicators on the housing.
Main Features
- 2 configurable outputs: shutter channel (max. 1) and individual outputs (max. 2).
- Supports capacitive loads up to 140 µF.
- Compatible with KNX Data Security for secure communication.
- Manual operation via buttons and status LEDs.
- Includes 10 logical functions.
- Supports 2 Master Light controls.
- Full data saving during KNX bus failure.
- Inrush current: up to 800 A/200 µs.
- DIN rail mounting compatible with IEC 60715.
- Dimensions: 67 x 90 x 36 mm (2 DIN units).
Technical Specifications
| Device Type | Electrical operation control device |
|---|---|
| Power Supply | KNX TP1, 21-31 VDC |
| Power Consumption | 3.8 mA at 29 VDC |
| Number of Outputs | 2 potential-free outputs |
| Rated Current | 16 A C-Load per output |
| Maximum Load | Resistive: 4000 W, Inductive: 1500 VA |
| Inrush Current | 800 A/200 µs |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +55 °C |
| Humidity | 5-95% (non-condensing) |
| Protection Class | IP20 |
| Cable Cross-Section | 0.5-4 mm² |
| Mechanical Lifespan | Minimum 3 million cycles |
| Additional Features | Manual control, data saving, logical functions |
Important Notes
- Supports different phase connections on the outputs.
- Compatible with AC/DC shutter adapters as optional accessories.
- No integrated short-circuit or overload protection.
- Programmable logic and configuration via the KNX bus.
The MINiBOX 20 v2 is a robust and versatile solution for advanced automation needs in residential and commercial buildings. With KNX Secure support, the device ensures maximum reliability and security.
