8 fold Switch Actuator AKK compact 16A 230Vac
€231,23 Incl. tax €355,74 Incl. tax. Out of stock, but available
Specifications
Information

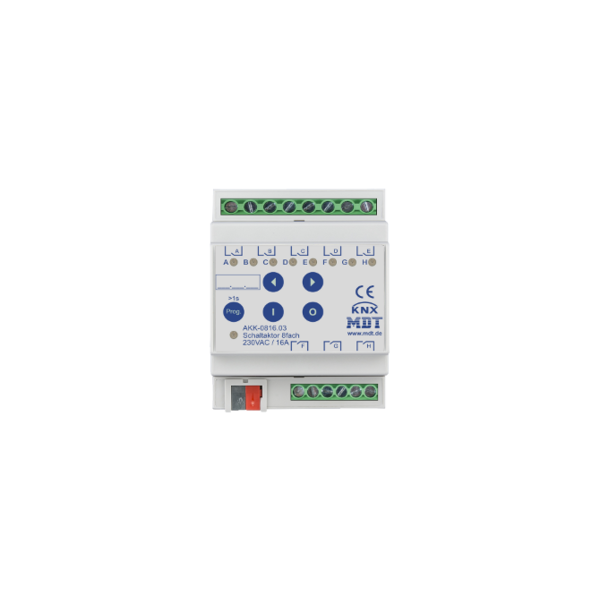

MDT AKK-0816.03 Switch Actuator Compact 8-fold
The MDT AKK-0816.03 is a compact switch actuator with 8 channels, designed for use in small to medium installations. This device is part of the AKK series and offers a wide range of functions for flexible and reliable control of electrical loads.
Main Features:
- Suitable for small to medium loads.
- 8-fold design with 4 SU MDRC, 230 V AC, 16 A.
- Lockable manual operation with LED indicators per channel.
- NO and NC contact operation.
- Time delay functions (on/off), staircase lighting, and impulses.
- Logical linking of binary data and extended scene functions.
- Adjustable behavior in case of bus voltage failure/recovery.
- Separate L-connections per channel for increased flexibility.
- Power supply via KNX bus and quick application download via ETS5 or higher.
Technical Specifications:
- Power supply: 230 V AC.
- Maximum switching capacity: 16 A, 70 µF C-load.
- Dimensions: 4 SU (72 mm wide).
- Mounting: DIN-rail 35 mm.
- Certification: Made in Germany, ISO 9001 certified.
- Warranty: 3 years.
Note: Mixed operation of nominal and safety extra low voltage (SELV) within the actuator is not permitted.
