8-way switch actuator 16A per channel, 4 MDRC C-Load Data secure
Unit price: €240,938-channel KNX Secure actuator with high-quality locking relay, suitable for various applications. Compact design (72 mm), CC component, programmable via ETS5.0 software. Read more
Specifications
Brand:
Meanwell
Article number:
KAA-8R-16S
EAN:
4711232760070
Availability:
In stock (5)
Delivery time:
1-3 working days
Information

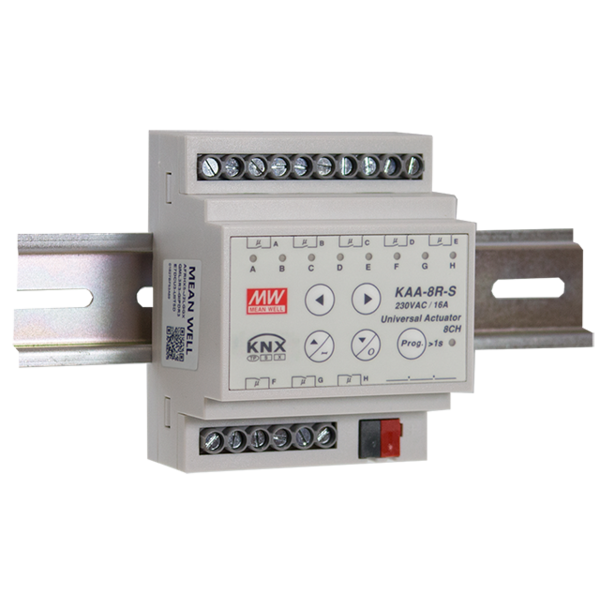

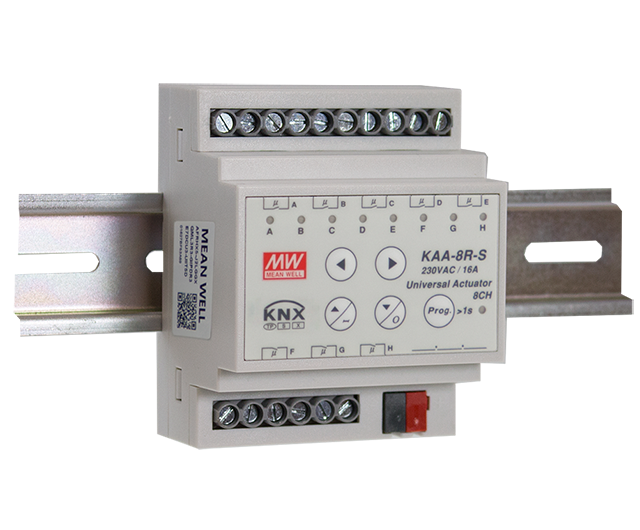

KAA-8R-16 8-Channel KNX Secure Actuator
The KAA-8R-16 is a versatile 8-channel KNX Secure actuator designed for a wide range of applications, including switches, blinds, and other mixed applications. This high-quality device features independent locking relays and is optimized for AX, C-load, capacitive, and inductive loads.
Features:
- Compact design: Only 72 mm wide, easily fits into distribution boards on 35 mm mounting rails.
- KNX Secure: Fully compatible with KNX Secure for enhanced security and reliability.
- Programmable via ETS5.0: Allows for easy configuration and customization via ETS5.0 software.
- Manual operation: Equipped with a push-button for manual operation of the switches.
- Time and scene functions: Supports programmable time and scene functions for advanced automation.
Specifications:
- Channels: 8
- Load per channel: 16A
- Load type: AX, C-load, capacitive, and inductive loads
- Dimensions: 72 mm wide, 4 TE
- Installation: 35 mm mounting rails
The KAA-8R-16 offers reliable performance and versatility for various EIB/KNX applications, making it an essential component for modern automation systems.
