1 fold Switch Actuator AKK compact Flush mounted 16A

0 Review(s)

€66,30 Excl. tax €102,00 Excl. tax
€80,22 Incl. tax €123,42 Incl. tax. Out of stock, but available

Unit price: €66,30 / Piece

Compact flush-mounted switch actuator with 1 channel, 16A, for flexible control of electrical loads via KNX. Ideal for decentralized switching. Read more

Specifications

Brand:

MDT

Article number:

AKK-01UP.03

EAN:

4251916130190

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Datasheet

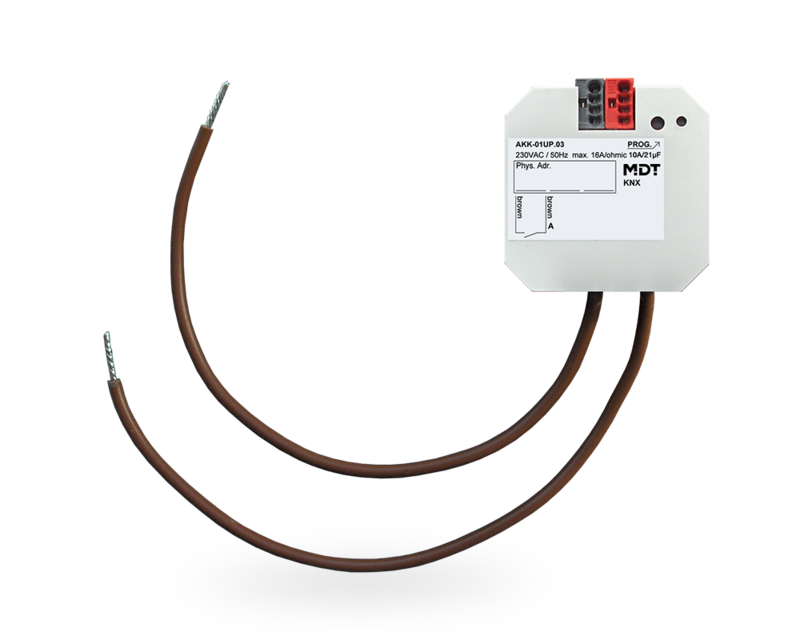

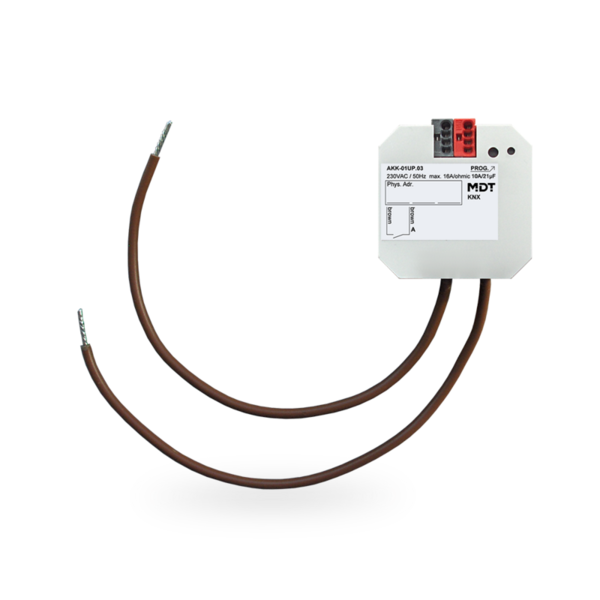

MDT Switch Actuator AKK-01UP.03 - 1-fold, flush-mounted

The MDT Switch Actuator AKK-01UP.03 is a compact flush-mounted switch ideal for switching small to medium loads. With a wide range of features, this actuator provides flexible options for decentralized switching of individual consumers directly from the switch box.

Product Features

NO and NC contact operation for versatile switching options.
Time functions: switch-on and switch-off delays can be set.
Extensive staircase light and impulse functions for optimized energy management.
Status response (active/passive) for each channel.
Logical linking of binary data for complex switching scenarios.
Extended scene functions per channel for customized settings.
Central switching and blocking functions for forced operation.
Adjustable behavior in case of bus voltage failure and recovery.
Flush-mounted installation in an installation box, suitable for dry rooms.
Dimensions: 41 mm x 41 mm x 22 mm.

Technical Specifications

Number of outputs: 1
Switching capacity: 16A (resistive load)
Inrush current: max. 300A/150 µs
Operating voltage: 230V AC
Operating temperature: 0 ... 45 °C
Enclosure: IP20

For project design and commissioning, it is recommended to use the ETS software. The device supports long frames for quick application downloads. MDT offers a 3-year warranty and production is based in Germany, certified according to ISO 9001.
