6-fold flush-mounted interface for contacts with LED output
317,24 zł Incl. tax zł488,06 Incl. tax. Not in stock in our warehouse, but available to order.
Specifications
Information

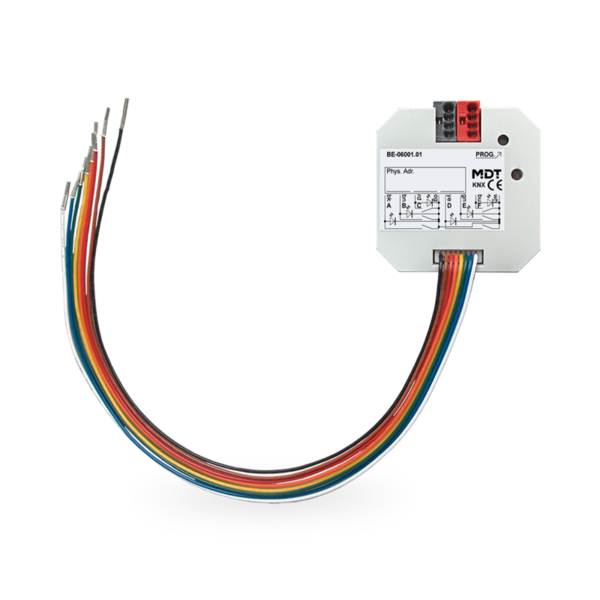

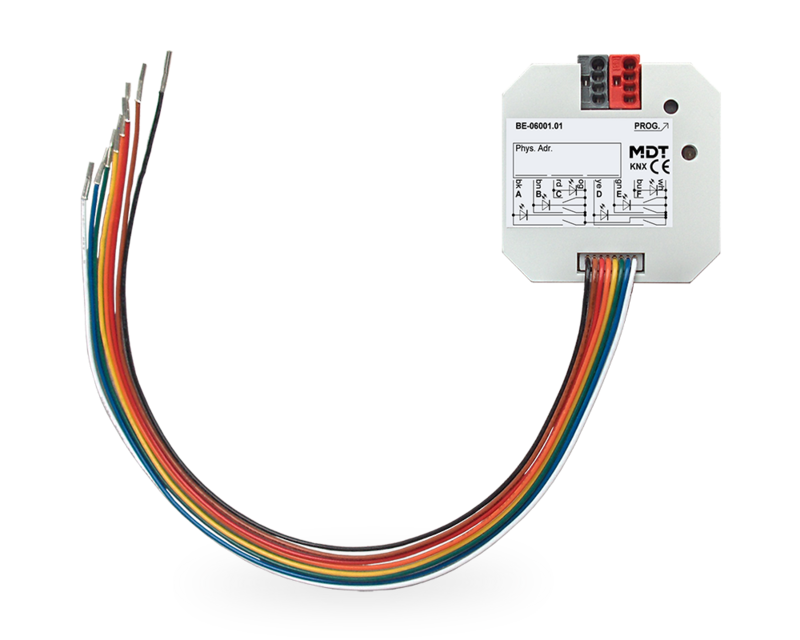

Universal Interface BE-06001.02 - 6-fold, Flush Mounted
The Universal Interface BE-06001.02 enables the integration of conventional switches and contacts into a KNX system, making them "smart". This device is equipped with 6 inputs, each configurable as an LED output with a low current of 1.5 mA. With its extensive logical modules and flexible configuration options, this interface is ideal for various applications within KNX-based home automation.
Product Features:
- Connection for conventional push-buttons or auxiliary contacts
- 6 inputs, each configurable as a 1.5 mA LED output
- Multi-touch function, sends up to 4 values/DPTs on the same or different objects
- Innovative group control with long/extra-long button press
- Four integrated logical modules for interpreting inputs
- NO or NC contact operation, adjustable button press length
- Dimming and shutter function for 1- and 2-button operation
- Forced setting function and switching commands for each output
- Adjustable debouncing time and telegram rate limitation
- Built-in bus coupling unit
- Dimensions: 41 x 41 x 12 mm, flush mounted
Technical Specifications:
| Number of channels | 6 |
|---|---|
| Contact voltage | 3.3VDC internal |
| LED current per channel | ~1mA |
| Specification | KNX interface TP-256 |
| Available software | ETS 5 |
| Permitted wire gauge | KNX bus connection 0.8mm Ø, solid core |
| Power supply | KNX bus |
| Power consumption | typ. <0.25W |
| Permitted cable length | 10m |
| Operating temperature range | 0 to +45°C |
| Protection class | IP 20 |
| Dimensions (WxHxD) | 41mm x 41mm x 12mm |
Important Note: The Universal Interface must be installed in dry rooms and is suitable for flush mounting in an installation box or behind a push button or switch. It is recommended to use the ETS software for project design and commissioning.
