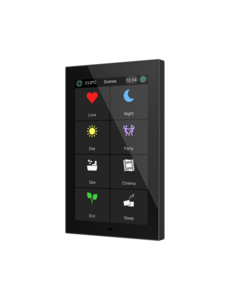

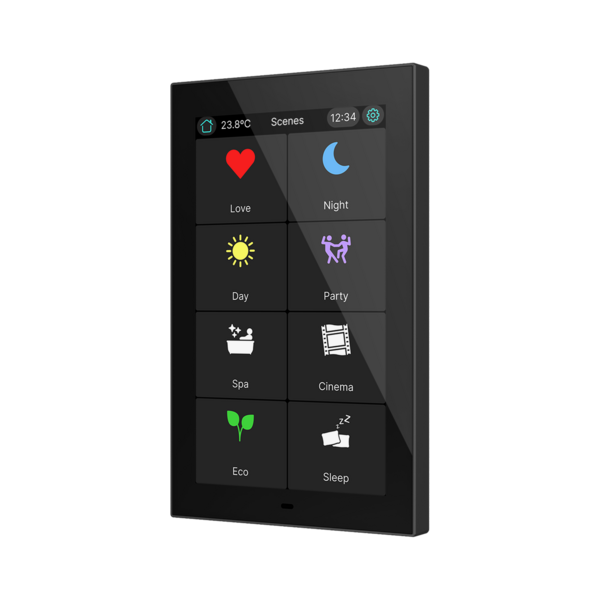

Zennio CX50 KNX Touch Display 5"
€357,29 Incl. tax €439,74 Incl. tax. Not in stock in our warehouse, but available to order.
Specifications
Information
KNX Touch Panel 5"
The CX50 is an advanced 5” KNX touch panel for complete control of homes and buildings. Thanks to its intuitive interface and extensive functionality, it is ideal as a central control unit in any KNX installation.
Key features

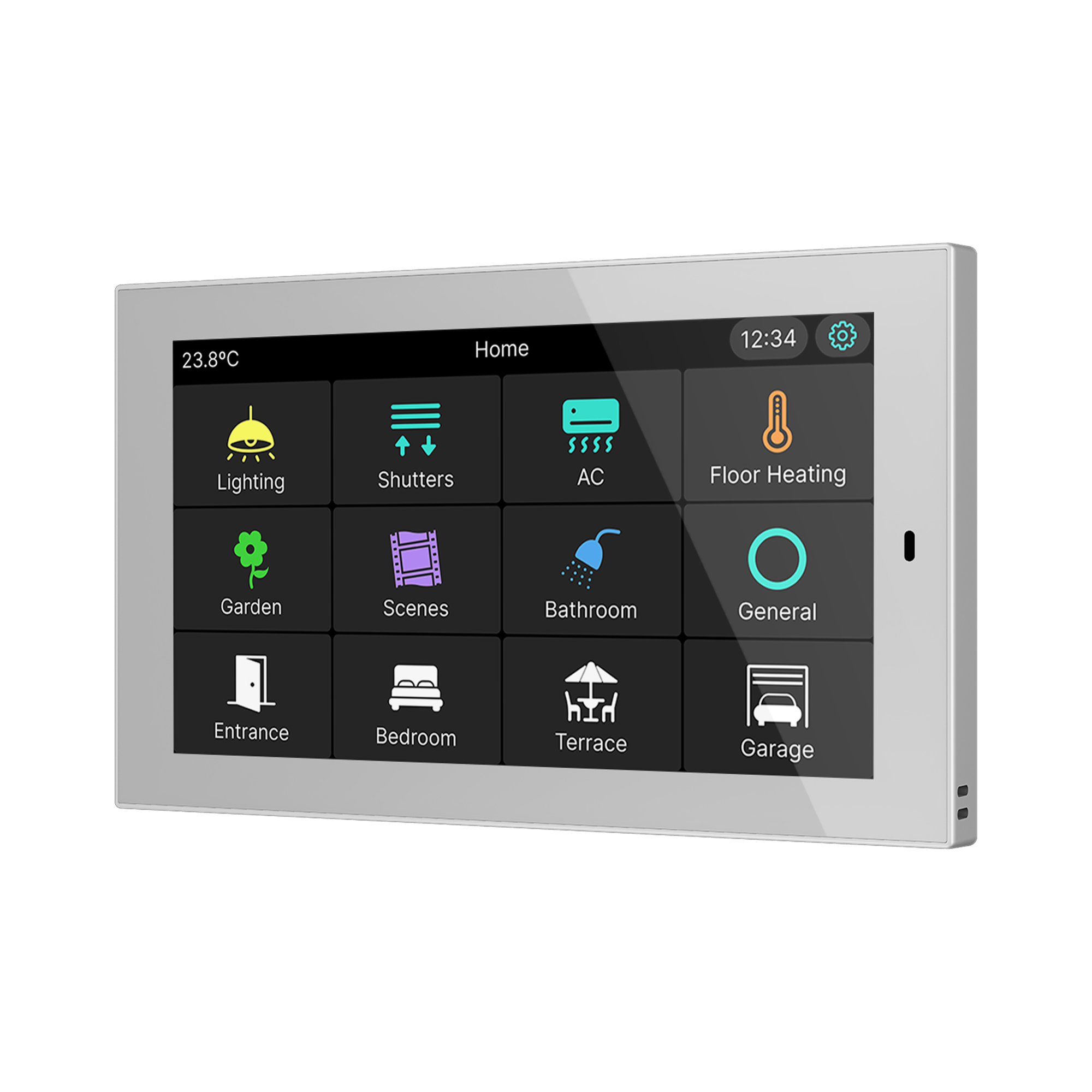

- 5” capacitive touchscreen (horizontal and vertical mounting)
- Up to 12 pages and up to 96 functions
- Integrated temperature, humidity, brightness and proximity sensor

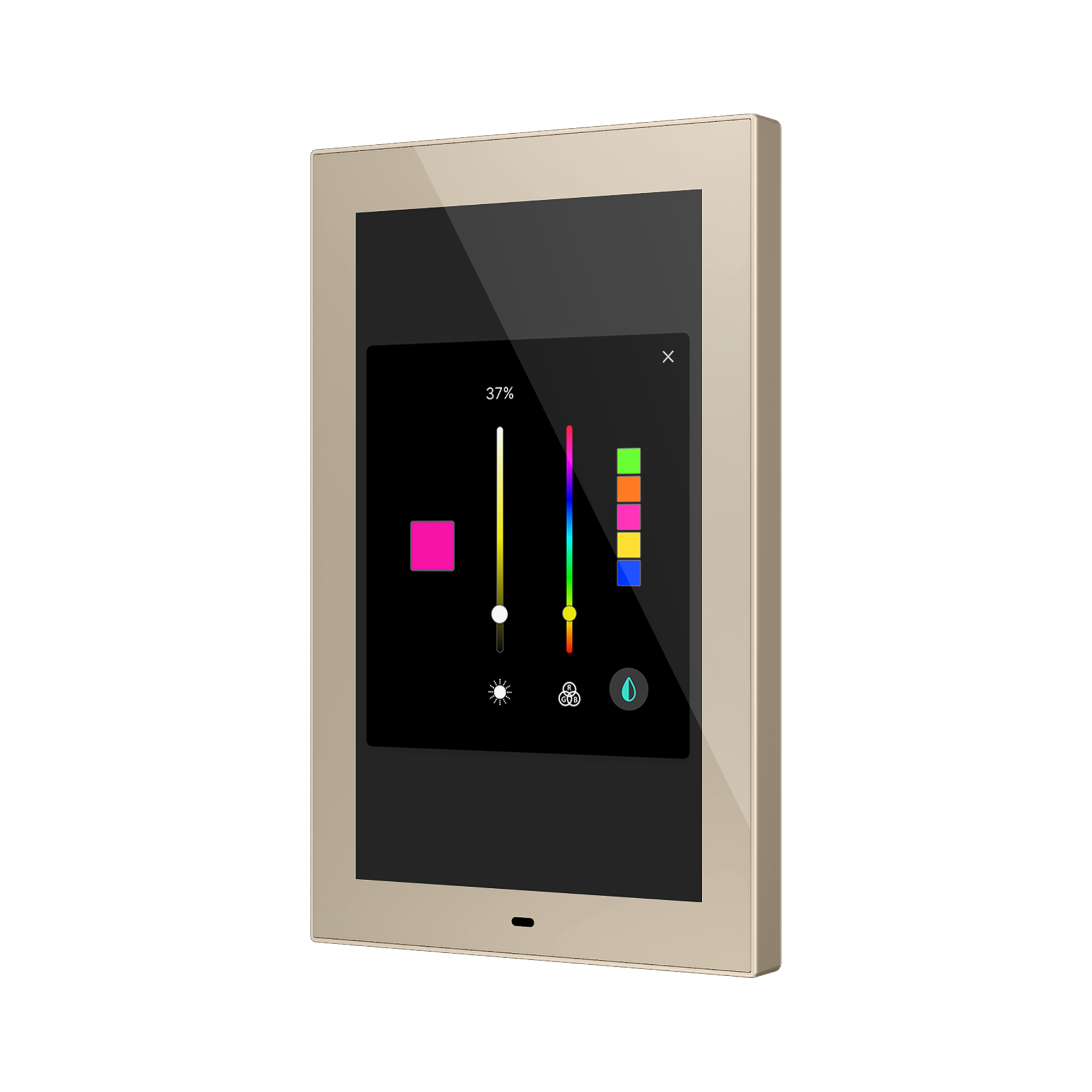

- Lighting control (switching, dimming, RGB(W), TW/HCL)

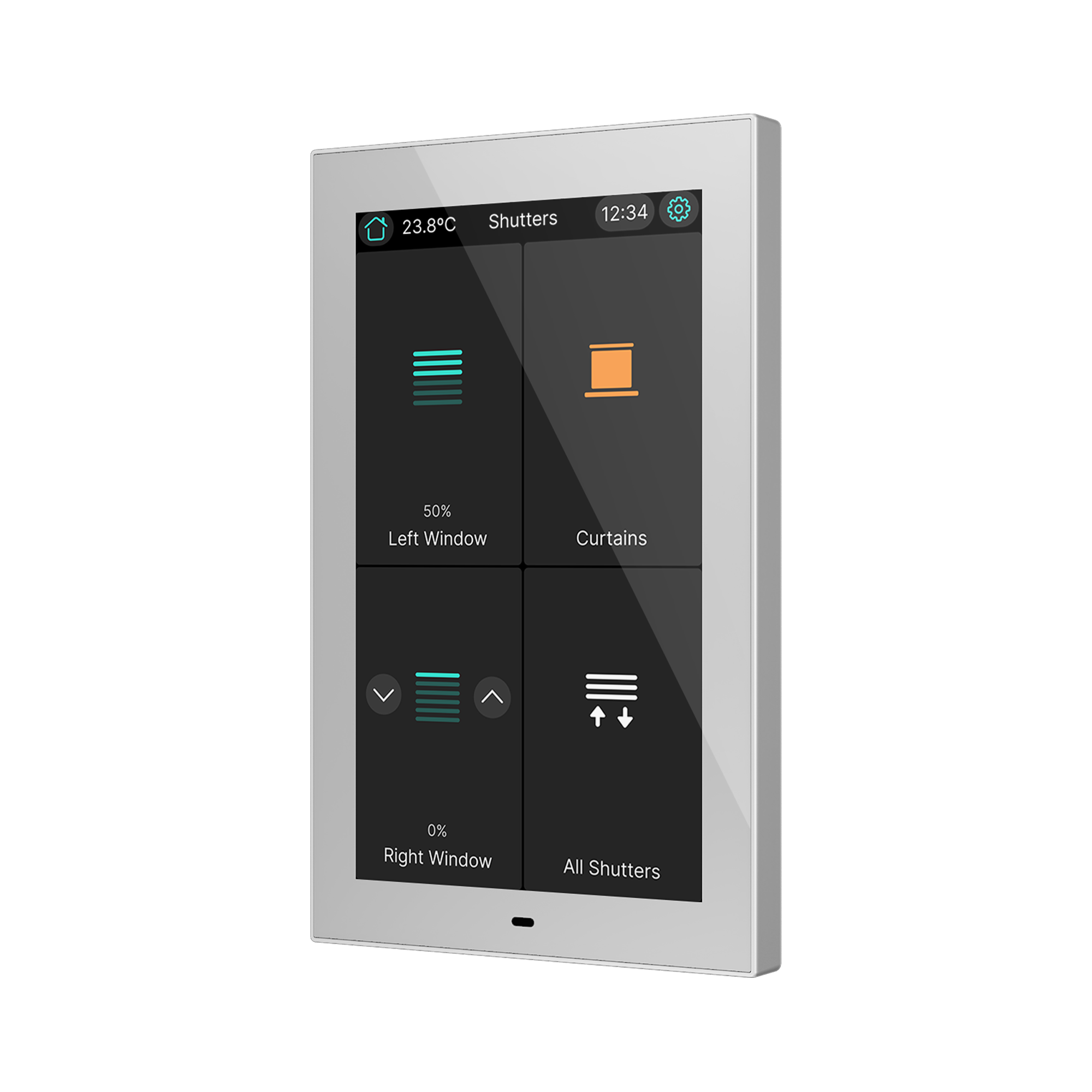

- Control of blinds, shutters, curtains and screens

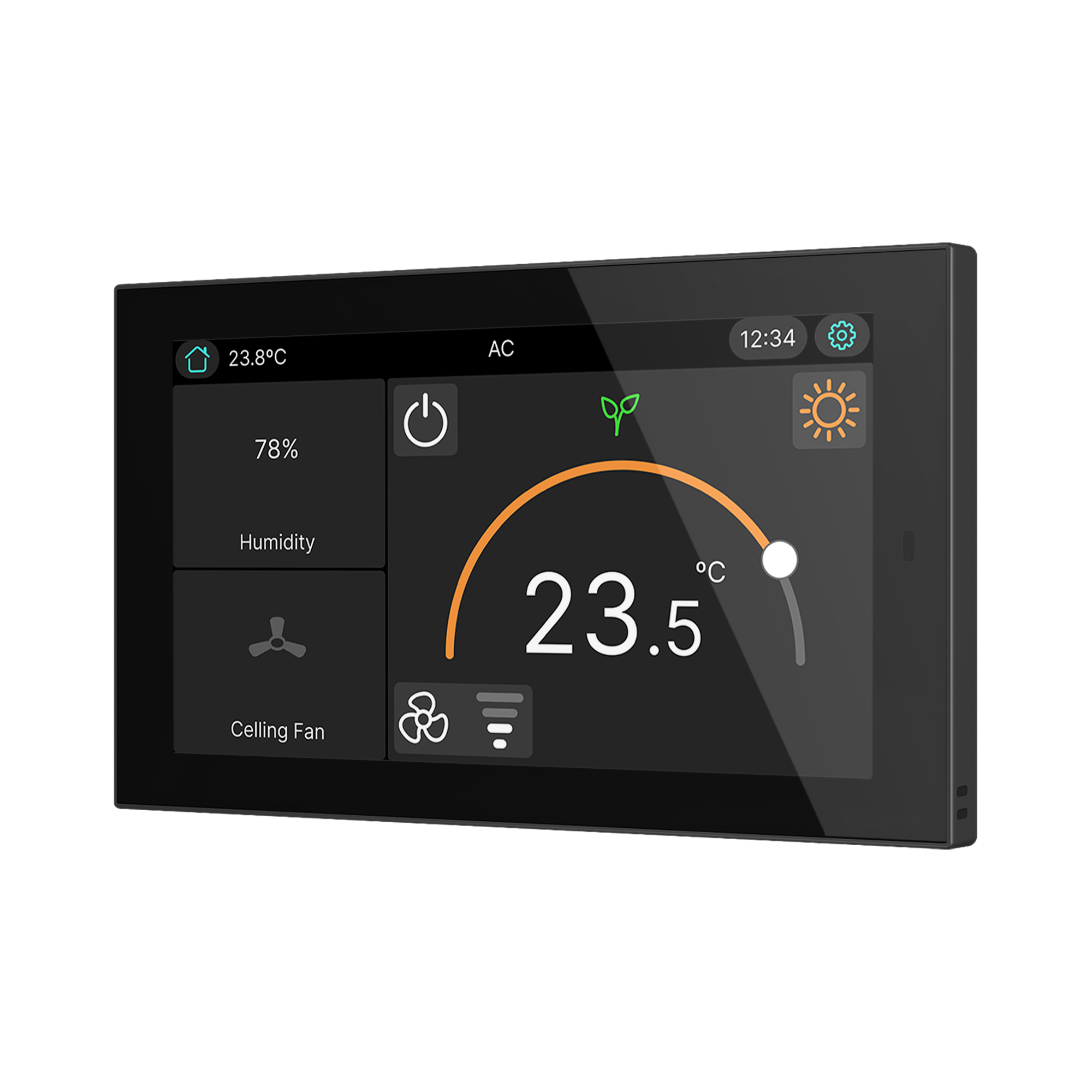

- HVAC control including fan speed and temperature regulation
- PI controller for heating and cooling
- Sliders for setpoints and values
- 4 analogue/digital inputs for push buttons, sensors or motion detectors
- Powered via KNX bus (no additional power supply required)
- KNX Secure support
Functions
- Day/Night mode
- Timers and alarm clock (time server required)
- Pop-up messages and multi-language interface
- PIN code protection
- Hide or lock controls via objects
- Acoustic signals for operation, alarm or doorbell
Technical specifications
- Power supply: KNX bus (21-31 VDC)
- Consumption: approx. 45 mA at 29V DC
- Dimensions: 133.1 x 80.7 x 9.5 mm
- Mounting: flush mounting box
- Protection rating: IP20
- Operating temperature: 0°C to +55°C
- 4 inputs for sensors and push buttons
Colours and variants

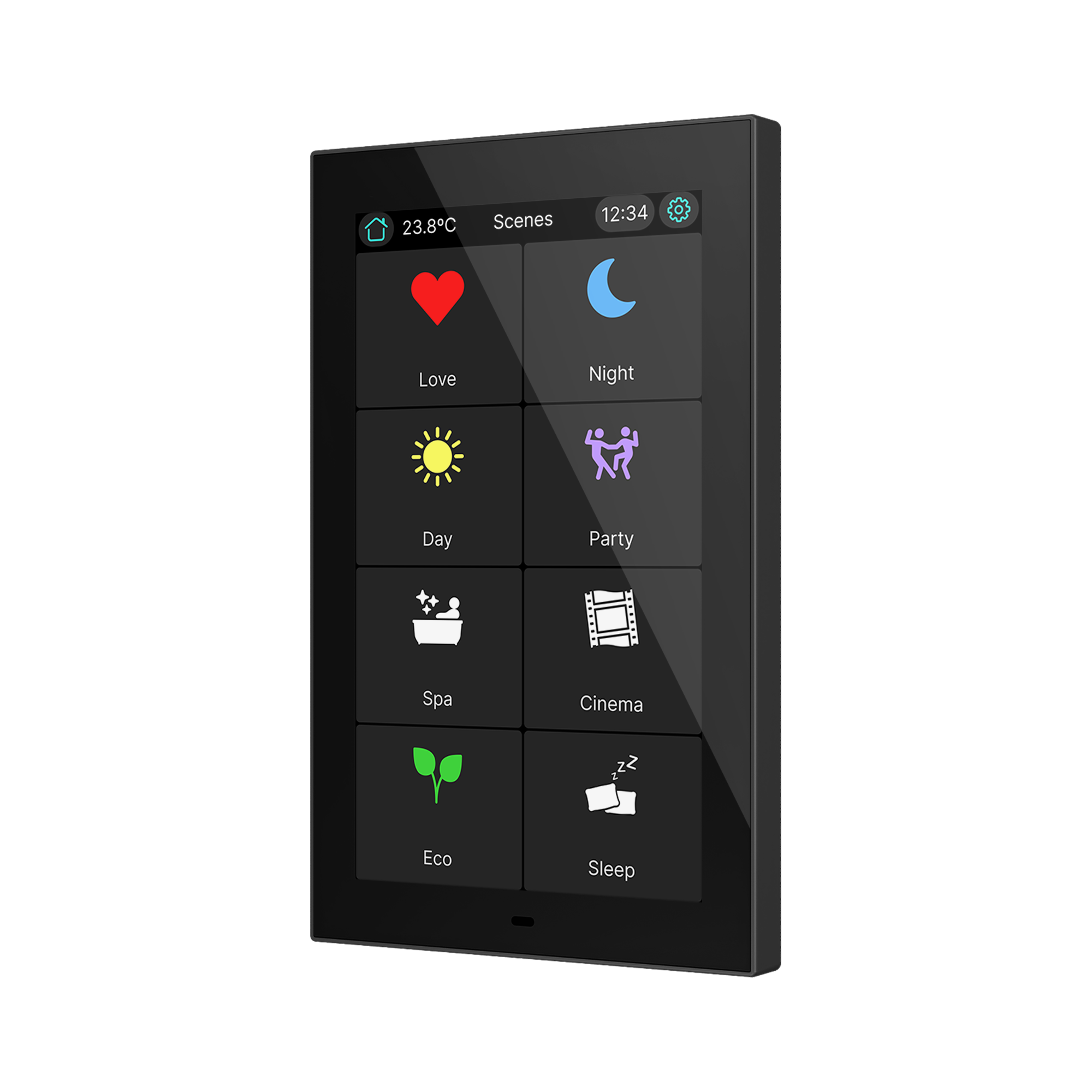

- Anthracite – ZVICX50A – EAN: 8411080812926

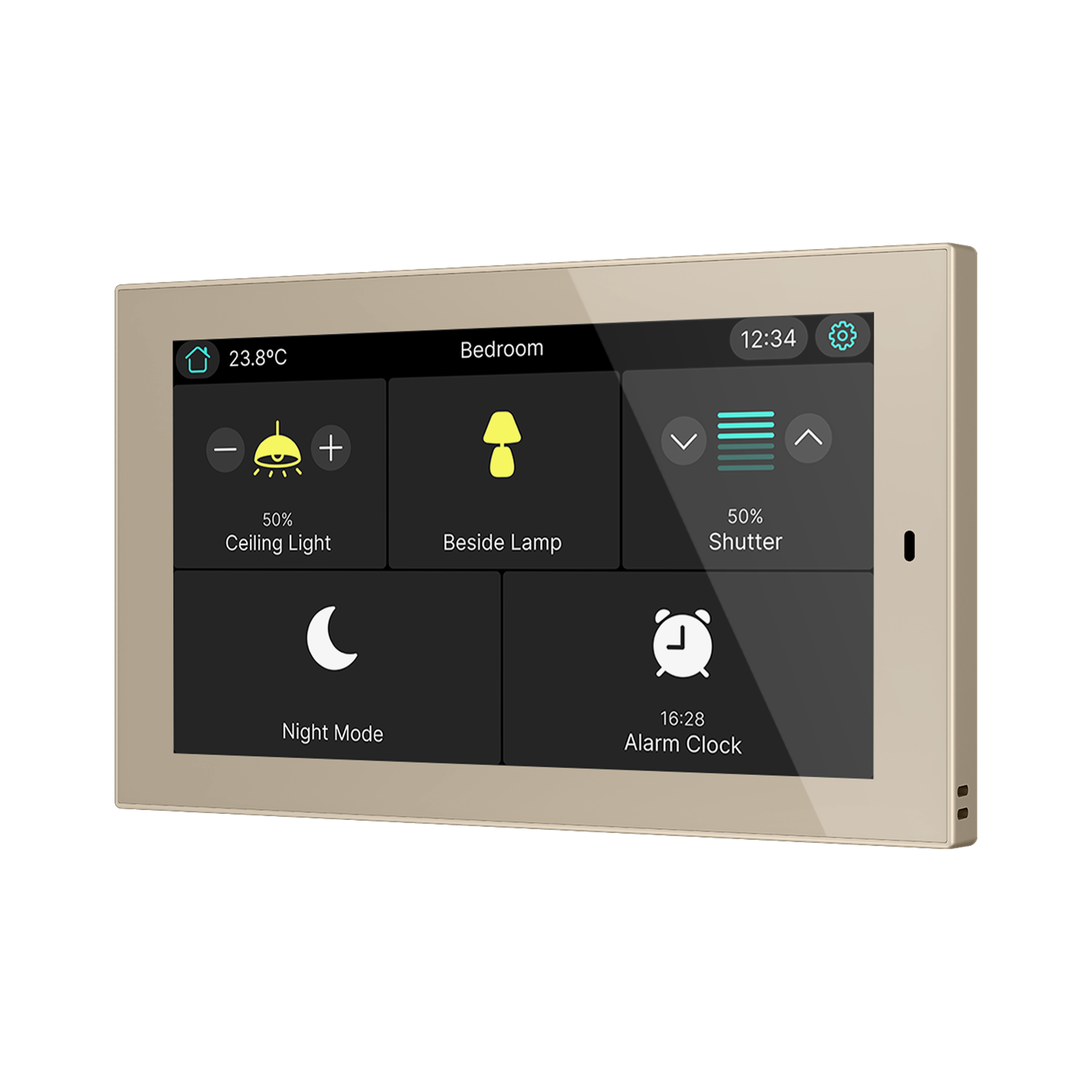

- Champagne – ZVICX50C – EAN: 8411080812957

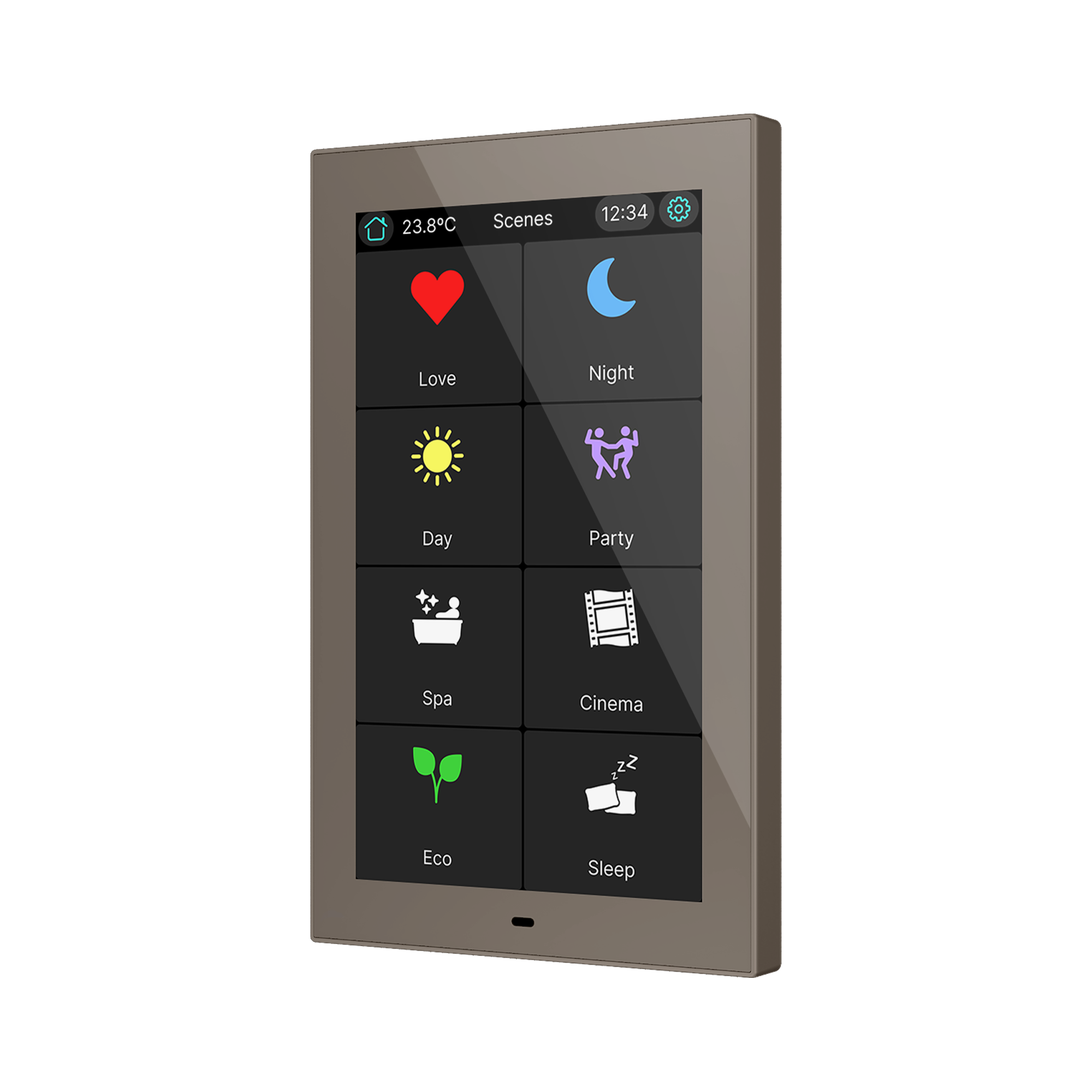

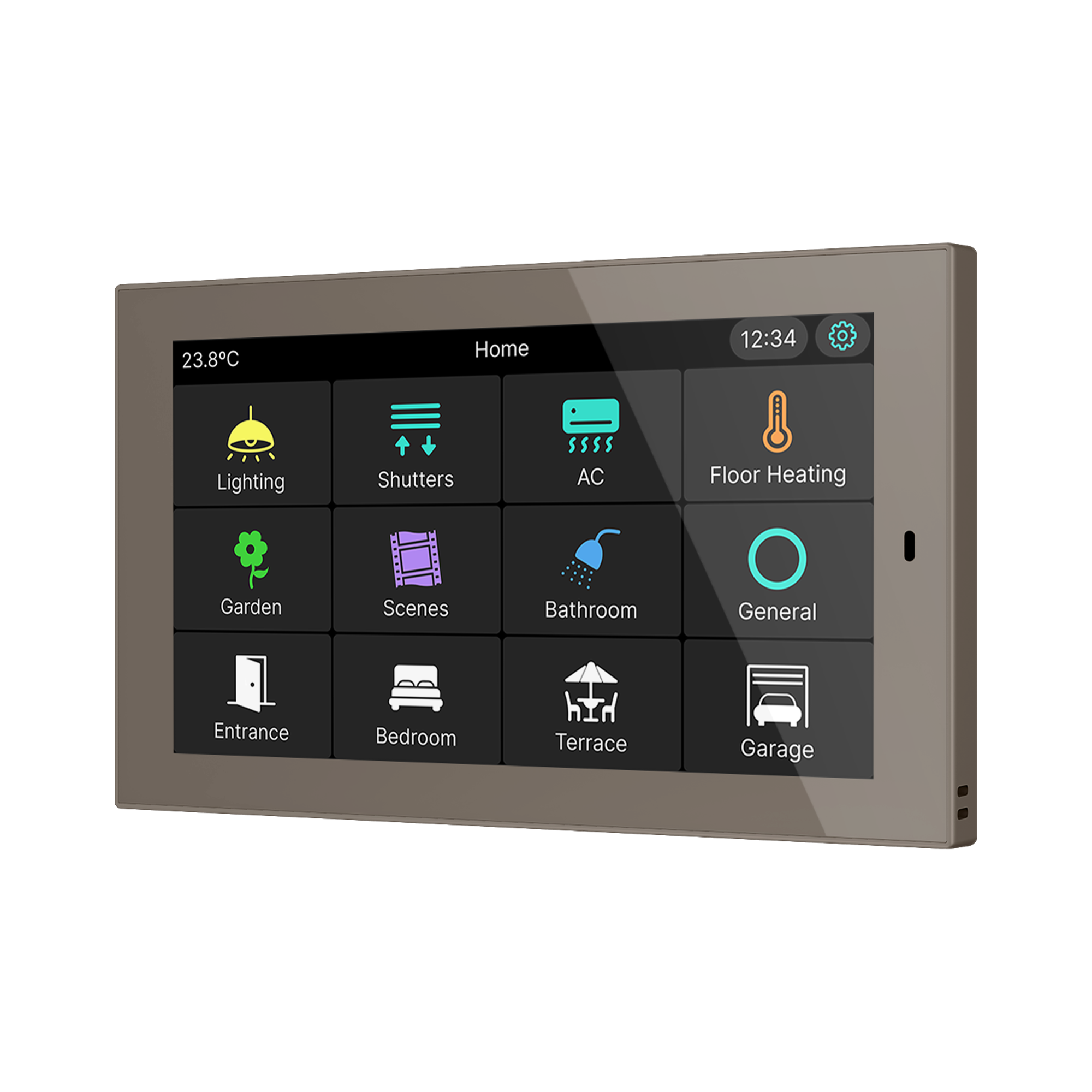

- Mocha – ZVICX50M – EAN: 8435740190384

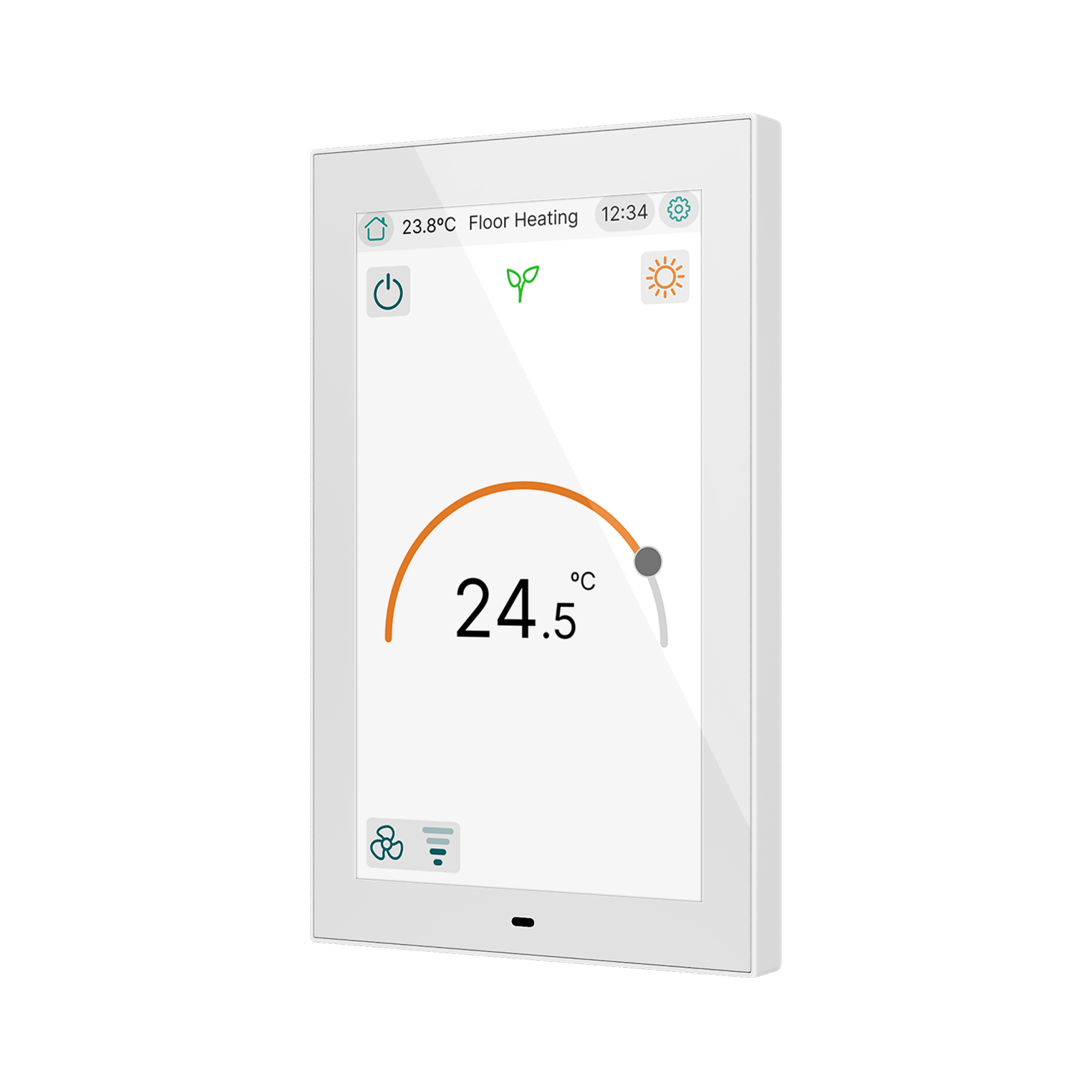

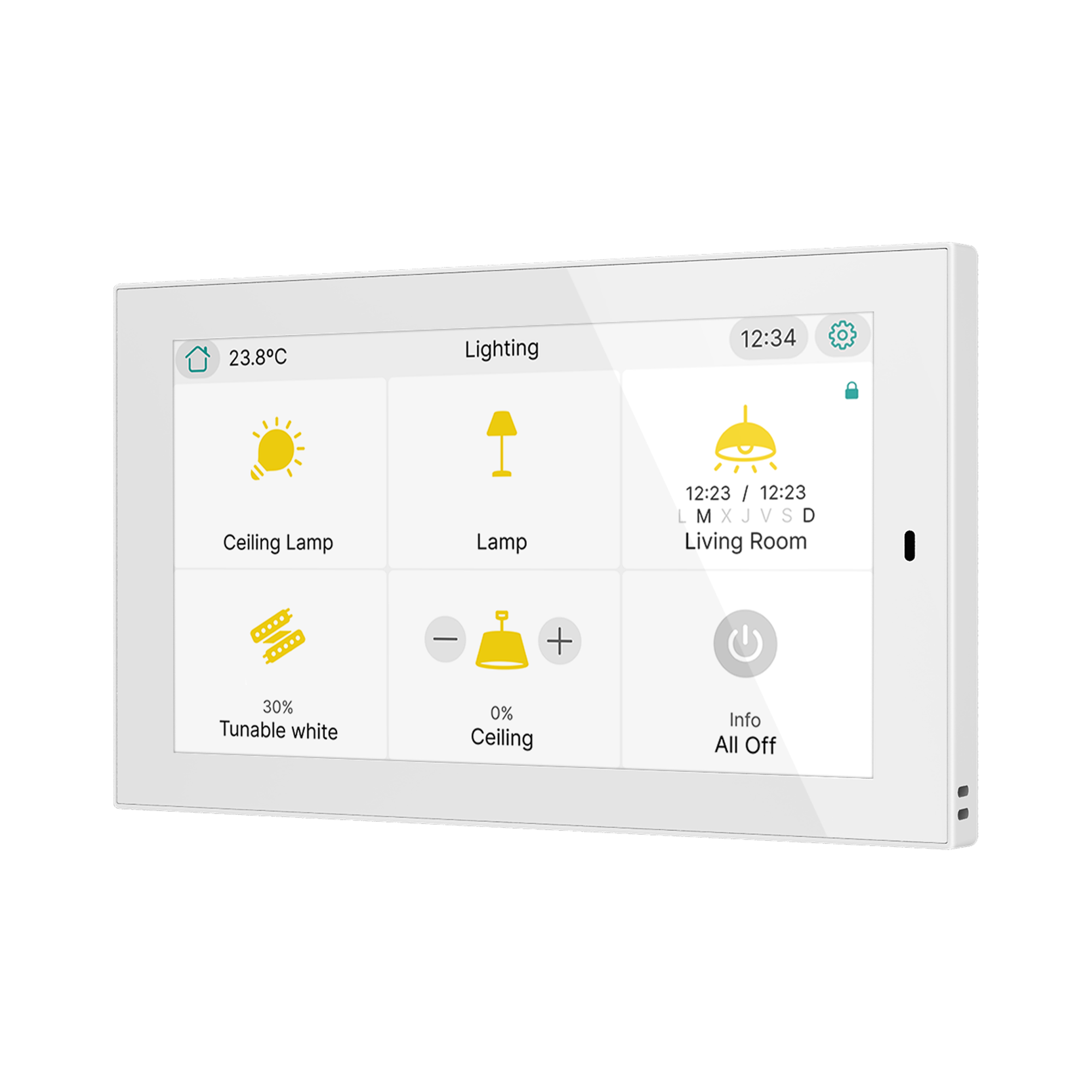

- White – ZVICX50W – EAN: 8411080812940
- Silver – ZVICX50S – EAN: 8411080812933
The CX50 is ideal as a central control panel in smart homes, offices and hotels, offering maximum flexibility within KNX installations.
