Z50 Color capacitive touch panel with a 5" display.
€502,78 Incl. tax €618,80 Incl. tax. Not in stock in our warehouse, but available to order.
Specifications
Information
For more and other downloads, click here

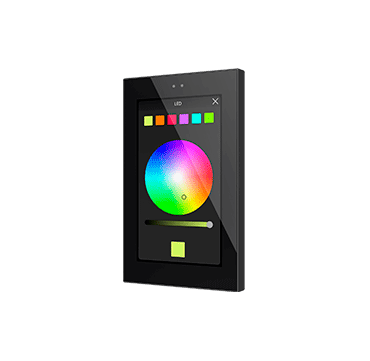

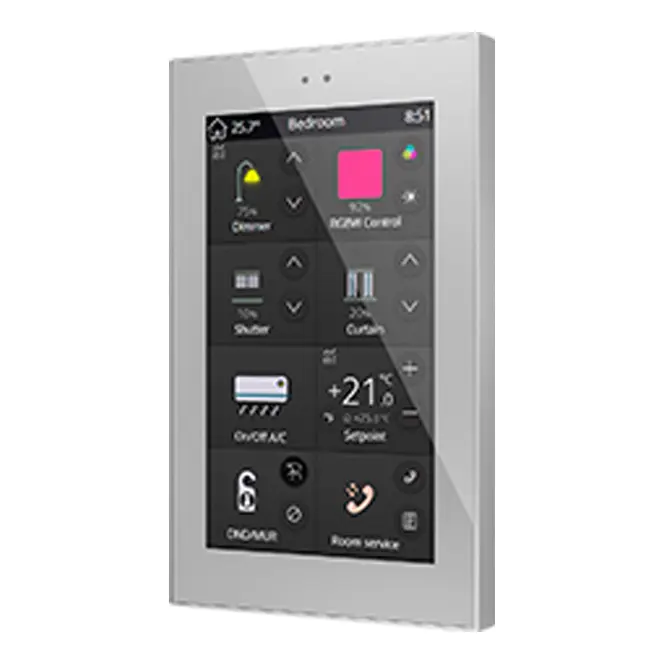

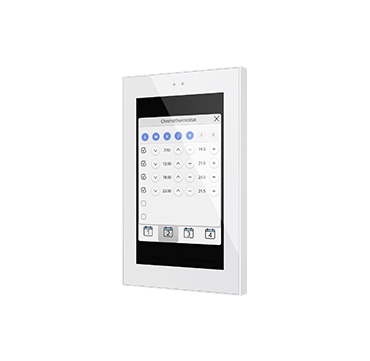

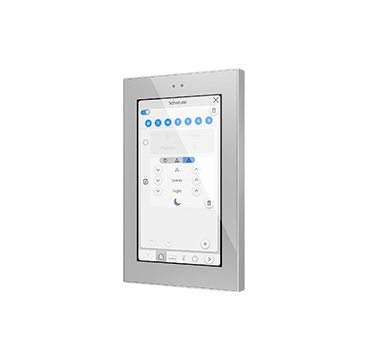

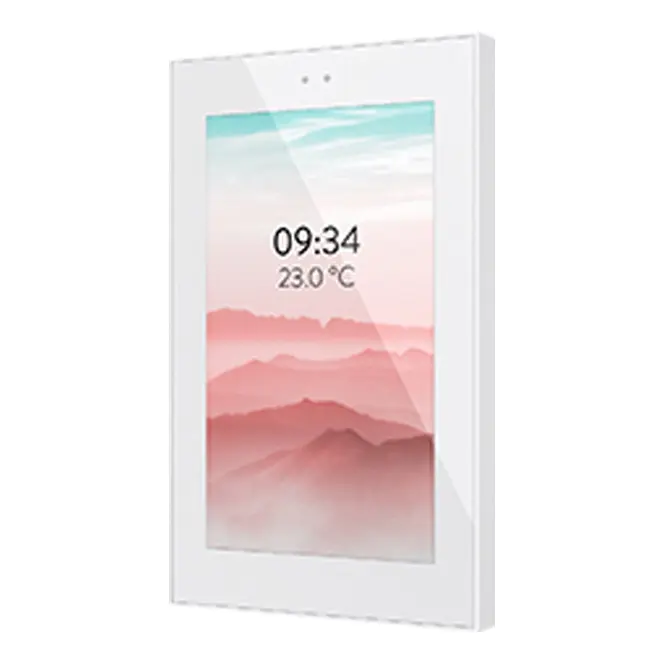

Zennio Z50 - Color Touch Panel with 5" Display
The Zennio Z50 offers an elegant and user-friendly solution for controlling smart installations. Featuring a 5" capacitive touch display (480x854 pixels) and a sleek, minimalist design, this panel is perfect for any environment.
Main Features:
- 5" full-color capacitive touchscreen with a resolution of 480x854 pixels
- Available in white (RAL 9016), black (RAL 9004), and silver (RAL 9006)
- Built-in temperature sensor with high accuracy (+/- 0.5 °C)
- Proximity and light sensor for automatic activation
- 12 fully customizable pages for ultimate control
- 2 analog/digital inputs
- 2 independent thermostats
- Ethernet and USB connections for easy updates
Advanced Licenses (optional):
- Remote Control License: Control your installation via an app or browser
- Video Intercom License: Integration with video intercom systems
- ZenVoice License: Voice control
Technical Specifications:
- Power supply: 24-29 VDC
- Consumption: max. 200 mA (29 VDC)
- Protection class: IP20
- Dimensions: 142.1 x 85.5 x 35 mm (12 mm protruding from the wall)
- Operating temperature: 5 to +45 °C
- Compatibility: European/British back boxes
Important Note:
This touch panel includes a built-in temperature sensor. However, for precise thermostatic control, an external sensor is recommended.
