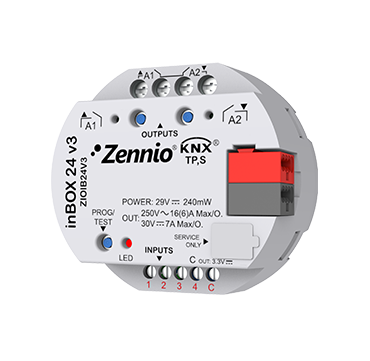

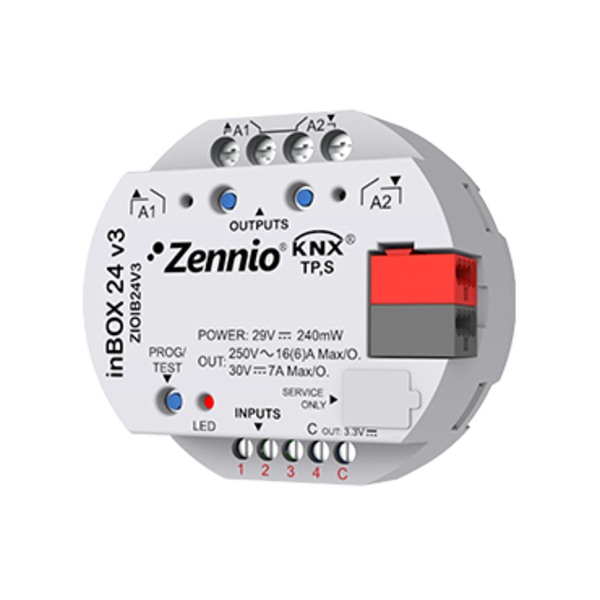

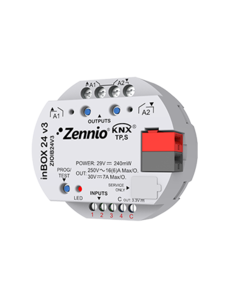

Multi actuator flush, 2 outputs (16A C-Load) & 4 analog-digital in.
€130,28 Incl. tax €175,11 Incl. tax. Out of stock, but available
Specifications
Information
Multifunctional KNX Actuator with 2 Outputs and 4 Analog-Digital Inputs
This multifunctional actuator is designed for flexible automation solutions in smart home systems. With 2 configurable outputs (16 A C-Load) and 4 versatile analog-digital inputs, this actuator offers comprehensive functions for climate control, lighting, and automation tasks.
Main Features
- 2 configurable outputs: adjustable as a shutter channel or as individual outputs for lighting or other electrical applications.
- 4 analog-digital inputs that can be configured as:
- Binary inputs: for example, for switch and button status.
- Temperature sensors: supports NTC temperature probes with customizable resistance curves for precise temperature readings.
- Motion sensors: detects presence or motion in the area.
- Manual operation with an integrated button and LED status indicator for direct control.
- Supports 10 independent logic functions for complex automation tasks, such as lighting scenes, timed events, and logical operations (AND, OR, XOR, etc.).
- Equipped with 4 integrated thermostats for temperature regulation and advanced climate control across multiple zones.
- 2 master light functions to centrally manage lighting, ideal for central lighting scenarios and dynamic light control.
- Automatic data retention during KNX bus failure to preserve configuration and status data without loss.
- KNX BCU (TP1-256) for direct integration into KNX systems, compatible with various KNX devices and protocol-compliant.
- Compliant with CE, UKCA, and RCM directives for reliable and safe operation in different regions.
Technical Specifications
- Power supply voltage: 29 VDC (typical), with an operating range of 21-31 VDC for stable performance.
- Maximum current consumption: 4.4 mA at 29 VDC; 10 mA at 24 VDC for energy-efficient use.
- Operating temperature: 0 .. +55 °C, suitable for various environments and applications.
- Storage temperature: -20 .. +55 °C, ensures durability under different storage conditions.
- Operating humidity: 5 .. 95% without condensation, for optimal performance in high and low humidity.
- Storage humidity: 5 .. 95% without condensation, for safe storage and transportation.
- Protection class: IP20, for indoor installation without direct exposure to moisture.
- Dimensions: Diameter 51.4 mm, height 26.6 mm for compact installation in standard mounting boxes.
- Weight: 58 g, lightweight and easy to install.
- Housing material: PC FR V0 halogen-free, provides enhanced fire safety.
- Cable cross-section: Supports 0.5-4 mm² (IEC) / 20-12 AWG (UL), compatible with various installation standards.
- Maximum response time: 10 ms, for fast response during operation.
- Mechanical lifetime: Minimum 3,000,000 cycles, ensuring long lifespan and reliability.
- Electrical lifetime: Minimum 100,000 cycles at 8 A or 25,000 cycles at 16 A (VAC).
Important Note
This product is designed for indoor use and requires a KNX configuration tool to be fully integrated into a KNX automation system. It is recommended that installation and configuration be performed by a qualified technician to ensure optimal functionality and safety.
