Zennio Flat AmbienT Temperature Sensor

44,13 Excl. tax €56,58 Excl. tax
€53,40 Incl. tax 68,46 Incl. tax.
Out of stock, but available
Unit price: €44,13 / Piece

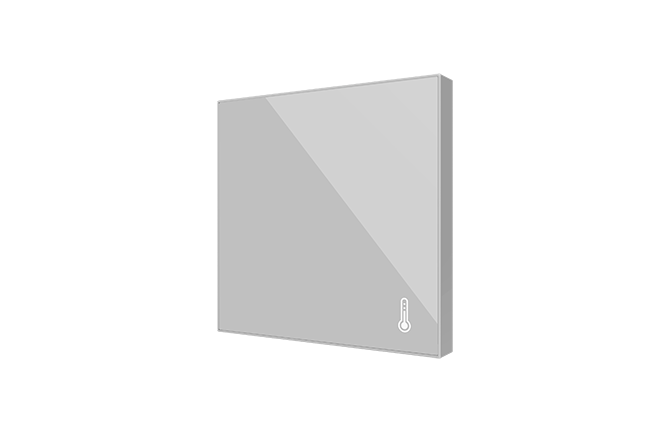

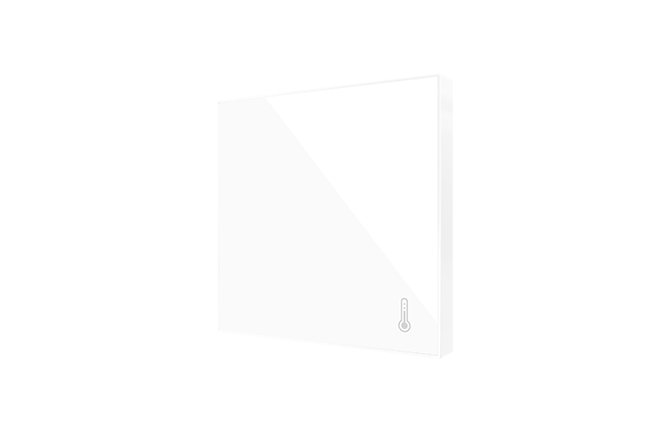

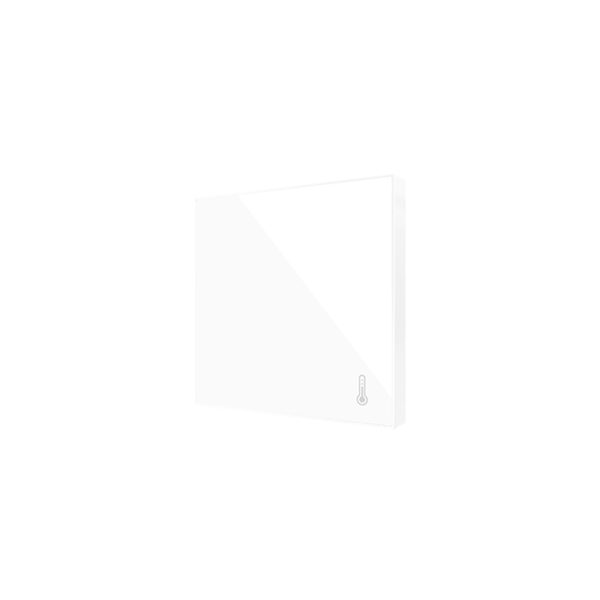

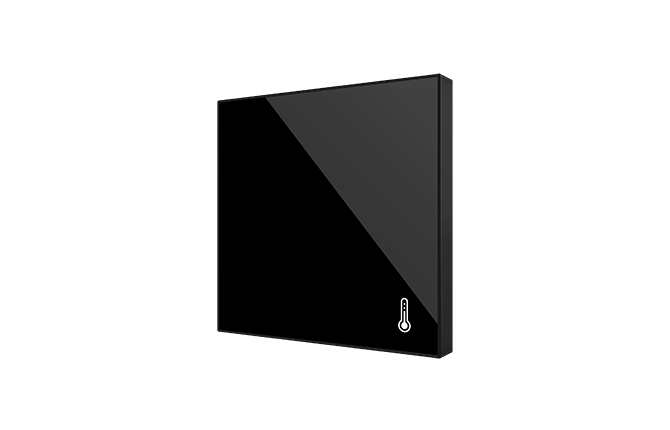

Sleek Zennio temperature sensor for the Flat series, maintaining aesthetic consistency. Flush mount with 0.5 ºC accuracy at 25 ºC. Available in white, glossy white, silver, and black. Read more

Specifications

Brand:
Zennio
Article number:
ZACFATW
EAN:
8411080792129
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Manuel

Zennio Flat Temperature Sensor (Accessory) Flat AmbienT

The Zennio Flat Temperature Sensor combines accurate temperature measurement with a sleek design. This sensor is designed to maintain aesthetic consistency in your installation and fits into a standard back box. Available in white, glossy white, silver, and black.

Key Features

  • Measurement accuracy: 0.5 ºC at 25 ºC
  • Dimensions: 82 x 82 x 24.8 mm
  • Installation: Flush mount in standard back box

General Specifications

Operating Temperature 0 to +55 ºC
Storage Temperature -20 to +55 ºC
Operating Humidity 5 to 95%
Storage Humidity 5 to 95%
Safety Class Class III
Protection Type IP20, for clean environments
Weight 68 g
Material PC+ABS FR V0 halogen-free
Thermistor Value 6.8 kΩ at 25 ºC
Connection Method Pluggable screw terminal block
Cable Cross-Section 0.2-1.5 mm² (IEC) / 28-14 AWG (UL)

Note: This sensor should be connected to an input on a compatible Zennio device with inputs. Check compatibility in the input device's datasheet.
