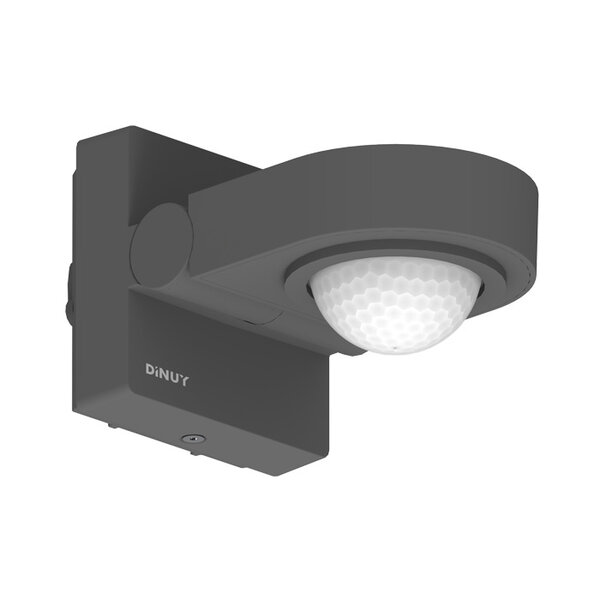

KNX Motion/Presence Detector Wall/Ceiling 270º
€201,11 Incl. tax €357,54 Incl. tax. Out of stock, but available
Specifications
Information
Link to DINUY Website (English)
DINUY KNX 270° Motion/Presence Detector – Wall & Ceiling
Available Variants

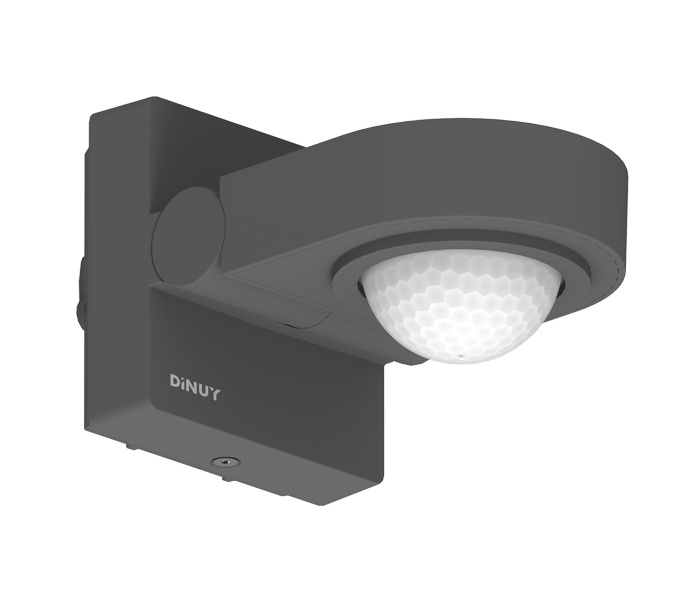

Item No.: DM KNT B1N – Black

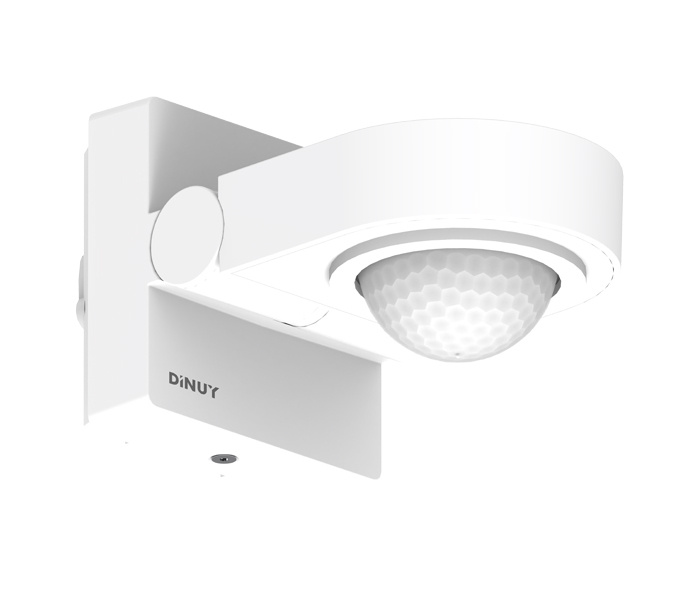

Item No.: DM KNT B1B – White

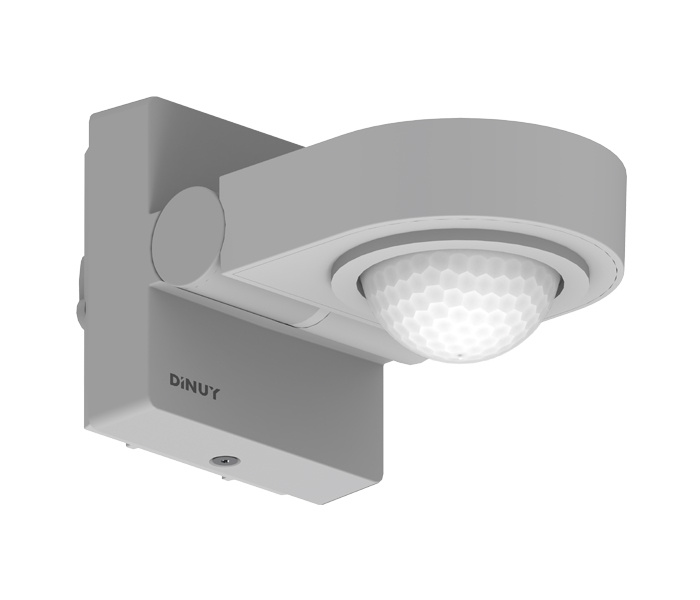

Item No.: DM KNT B1P – Grey
Product Description
The DINUY KNX 270° Motion/Presence Detector (DM KNT B1N / DM KNT B1B / DM KNT B1P) is a high-performance KNX sensor designed for wall or ceiling installation. Equipped with advanced PIR technology, it provides reliable motion and presence detection, lighting control, HVAC integration and constant light regulation. Thanks to its elegant design and wide detection angle, the device is ideal for indoor and outdoor areas such as garages, façades, loading docks or semi-covered spaces. With six motion detection channels and one constant light control channel, this sensor is perfectly suited for professional building automation environments.
Main Features
- 270° detection angle with dual PIR sensors for maximum coverage
- Suitable for wall, ceiling and corner mounting (DM ACC B1X accessory required)
- Configurable as motion detector, presence detector, constant light controller or twilight switch
- 6 motion detection channels + 1 channel for constant brightness control
- Supports lighting control, HVAC control and presence monitoring
- Master/Slave functionality for extended detection areas
- Automatic or semi-automatic operating modes
- 3 adjustable sensitivity levels per PIR sensor
- Individual PIR sensors can be disabled
- Detection LED can be disabled
- Constant dimming of up to 4 groups
- Integrated light sensor and temperature sensor
- Full configuration via ETS5 or later
Technical Data
| Product References | DM KNT B1N (Black), DM KNT B1B (White), DM KNT B1P (Grey) |
| EAN Codes | 8422447018479 / 8422447018462 / 8422447018486 |
| Power Supply | 21–32 VDC (KNX TP1) |
| Power Consumption | < 7 mA |
| Detection Channels | 6 + 1 constant brightness control channel |
| Detection Angle | 270° |
| Mounting Height | Approx. 2.5 m |
| Coverage Diameter | Up to 18 m |
| Time Settings | 1 s – 60 min |
| Operating Temperature | -20 °C to +55 °C |
| Sensors | Light sensor, temperature sensor |
| KNX Medium | TP1 |
| Standards | KNX Standard 2.0 / EN60669-1 / EN60669-2-1 / EN60669-2-3 |
| Directives | 73/23/EEC (Safety), 204/108/EC (EMC) |
| Optional Accessory | DM ACC B1X – Corner mounting adapter |
Important Notes
- This device includes a temperature sensor but does not contain a built-in thermostat controller.
- Corner installation requires the DM ACC B1X accessory.
- Full functionality is only available when configured via ETS5 or later.
- For outdoor installations, avoid direct sunlight and exposure to rain.
