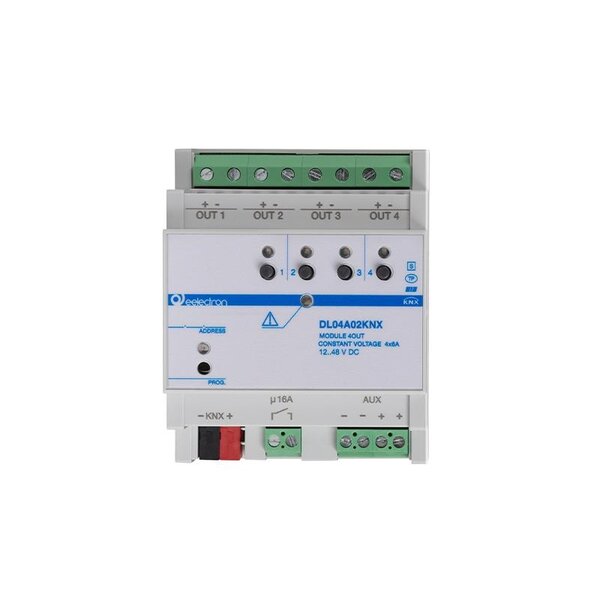

KNX LED Dimmer 4-Channel RGB/RGBW – DIN 12–48 V DC

Name: eelectron KNX LED Dimmer 4-Channel RGB/RGBW – DIN 12–48 V DC
Brand: eelectron
Price: 185.00 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€185,00 Excl. tax €328,00 Excl. tax
€223,85 Incl. tax €396,88 Incl. tax. Out of stock, but available

Unit price: €185,00 / Piece

KNX LED dimmer (CV) for LED strips 12–48 V DC with 4 channels in RGB, RGBW or 3+1 mode. Up to 6A per channel, with overtemp, reverse-polarity and overload protection. Includes 16A C-load relay and status LEDs. Read more

Specifications

Brand:

eelectron

Article number:

DL04A02KNX

EAN:

8054144522791

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

This device belongs to the A-Series.

Link to eelectron website (English)

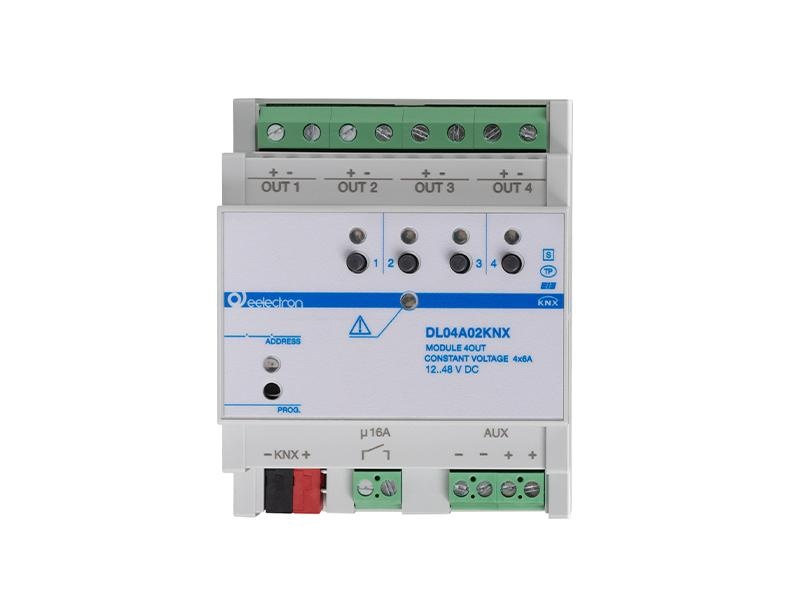

KNX LED Dimmer DIN 4-Channel – RGB/RGBW – 12–48 V DC (CV)

Article number: DL04A02KNX

The DL04A02KNX is a KNX LED dimmer designed for constant voltage (CV) LED strips operating between 12–48 V DC. It provides flexible control with 4 independent channels or can be configured as RGB, RGBW or 3+1. Each channel supports up to 6 A and includes comprehensive electronic protection features.

The device integrates a 16A C-load relay, which must be connected to one of the external power supply cables. In case of an output fault, the module automatically disconnects the external supply. Four local buttons with status LEDs and a dedicated fault indicator LED are available on the front panel.

Protection features include over-temperature, reverse polarity, overcurrent (with non-replaceable internal 12A-T fuse), and short-circuit detection on each channel. The PWM outputs support frequencies of 200 / 260 / 400 Hz for smooth dimming control.

Technical specifications:
– 4 dimming channels for 12–48 V DC LED strips (CV)
– Max. 6 A per channel
– RGB / RGBW / 3+1 configurations
– PWM frequencies: 200 / 260 / 400 Hz
– Over-temperature, reverse polarity, overcurrent and short-circuit protection
– Internal 12A-T fuse
– 16A relay 230 V AC (C-load, 140 µF, 120 A peak / 20 ms)
– Manual control via 4 front buttons with status LEDs
– Fault LED (over-temperature, reverse polarity, low AUX voltage)
– AUX power input: 12–48 V DC, max. 24 A
– KNX bus supply: 21–32 V DC, consumption < 5 mA
– DIN-rail installation (4 modules), IP20 enclosure
– Operating temperature: –5 °C to +45 °C
– Relative humidity: up to 90% (non-condensing)

This device is part of the Eelectron A-Series, designed for specialised KNX lighting and interface applications. See related products for additional variants.
