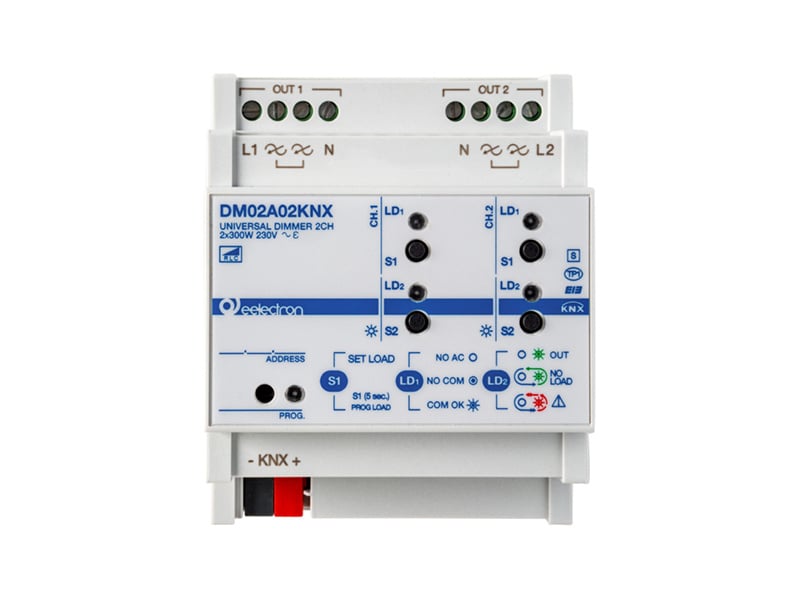

Universal 2x300W KNX Dimmer – RC/L (RLC), Auto Detection

Name: eelectron Universal 2x300W KNX Dimmer – RC/L (RLC), Auto Detection
Brand: eelectron
Price: 185.00 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€185,00 Excl. tax €328,00 Excl. tax
€223,85 Incl. tax €396,88 Incl. tax. Out of stock, but available

Unit price: €185,00 / Piece

Universal 2x300W KNX dimmer with automatic load detection for RC/L (RLC) types. Ideal for LED, halogen, CFL and electronic or ferromagnetic transformers. Channels operate independently or linked for higher loads. Read more

Specifications

Brand:

eelectron

Article number:

DM02A02KNX

EAN:

8054144521107

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

This device belongs to the A-Series.

Link to Eelectron website

Universal 2x300W KNX Dimmer – RC/L (RLC), Auto Detection

Article number: DM02A02KNX

This universal KNX dimmer with two 300W channels supports both trailing edge (RC) and leading edge (L) control and features automatic load detection for optimal compatibility with LED, halogen, CFL and electronic or ferromagnetic transformer loads. The two channels can operate independently or be linked for higher power output up to 600W.

The device automatically identifies the connected load type and adjusts the dimming curve for stable and flicker-free operation. With support for both electronic and ferromagnetic transformers, the dimmer is suitable for a wide range of residential and commercial lighting installations.

For LED or CFL loads, ETS parameters and the DimmerLoadTester software help determine the maximum number of lamps based on peak current and dimming behaviour.

Technical specifications:
– 2 dimming channels 300W (600W linked)
– Supports RC (trailing edge) & L (leading edge) – RLC compatible
– Automatic load detection for optimal dimming performance
– Supports LED, halogen, CFL, electronic/ferromagnetic transformers
– Minimum load depends on lamp/driver used
– KNX bus supply: 21–32 V DC, consumption ≤ 10 mA
– Mains supply: 230 V AC, 50/60 Hz
– Power dissipation: max. 3.4 W (1.7 W per channel)
– Standby consumption (output OFF): max. 2 W (1 W per channel)
– Protections: over-temperature, over-current, incorrect load, internal fuse
– Max. wire cross-section: 2.5 mm²
– Housing: PC-ABS, 4 DIN modules, IP20
– Operating environment: indoor, –5 °C to +45 °C (derating applies)

This model is part of the Eelectron A-Series and complements the 4-channel universal KNX dimmer, providing a complete solution for advanced lighting control. See Related Products for additional variants.
