KNX dimmer 4 channels 1–10 V | 4× relays 16 A
€180,00 Excl. tax
€320,00 Excl. tax
€217,80 Incl. tax €387,20 Incl. tax. Out of stock, but available
€217,80 Incl. tax €387,20 Incl. tax. Out of stock, but available
4-channel KNX dimmer with 1–10 V outputs and 4 relays for electronic ballasts. Supports single channel, tunable white, RGB and RGBW, with scenes, logic and energy-saving functions. Read more
Specifications
Brand:
eelectron
Article number:
DM04E01KNX
EAN:
8054144524986
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Due to the holidays, orders may be delayed and pickup is not possible.
Information
Link to eelectron website (English)

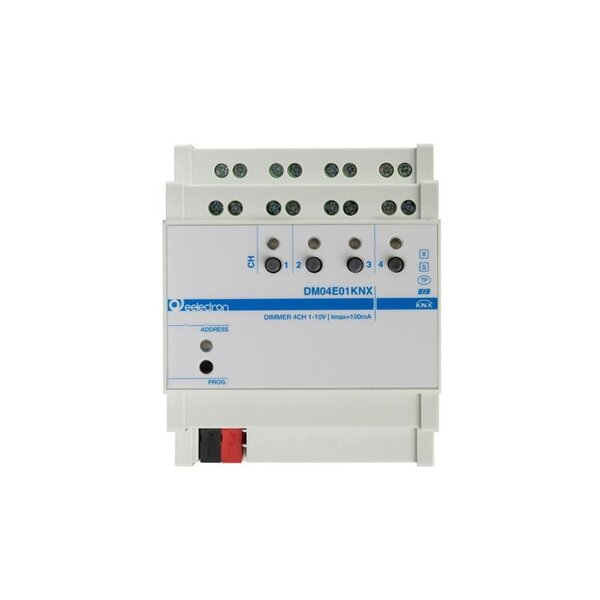

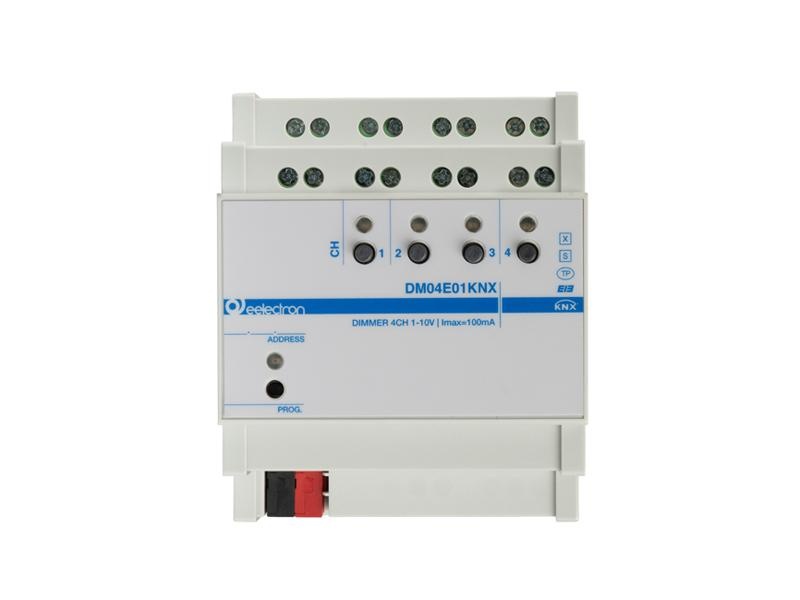

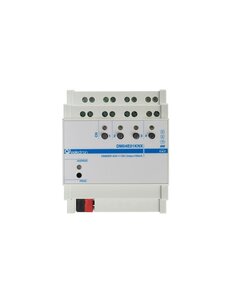

KNX dimmer 4 channels 1–10 V | 4× relays 16 A
Art. No.: DM04E01KNX
This 4-channel KNX dimmer is designed for controlling electronic ballasts and LED drivers via a 1–10 V control signal. The device operates without an additional power supply and combines analog dimming outputs with high-power relay outputs in a compact DIN-rail solution for professional lighting installations.
Applications
- Dimming luminaires with 1–10 V interface
- Control of electronic ballasts
- Tunable white lighting
- RGB and RGBW lighting
- Switching the supply voltage for ballasts and LED drivers
Functions
- 4 independent 1–10 V dimming channels
- 4 relay outputs rated at 16 A for power switching
- Flexible assignment of relays to 1–10 V channels (e.g. RGBW)
- Support for single channel, tunable white, RGB and RGBW
- No inrush currents thanks to capacitive load control
- Start-up function for fluorescent lamps
- Configurable behavior at power-up and during dimming
- Timed functions such as switch-on delay and staircase lighting
- Scenes, sequences, blocking and logic functions
- Energy-saving mode (Economical Mode)
- Customizable dimming curve with up to 5 points
- 4 manual control buttons with status LEDs
- 16 logic blocks
- Support for KNX Data Secure
Technical data
- KNX bus power supply: 21–32 V DC (SELV)
- KNX current consumption: max. 15 mA
- Power loss: max. 4 W
- Analog outputs: 1–10 V
- Max. control current per output: 100 mA
- Max. cable length 1–10 V: 500 m (0.5 mm²)
- Relay contacts: µ-contact
- Max. relay current: 16 A, 250 V AC, cos φ = 1
- Max. relay inrush current: 117 A (TV-8)
- Incandescent lamps: max. 8 A
- Motors and geared motors: max. 3 A
- Mounting: DIN rail, 4 modules
- Degree of protection: IP20
- Operating temperature: -5 °C to +45 °C
Important notes
- Always ensure that the inrush current of LED drivers is lower than the permitted relay peak current.
- Relay outputs are intended for power switching and not for direct dimming.
- Use suitable cabling for long 1–10 V connections to avoid voltage drop.
- Installation and parameterization must be carried out by a qualified KNX installer.
