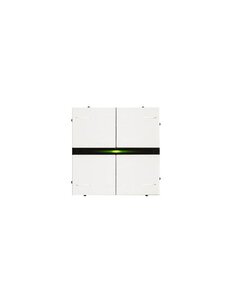

OL-U KNX Switch – Lite Version | Hardware + 4 Buttons (White/Black)
€112,53 Incl. tax €187,55 Incl. tax. Out of stock, but available
Specifications
Information
Link zur Website von eelectron (Englisch)
eelectron OL-U KNX wall switch – Lite Version
Art. No. SO04L02KNX-1 (white) / SO04L02KNX-3 (black)
Description:
The eelectron OL-U KNX wall switch in the Lite Version is an intelligent control device with 4 mechanical buttons (8 channels) and a freely configurable RGB LED bar. It is designed for controlling lights, dimmers, shutters, blinds, or other KNX functions. The unit integrates a 2-stage thermostat with PI control for heating, cooling, valves, 6-way valves, and fan coil systems (2- and 4-pipe). Configuration is done via ETS with support for KNX Data Secure.
Functions:
• 4 freely programmable buttons (8 functions)
• RGB LED bar for status or function indication
• 2-stage thermostat with integrated PI controller
• Up to 32 logic functions for switching, threshold or calculation operations
• Support for “Virtual Holder Logic” for presence management in hotel rooms
• Fully configurable via ETS, including KNX Data Secure
• Compatible with 2- and 3-module flush mounting boxes (Italian, German, British, Swiss)
Technical data:
Power supply: via KNX bus 21–32 V DC
Max. current consumption: 30 mA
Mounting: flush-mounted (wall box)
Housing: plastic (PC-ABS)
Device dimensions: 71 × 71 × 25 mm
2-module cover frame (not included): 92 × 92 × 11 mm
3-module cover frame (not included): 130 × 92 × 11 mm
Protection degree: IP20 (EN 60529)
Weight: approx. 53 g
Operating temperature: −5 °C … +45 °C
Storage temperature: −20 °C … +70 °C
Relative humidity: max. 90% (non-condensing)
Standards and conformity:
EN 63044-3 / EN 63044-5-1 / EN 63044-5-2
Complies with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.
KNX certified.
Delivery:

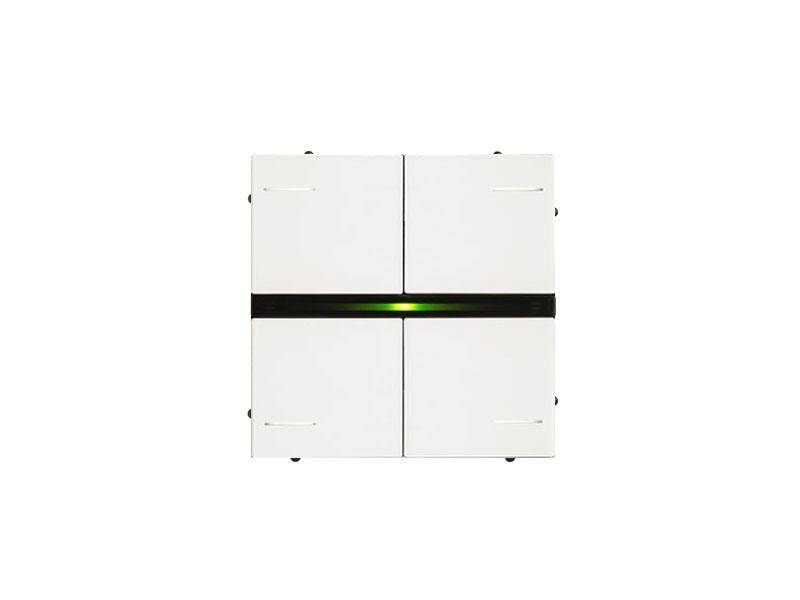

Model SO04L02KNX-1 is supplied as a complete unit including hardware and 4 white plastic buttons (Lite version).

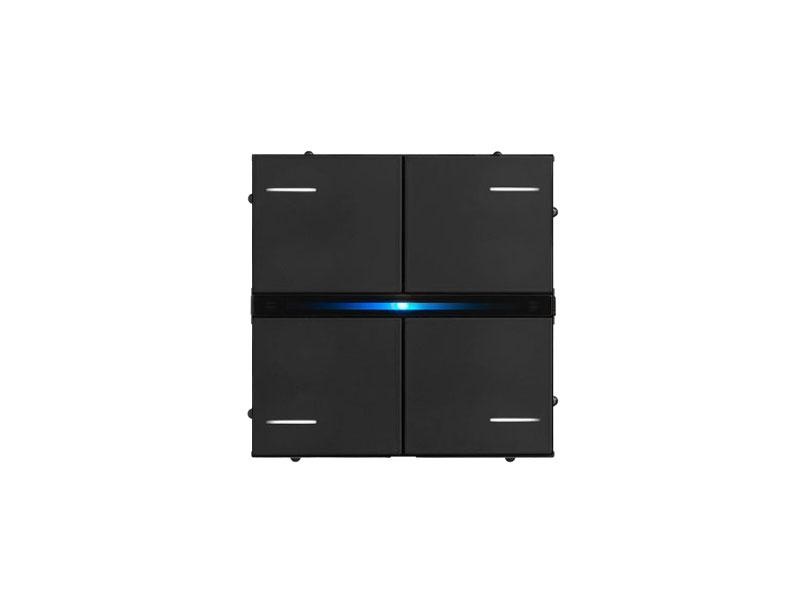

Model SO04L02KNX-3 includes hardware and 4 black plastic buttons.
2- or 3-module cover frames are available separately.
Important note:
Delivery includes KNX connection terminal and fixing screws. Cover frames and optional button sets in plastic, metal or FENIX are available separately. Installation is intended for indoor use in dry environments only.
Related products

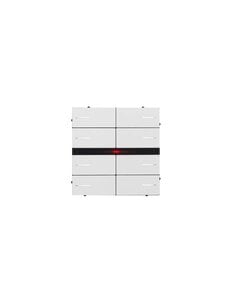

KNX wall switch with 8 buttons for lighting, blinds and HVAC control. Features RGB status bar, 2-stage PI thermostat and logic functions. Available in white or black.
€130,68 Incl. tax
Metal mounting frame 71 mm for various KNX wall switches, including the OL-U series. Ensures stable and precise installation in 2-module flush boxes.
€7,26 Incl. tax

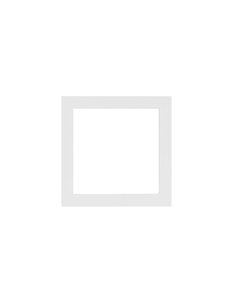

Plastic cover frame 71 mm in white or black. Suitable for various KNX wall switches including the OL-U series. Fits 2-module flush boxes for a clean finish.
