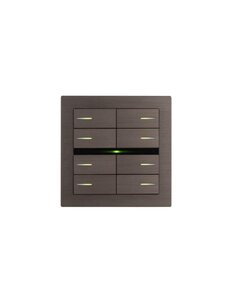

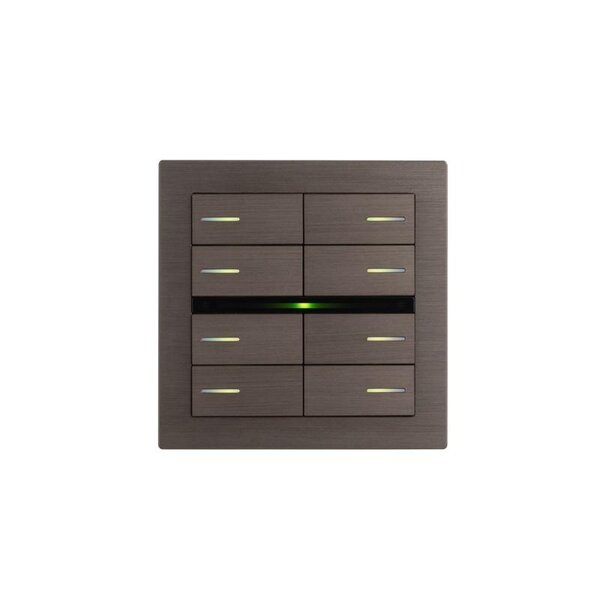

OL-OL-U KNX Metal Edition touch sensor 8 btns with RGB swiper & temp.ctrl
€119,79 Incl. tax €199,65 Incl. tax. Out of stock, but available
Specifications
Information
Link zur Website von eelectron (Englisch)

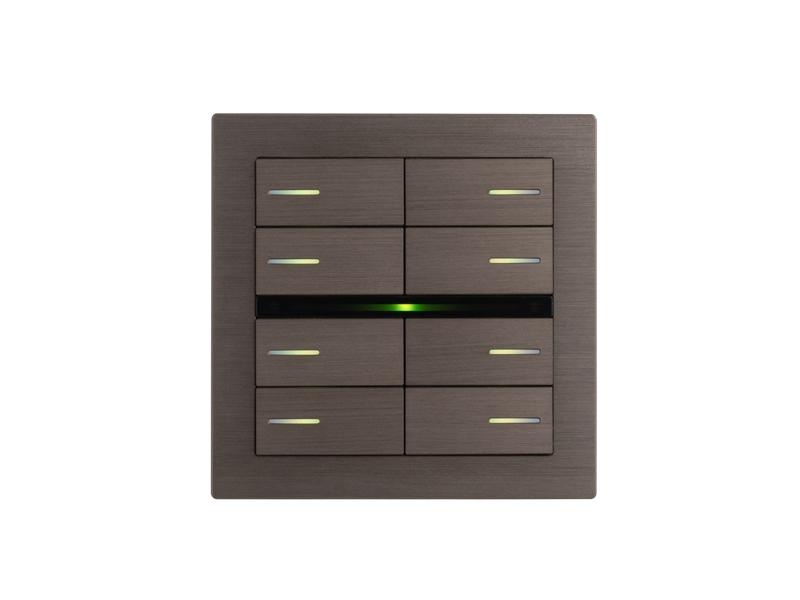

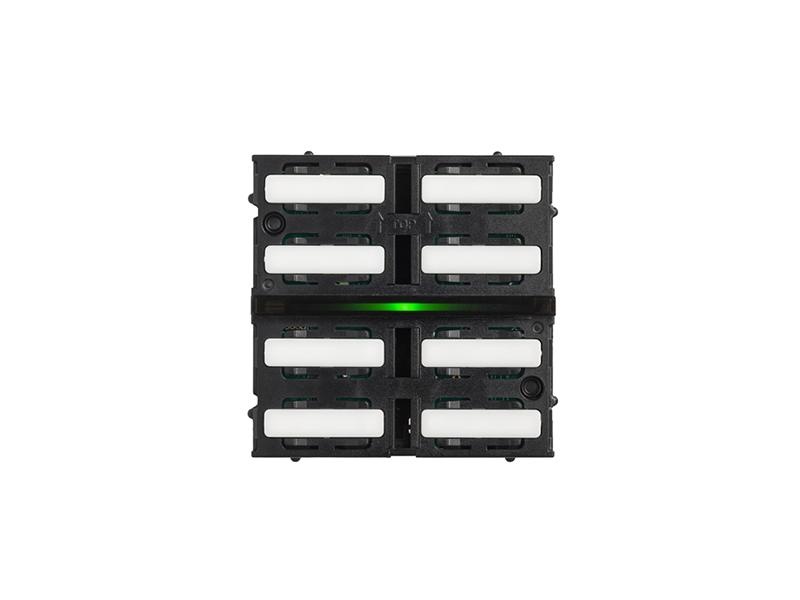

OL-U KNX Metal Edition touch sensor – 8 buttons, RGB swiper & thermostat
Art.nr.: SO08A01KNX
Product description
The OL-U KNX Metal Edition touch sensor is a high-quality metal wall control with 8 mechanical buttons (16 channels), an RGB capacitive swiper and an integrated 2-stage thermostat with PI control. It supports scenes, dimming, shutters, logic functions and KNX Data Secure. Suitable for residential buildings, offices and hotel room automation.
Technical data
- Power supply: KNX bus 21–32 V DC, max. 30 mA
- Operation: 8 buttons, RGB swiper, individual LED status
- Thermostat: 2-stage PI controller
- Logic: 32 logic blocks, dew point & proportional control
- Group addresses: up to 600
- Associations: up to 700
- Device dimensions: 71 × 71 × 25 mm
- Frame dimensions: 2M 92 × 92 × 11 mm • 3M 130 × 92 × 11 mm
- Protection rating: IP20
- Operating temperature: –5…45 °C
Important notes
- Do not connect to 230V – KNX bus only (SELV).
- Maintain at least 4 mm separation between mains voltage and KNX cabling.
- Calibrate the temperature sensor via ETS after installation.
- Always mount the frame with the ventilation opening facing downwards.
- Indoor use only; avoid direct sunlight.
Accessories (sold separately)
1. Metal button kits – 4 buttons
- BK04MT-SH – Metal Silver, 4 buttons
- BK04MT-CH – Metal Champagne, 4 buttons
- BK04MT-GO – Metal Gold, 4 buttons
- BK04MT-BR – Metal Bronze, 4 buttons
- BK04MT-BL – Metal Black, 4 buttons
2. Metal button kits – 4 left + 2 right buttons
- BK42MT-SH – Metal Silver, 4 left + 2 right
- BK42MT-CH – Metal Champagne, 4 left + 2 right
- BK42MT-GO – Metal Gold, 4 left + 2 right
- BK42MT-BR – Metal Bronze, 4 left + 2 right
- BK42MT-BL – Metal Black, 4 left + 2 right
3. Metal button kits – 2 left + 4 right buttons
- BK24MT-SH – Metal Silver, 2 left + 4 right
- BK24MT-CH – Metal Champagne, 2 left + 4 right
- BK24MT-GO – Metal Gold, 2 left + 4 right
- BK24MT-BR – Metal Bronze, 2 left + 4 right
- BK24MT-BL – Metal Black, 2 left + 4 right
4. Metal button kits – 8 buttons
- BK08MT-SH – Metal Silver, 8 buttons
- BK08MT-CH – Metal Champagne, 8 buttons
- BK08MT-GO – Metal Gold, 8 buttons
- BK08MT-BR – Metal Bronze, 8 buttons
- BK08MT-BL – Metal Black, 8 buttons
5. Plastic button kit
- BK08PLR – Raw plastic, 8 buttons
6. Metal frames – 71 mm
- PO71A01MT-SH – Metal Silver, 71 mm
- PO71A01MT-CH – Metal Champagne, 71 mm
- PO71A01MT-GO – Metal Gold, 71 mm
- PO71A01MT-BR – Metal Bronze, 71 mm
- PO71A01MT-BL – Metal Black, 71 mm
7. Mounting frame
- FO71A01-2M – Metal mounting frame, 71 mm
Delivery includes
- OL-U KNX Metal Edition touch sensor
- KNX bus connector (red/black)
- Mounting screws
Related products

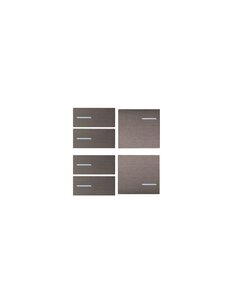

Luxury Metal Edition rocker set with 4 left and 2 right buttons for Eelectron OL-U KNX touch sensors. Made from high-quality metal with a durable premium finish. Easy to install and available in multiple colors.
€53,24 Incl. tax

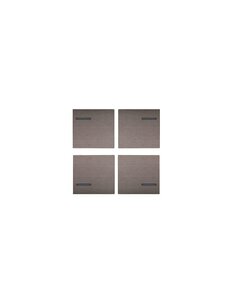

Luxury 4-button Metal Edition key set for Eelectron OL-U KNX touch sensors. Made from high-quality metal with a durable premium finish. Easy to install and available in multiple colours to match any interior design.
€48,40 Incl. tax
Metal mounting frame 71 mm for various KNX wall switches, including the OL-U series. Ensures stable and precise installation in 2-module flush boxes.
€7,26 Incl. tax

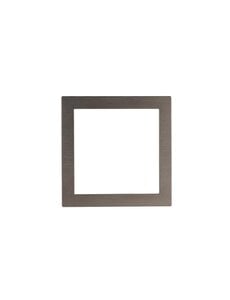

The OL-U KNX Metal Edition 71 mm cover frame provides a premium metal finish for OL-U touch sensors. Available in various colours and easy to install, offering a stylish and durable design upgrade.
