KNX EIB bus cable Y(St)Y EIB-YStY2x2x0.8Ri.100 | Ring 100 m | green

Name: Diverse KNX EIB bus cable Y(St)Y EIB-YStY2x2x0.8Ri.100 | Ring 100 m | green
Brand: Diverse
Price: 50.00 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€50,00 Excl. tax€60,50 Incl. tax Out of stock, but available

Unit price: €50,00 / Piece

KNX EIB bus cable for building automation and MSR. Always offered at the best price; manufacturer may vary depending on availability and delivery time. Read more

Specifications

Brand:

Diverse

Article number:

KNX-YStY2x2x0,8Ri.100

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

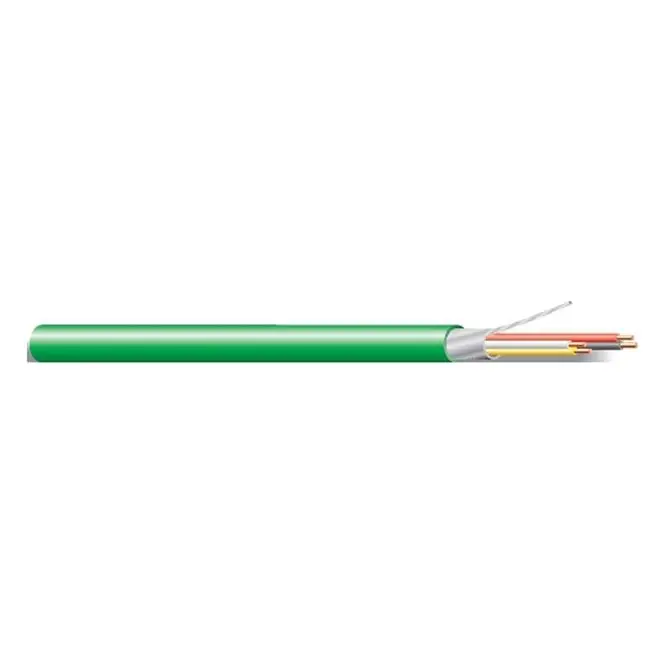

KNX EIB Bus Cable Y(St)Y EIB-YStY2x2x0.8Ri.100

Ring 100 m, Green, Cores 2x2x0.8 mm, Cable Diameter approx. 6.5 mm

Application

This KNX EIB bus cable is designed for the transmission of bus signals in building automation systems (KNX/EIB). It is also suitable for measurement, control, and regulation technology (MSR) in power installations and industrial processes.

Features

For indoor use in KNX systems and MSR applications
4-core bus cable with 2 twisted pairs (2x2x0.8 mm)
Conductors: solid bare copper (Ø 0.8 mm)
Core colours:
- 1st pair: red / black
- 2nd pair: white / yellow
Insulation: halogen-free compound
Twisted in star quad structure with common plastic sheath
Shield: aluminium foil laminated with plastic
Drain wire: solid bare copper
Outer sheath: PVC YM1, green
Not suitable for underground installation

Technical Data

Length	100 metres (ring)
Number of cores	4 (2x2x0.8 mm)
Cable diameter	approx. 6.5 mm
Rated voltage	250 V
Test voltage	4 kV
Conductor resistance	max. 73.2 Ohm/km
Insulation resistance	≥ 100 MΩ x km
Operating capacitance	max. 100 nF/km (at 800 Hz)
Coupling capacitance	approx. 300 pF/100 m (at 800 Hz)
Operating temperature	-40 °C to +70 °C
Installation temperature	+5 °C to +70 °C
Halogen-free	no
Burial installation	not allowed
Weight	approx. 0.074 kg/m

Important Note

We always supply this KNX bus cable at the most competitive price. The manufacturer may vary depending on availability. All supplied variants meet KNX standards and equivalent technical specifications.
