PD-FLAT 360i/8 ROUND WHITE FM KNX 360°, 8 m
€113,17 Incl. tax €177,87 Incl. tax. Out of stock, but available
Specifications
Information

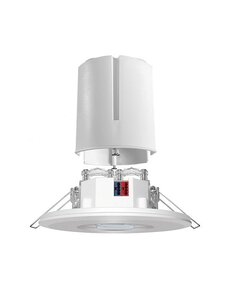

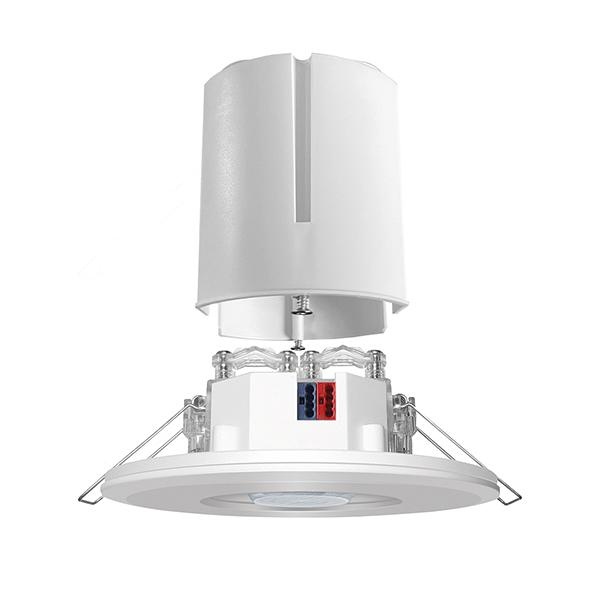

PD-FLAT 360i/8 ROUND WHITE FM KNX
Design Presence Detector for Ceiling Flush-Mounting
Art. No.: EP10423222
Product Description
The ESYLUX PD-FLAT 360i/8 ROUND WHITE FM KNX is a high-performance presence detector with a flat white design (RAL 9010), suitable for flush ceiling installation in KNX building automation systems. It features a 360° detection angle and a detection range of up to Ø 8 m at a recommended installation height of 3 m. Configuration is carried out via ETS software. Its minimalist and interchangeable cover design ensures seamless integration in modern interiors.
The device includes advanced functions for automated lighting and HVAC control via KNX. It offers 3 channels (C1, C2 for lighting, C3 for HVAC), constant light control, manual override, presence simulation, night light function, and flexible configuration of operating modes including master/slave setup.
Applications

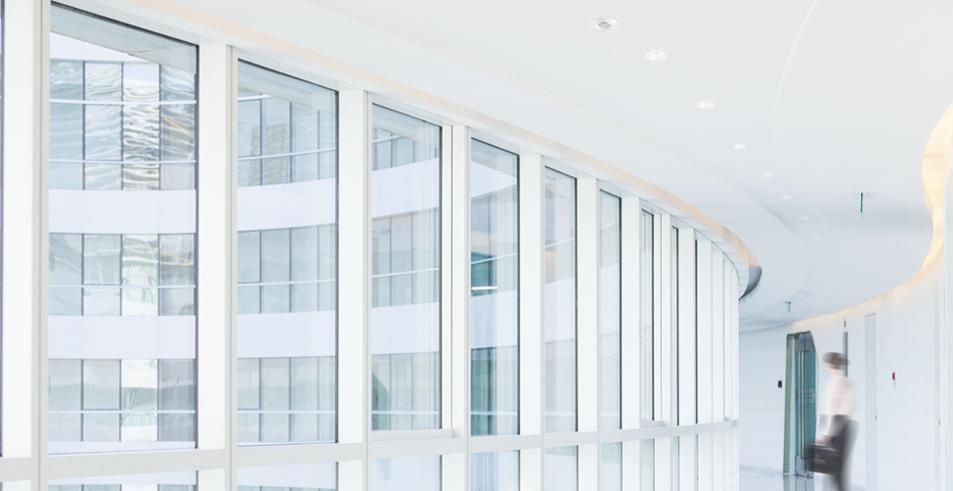

- KNX-based automation in offices, meeting rooms, educational and public buildings
- Ceiling flush-mounted installation in suspended or solid ceilings
- Automatic lighting and HVAC control based on occupancy and light levels
Technical Data
| Device Category | Ceiling-mounted presence detector |
|---|---|

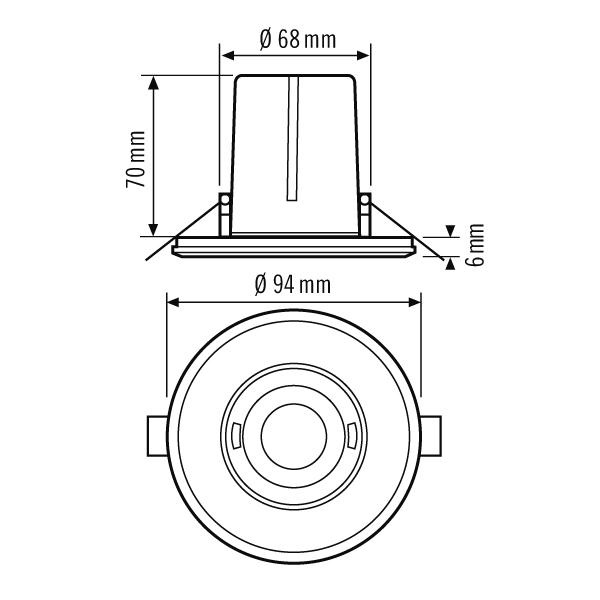

| Mounting Type | Flush mounting (Ø 68 mm opening, 100 mm depth) |
| Visible Dimensions | Ø 94 mm, depth 76 mm |
| Material | UV-stabilized polycarbonate |
| Color | White, RAL 9010 |
| Weight | 105 g |
| IP Rating | IP20 |
| Ambient Temperature | -25 °C to +50 °C |
| Humidity | 5–93 % (non-condensing) |
| Nominal Voltage | 29–31 V ~ / 50 Hz |
| Power Consumption | 0.3 W |
| Detection Angle | 360° |
| Presence Detection Area | Ø 4 m (up to 50 m²) |
| Frontal / Diagonal Detection | Ø 6 m / Ø 8 m |
| Mounting Height (recommended / max.) | 2.5 m / 5 m |
| Light Measurement Range | 5–2000 lx |
| Lighting Channels | 2 (C1, C2 switching or dimming) |
| HVAC Channel | 1 (C3 switching) |
| Orientation Light | 10–50 % adjustable, with timer |
| KNX Inputs | Manual override, blocking, reset, slave input |
| KNX Outputs | Presence, light level, status, HVAC |
| KNX Features | Presence simulation, night light, manual control, master/slave, adjustable sensitivity, cyclic signal |

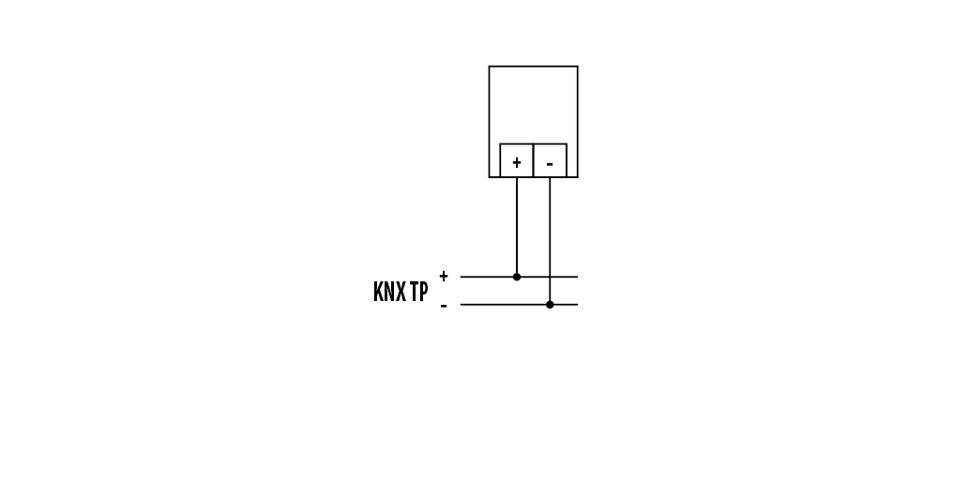

| Connection Type | Push-in terminal |
| Certifications | CE, EAC, RoHS, WEEE |
| Warranty | 5 years |
| GTIN (EAN) | 4015120423222 |
Important Note
Ensure a minimum distance of 5 m from radio transmission devices (e.g., WiFi access points) to avoid signal interference. This device is intended solely for integration into KNX bus systems and cannot be used as a standalone sensor.
