PD-C 360i/8 mini KNX – opal-matte

75,38 Excl. tax €120,00 Excl. tax
€91,21 Incl. tax 145,20 Incl. tax.
Out of stock, but available
Unit price: €86,15 / Piece
Compact KNX presence detector with 360° detection up to 50 m², Ø8 m diagonal, mounting height 3–5 m. Opal-matte. Manual control and advanced KNX features. IP55, Ø33 mm. Read more

Specifications

Brand:
ESYLUX
Article number:
EP10426155
EAN:
4015120426155
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Esylux website

Esylux PD-C 360i/8 mini KNX

compact presence detector for ceiling installation

Article number: EP10426155

Application

The Esylux PD-C 360i/8 mini KNX is a compact presence detector for KNX systems, designed for discreet ceiling installation. With a 360° detection angle and a coverage area of up to 50 m², it is ideal for small spaces such as offices, corridors, restrooms, staircases, or technical rooms.

Features

  • 360° detection angle with a coverage area up to 50 m²
  • Detection distances: Ø8 m diagonal, Ø5 m frontal, Ø3 m presence area
  • Constant light control based on presence and daylight
  • 2 lighting channels (C1 and C2) and 1 HVAC channel (C3)
  • KNX functions: alarm, twilight switch, brightness detection, scene telegram via object
  • Advanced functions: presence simulation, manual control, master/slave, night light, adjustable sensitivity, cyclic signal transmission
  • Manual control via KNX input objects
  • Adjustable orientation light: 10–50 %, duration 60–250 minutes
  • Individually adjustable switch-on and switch-off delays
  • Slave input available

Technical data

General

  • Device category: ceiling-mounted presence detector
  • Installation location: maintain at least 5 m distance from radio antennas (e.g. WiFi access points)

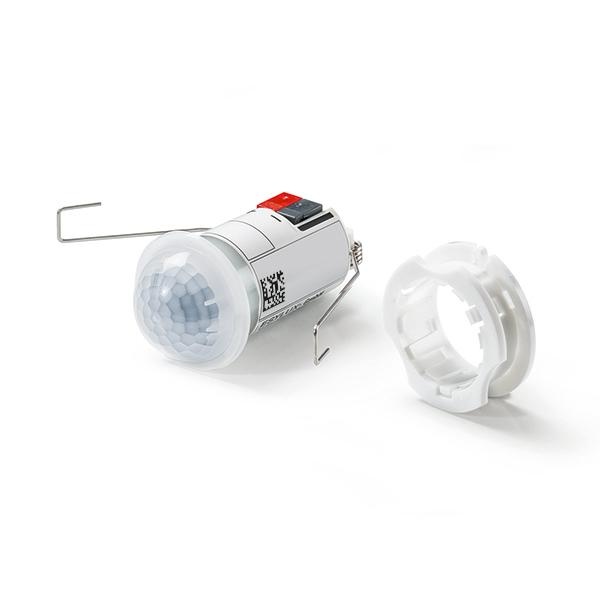

  • Scope of delivery: includes lens mask, spring clips and mounting ring
  • Remote control: supported
  • Compliance: CE, EAC, RoHS, WEEE
  • Warranty: 5 years

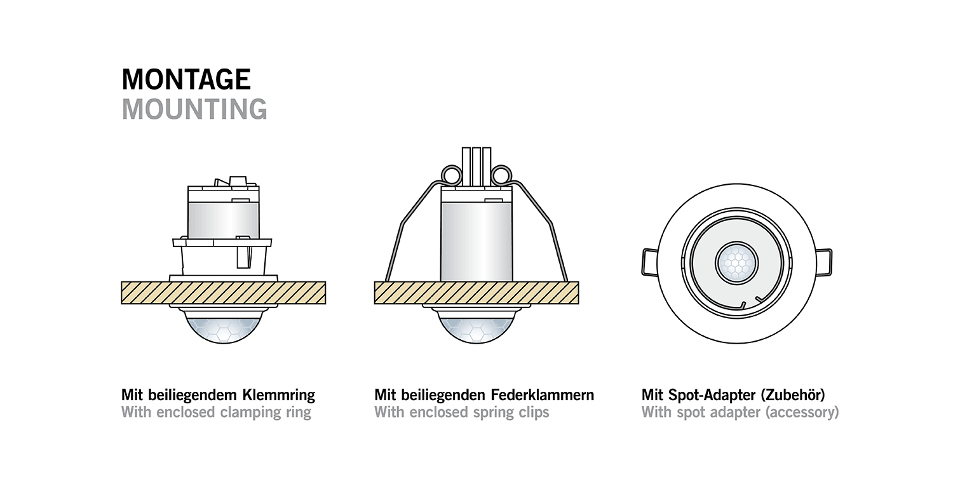

Mounting

  • Mounting type: flush ceiling installation
  • Installation dimensions: Ø25 mm, installation depth 45 mm

Housing

  • Dimensions: Ø33 mm, height 60 mm
  • Weight: 21 g
  • Material: UV-stabilised polycarbonate
  • Protection rating: IP55
  • Colour: opal-matte
  • Permissible ambient temperature: -25 °C to +50 °C
  • Relative humidity: 5 – 93 %, non-condensing

Electrical

  • Control system: KNX
  • Protection class: III
  • Rated voltage: 29–31 V DC
  • Power consumption: 0.2 W
  • Current consumption: 6 mA
  • Connection type: push-in terminal

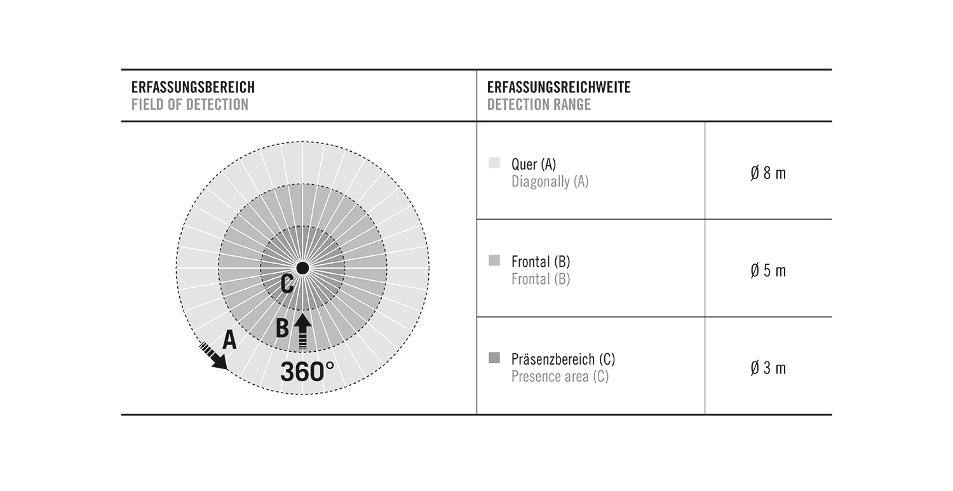

Sensor

  • Detection angle: 360°
  • Detection area: up to 50 m²
  • Diagonal detection range: Ø8 m
  • Frontal detection range: Ø5 m
  • Presence detection range: Ø3 m
  • Brightness measurement: 5 – 2000 lx
  • Recommended mounting height: 3 m (max. 5 m)

Control & Channels

  • C1 lighting: switching or dimming via bus system, delay time 30 s – 720 min
  • C2 lighting: same as C1, with offset (-80 % to +80 %), delay time 10 s – 60 min
  • C3 HVAC: switching, switch-on delay 120 s – 30 min, delay time 10 s – 720 min
  • Orientation light: off / 10–50 %, adjustable duration 60 – 250 min
  • Operating modes: semi-automatic or fully automatic

Important notes

For optimal operation, install the sensor at a height between 3 and 5 metres. Maintain at least 5 m distance from wireless transmitters such as WiFi access points to prevent signal interference.
