PD-C 360i/8 mini KNX BK – black, opal-matte

Name: ESYLUX PD-C 360i/8 mini KNX BK – black, opal-matte
Brand: ESYLUX
Price: 81.74 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€81,74 Excl. tax €125,00 Excl. tax
€98,91 Incl. tax €151,25 Incl. tax. Out of stock, but available

Unit price: €81,74 / Piece

Compact KNX ceiling sensor with 360° detection up to 50 m², Ø8 m diagonal, mounting height 3–5 m. Black, opal-matte. Manual control and advanced KNX functions. IP55, Ø33 mm. Read more

Specifications

Brand:

ESYLUX

Article number:

EP10426209

EAN:

4015120426209

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Esylux website

Esylux PD-C 360i/8 mini KNX BK

compact presence detector for ceiling installation

Article number: EP10426209

Application

The Esylux PD-C 360i/8 mini KNX BK is a compact presence detector for KNX systems, designed for discreet ceiling mounting. With a 360° detection angle and a coverage area of up to 50 m², it is ideal for offices, hallways, restrooms, stairwells, or technical rooms.

Features

360° detection angle with a coverage area up to 50 m²

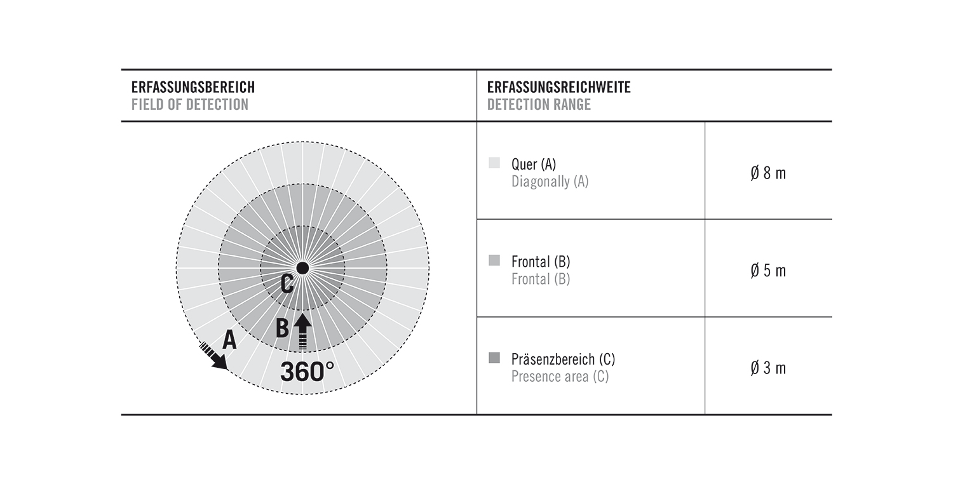

Detection distance: Ø8 m diagonal, Ø5 m frontal, Ø3 m presence area
Presence- and daylight-dependent constant light control
Supports 2 lighting channels (C1/C2) and 1 HVAC channel (C3)
KNX functions: presence simulation, manual control, master/slave, night light, blocking, reset, cyclic signal transmission
Manual control via KNX input objects
Adjustable sensitivity, switch-on and switch-off delay
Orientation light adjustable: 10–50 %, 60–250 min
Constant light control integrated
Slave input available

Technical data

General

Device category: Ceiling presence detector
Installation location: Keep at least 5 m distance from WiFi antennas

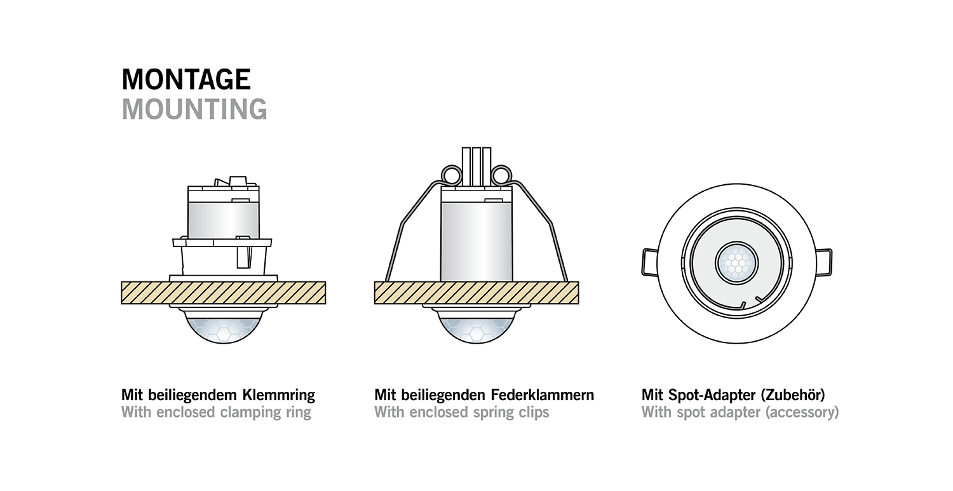

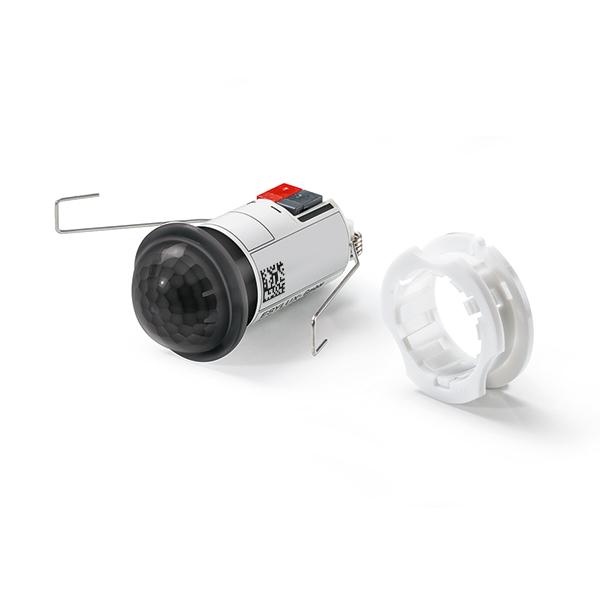

Scope of delivery: includes lens mask, spring clips and mounting ring
Remote control: supported
Conformity: CE, EAC, RoHS, WEEE
Warranty: 5 years

Installation

Mounting type: Ceiling flush-mount

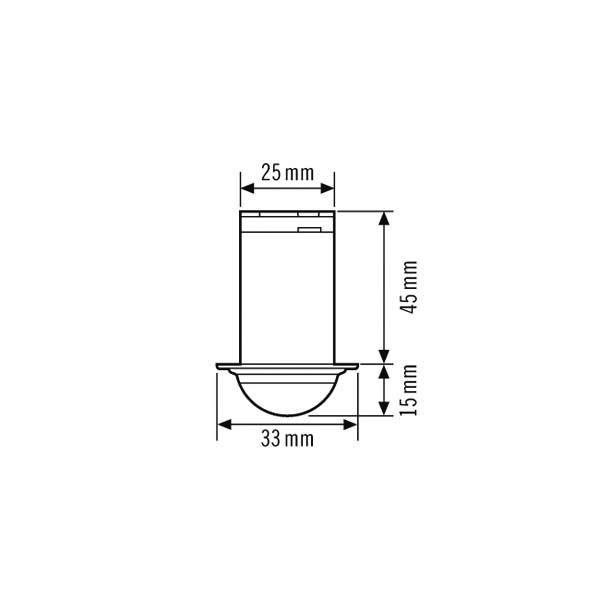

Installation dimensions: Depth 45 mm, hole Ø25 mm
Recommended mounting height: 3 m (max. 5 m)

Mechanical

Dimensions: Ø33 mm, height 60 mm
Weight: 21 g
Housing: UV-stabilised polycarbonate
Protection class: IP55
Colour: black, opal-matte
Ambient temperature: -25 °C to +50 °C
Relative humidity: 5 – 93 %, non-condensing

Electrical

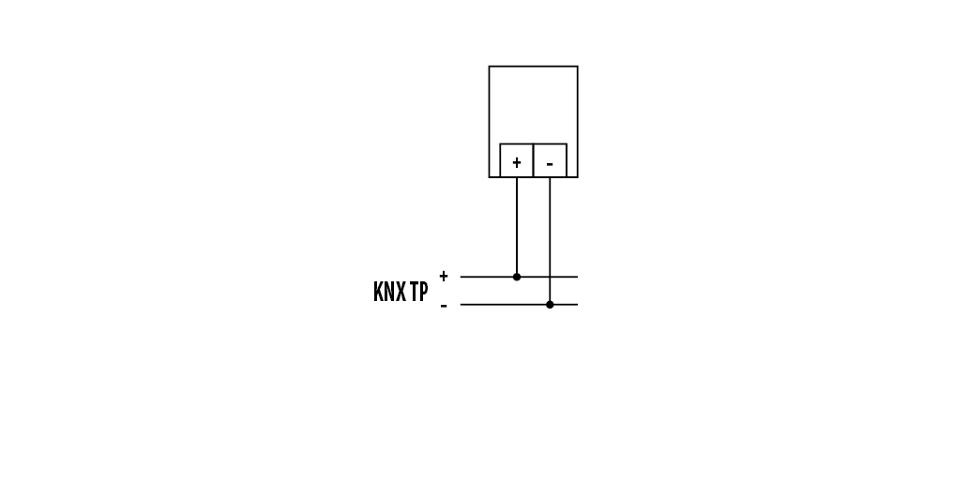

Control system: KNX
Protection class: III
Rated voltage: 29–31 V DC
Power consumption: 0.2 W
Current consumption: 6 mA

Control & Channels

C1 (lighting): switching or dimming, delay time 30 s–720 min
C2 (lighting): switching or dimming, offset to C1, delay time 10 s–60 min
C3 (HVAC): switching, switch-on delay 120 s–30 min, delay time 10 s–720 min
Orientation light: off/10–50 %, adjustable duration 60–250 min

Important notes

Note: For optimal performance, install the sensor at a height between 3 and 5 meters. Keep a minimum distance of 5 meters from wireless transmitters such as WiFi access points to avoid interference.
