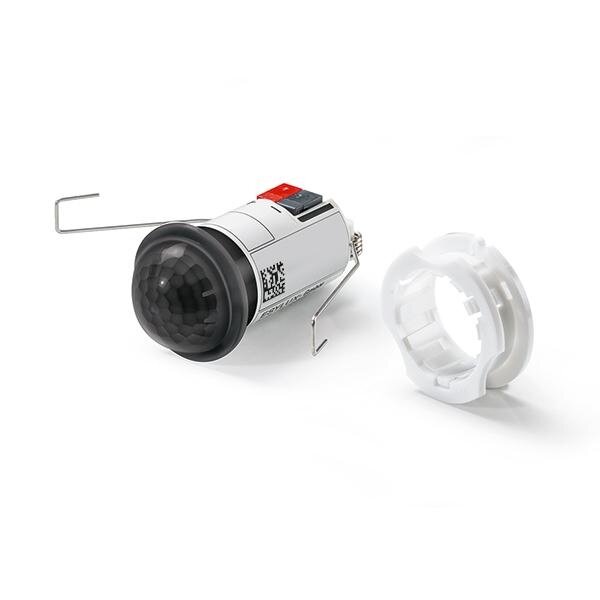

PD-C 360i/8 mini KNX BK – black, opal-matte

Name: ESYLUX PD-C 360i/8 mini KNX BK – black, opal-matte
Brand: ESYLUX
Price: 81.74 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€81,74 Excl. tax €125,00 Excl. tax
€98,91 Incl. tax €151,25 Incl. tax. Out of stock, but available

Unit price: €81,74 / Piece

Compact KNX ceiling sensor with 360° detection up to 50 m², Ø8 m diagonal, mounting height 3–5 m. Black, opal-matte. Manual control and advanced KNX functions. IP55, Ø33 mm. Read more

Specifications

Brand:

ESYLUX

Article number:

EP10426209

EAN:

4015120426209

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Due to the holidays, orders may be delayed and pickup is not possible.

Information

Link to Esylux website

Esylux PD-C 360i/8 mini KNX BK

compact presence detector for ceiling installation

Article number: EP10426209

Application

The Esylux PD-C 360i/8 mini KNX BK is a compact presence detector for KNX systems, designed for discreet ceiling mounting. With a 360° detection angle and a coverage area of up to 50 m², it is ideal for offices, hallways, restrooms, stairwells, or technical rooms.

Features

360° detection angle with a coverage area up to 50 m²
Detection distance: Ø8 m diagonal, Ø5 m frontal, Ø3 m presence area
Presence- and daylight-dependent constant light control
Supports 2 lighting channels (C1/C2) and 1 HVAC channel (C3)
KNX functions: presence simulation, manual control, master/slave, night light, blocking, reset, cyclic signal transmission
Manual control via KNX input objects
Adjustable sensitivity, switch-on and switch-off delay
Orientation light adjustable: 10–50 %, 60–250 min
Constant light control integrated
Slave input available

Technical data

General

Device category: Ceiling presence detector
Installation location: Keep at least 5 m distance from WiFi antennas
Scope of delivery: includes lens mask, spring clips and mounting ring
Remote control: supported
Conformity: CE, EAC, RoHS, WEEE
Warranty: 5 years

Installation

Mounting type: Ceiling flush-mount
Installation dimensions: Depth 45 mm, hole Ø25 mm
Recommended mounting height: 3 m (max. 5 m)

Mechanical

Dimensions: Ø33 mm, height 60 mm
Weight: 21 g
Housing: UV-stabilised polycarbonate
Protection class: IP55
Colour: black, opal-matte
Ambient temperature: -25 °C to +50 °C
Relative humidity: 5 – 93 %, non-condensing

Electrical

Control system: KNX
Protection class: III
Rated voltage: 29–31 V DC
Power consumption: 0.2 W
Current consumption: 6 mA

Control & Channels

C1 (lighting): switching or dimming, delay time 30 s–720 min
C2 (lighting): switching or dimming, offset to C1, delay time 10 s–60 min
C3 (HVAC): switching, switch-on delay 120 s–30 min, delay time 10 s–720 min
Orientation light: off/10–50 %, adjustable duration 60–250 min

Important notes

Note: For optimal performance, install the sensor at a height between 3 and 5 meters. Keep a minimum distance of 5 meters from wireless transmitters such as WiFi access points to avoid interference.
