PD-C 180i KNX ECO | 180°, 16 m | Wall-mounted detector
€108,57 Incl. tax €176,66 Incl. tax. Out of stock, but available
Specifications
Information

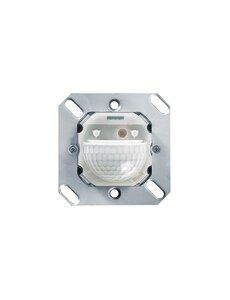

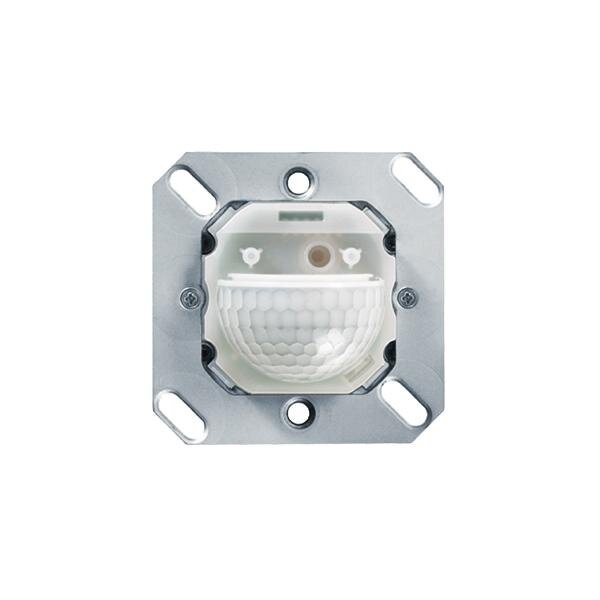

PD-C 180i KNX ECO
Wall-mounted presence detector for KNX systems
Art. No.: EP10426452
The ESYLUX PD-C 180i KNX ECO is an efficient wall-mounted presence detector designed for KNX systems, providing lighting and HVAC control based on motion and brightness. With a 180° detection angle and flexible settings, the sensor is ideal for small to medium-sized rooms such as corridors, restrooms, or single offices. The ECO version combines essential KNX features with an energy-efficient design and attractive price point.
Main features
- 180° horizontal and 60° vertical detection angle

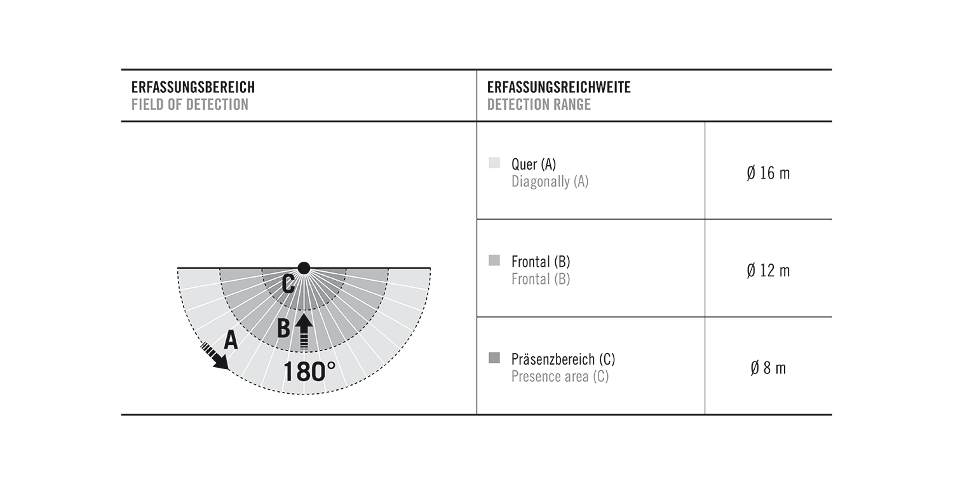

- Detection range up to Ø 16 m (diagonal), Ø 12 m (frontal), Ø 8 m (presence)
- Coverage area up to 101 m²
- 2 lighting channels (C1 and C2), manually configurable
- KNX functions: manual control, master/slave setup, light-dependent motion detection
- Semi-automatic and fully automatic modes
- Adjustable sensitivity per channel
- Slave mode for extended detection area
Technical specifications

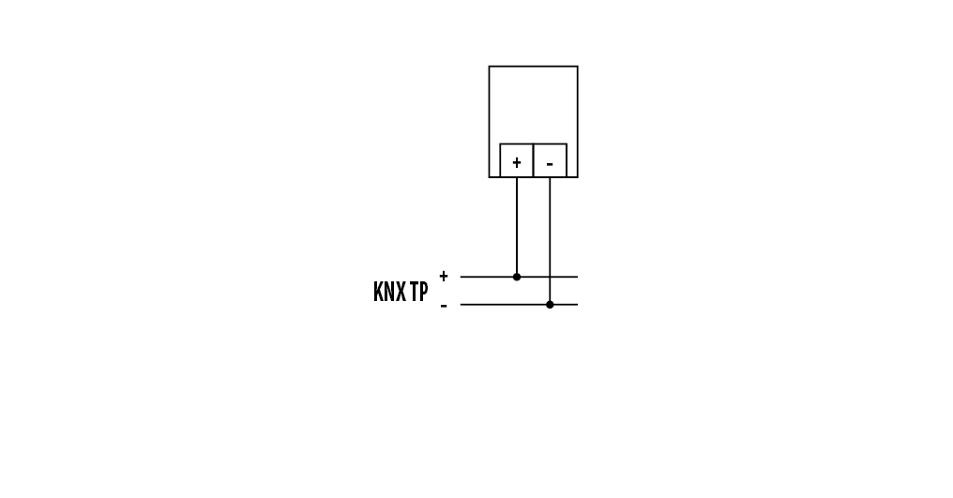

- Power supply: 29–31 V DC via KNX bus
- Power consumption: 6 mA / 0.2 W
- Protection class: III
- IP rating: IP20 (optional IP44 with cover frame)
- Mounting type: Flush-mounted, wall installation in Ø 68 mm box
- Mounting dimensions: Depth 25 mm, Ø 60 mm

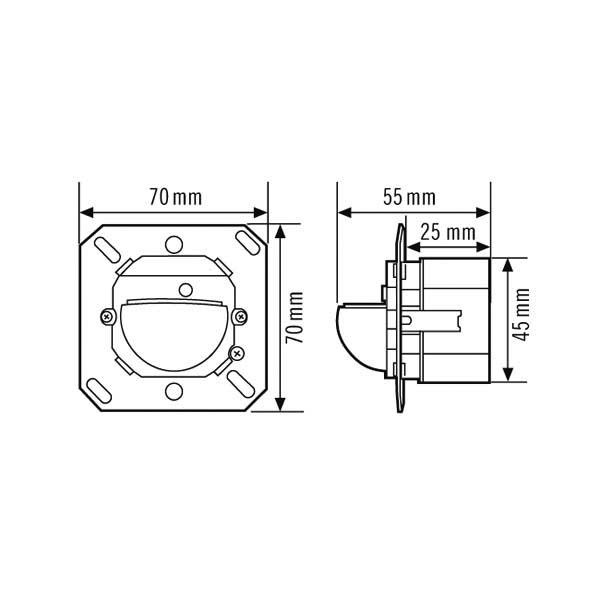

- Dimensions: 70 × 70 × 55 mm
- Material: UV-stabilised polycarbonate
- Colour: White (RAL 9010)
- Ambient temperature: -25 °C to +50 °C
- Humidity: 5–93% (non-condensing)
Detection and control
- Detection angle: 180° horizontal, 60° vertical
- Recommended mounting height: 1.1 m (max. 2.2 m)
- Brightness range: 5–2000 lx
- Channels C1 & C2: Switching via KNX bus
- Switch-on delay: 30 s
- Switch-off delay: 60 s – 30 min (C1), 10 s – 60 min (C2), adjustable
- Slave input: Yes
- Sensitivity: Adjustable
Available KNX functions
- Dusk switch
- Motion direction detection
- Light-dependent motion detection
- Brightness detection via object
- Master/slave function
- Manual operation
- Channel-specific sensitivity adjustment
- Cyclic signal transmission
Important note
Note: Maintain a minimum distance of 5 m from active radio sources (e.g. WiFi access points) to prevent interference. IP44 protection requires a separately available cover frame.
