PD-C 360i/8 KNX UP | 360°, 8 m | Präsenzmelder

Name: ESYLUX PD-C 360i/8 KNX UP | 360°, 8 m | Präsenzmelder
Brand: ESYLUX
Price: 96.97 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€96,97 Excl. tax €157,00 Excl. tax
€117,33 Incl. tax €189,97 Incl. tax. Out of stock, but available

Unit price: €96,97 / Piece

Ceiling presence detector with 360° detection up to 8 m, daylight-dependent constant light control, 2 lighting channels, 1 HVAC channel, manual operation. White (RAL9010) or black (RAL9005). Read more

Specifications

Brand:

ESYLUX

Article number:

EP10427404

EAN:

4015120427404

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Esylux website

PD-C 360i/8 KNX UP – Ceiling Presence Detector

PD-C 360i/8 KNX UP

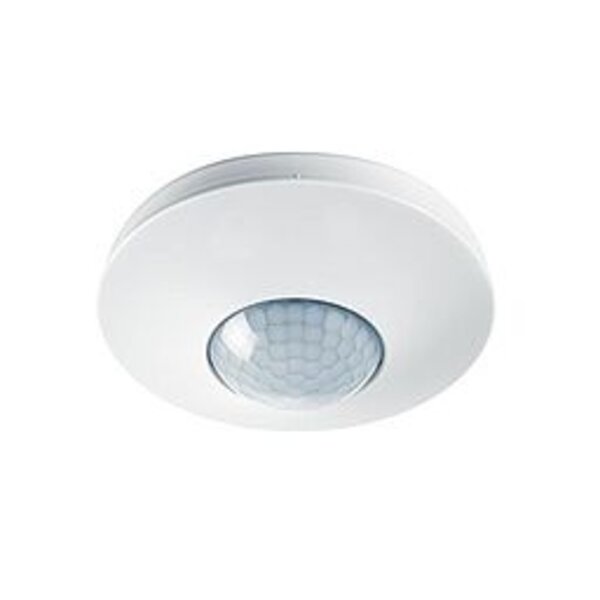

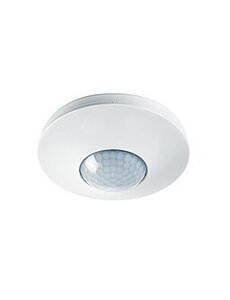

white RAL9010 — Art. No.: EP10427404

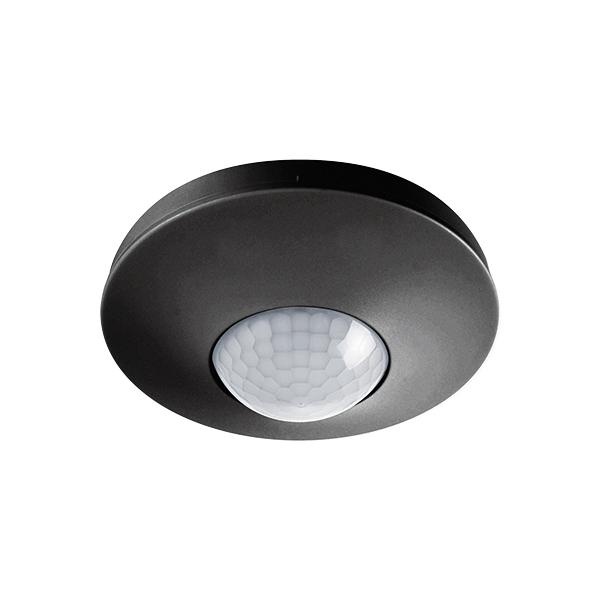

PD-C 360i/8 KNX UP BK

black RAL9005 — Art. No.: EP10427534

The PD-C 360i/8 KNX UP is a ceiling-mounted presence detector for KNX installations with 360° detection and up to Ø 8 m range. It combines presence/motion detection with daylight-dependent constant light control (5–2000 lx), offers 2 lighting channels and 1 HVAC channel, and supports features such as manual operation, master/slave mode, night and orientation light, offset adjustment (C2 to C1), and HVAC control.

Important Note

Maintain at least 5 meters distance between the detector and radio antennas (e.g., Wi-Fi access points) to avoid interference.

Features & Functions

360° detection, diagonal Ø 8 m; frontal Ø 6 m; presence area Ø 4 m (up to 50 m²)
Daylight-dependent constant light control (5–2000 lx)
2 lighting channels (switching & dimming) + 1 HVAC channel (switching)
Operating modes: semi-automatic and fully automatic
Manual control, master/slave function, night light function
Orientation light: off / 10–50 % (2 values), delay 60 s…250 min
Offset adjustment C2 to C1: −50 %…+50 %
Adjustable sensitivity; cyclic signal transmission
KNX inputs: manual light control, blocking, reset, slave
KNX outputs: presence, status, light value, HVAC
Remote controllable; supplied with lens mask

Installation

Mounting location: ceiling
Mounting type: flush-mounted in device box Ø 68 mm
Mounting dimensions: depth 24 mm, cut-out Ø 60 mm
Recommended mounting height: 3 m (max. recommended 5 m)

Technical Data

General
Device category	Ceiling presence detector
Conformity	CE, EAC, RoHS, WEEE
Warranty	5 years
Housing & Environment
Dimensions	H/D 62 mm, Ø 108 mm
Weight	White 125 g; Black 124 g
Material	UV-stabilised polycarbonate
Protection rating	IP20
Ambient temperature	+5 °C…+50 °C
Relative humidity	5–93 %, non-condensing
Colour variants	White RAL9010 (UP), Black RAL9005 (UP BK)
Electrical
Control system	KNX
Protection class	III
Nominal voltage	29–31 V DC
Power consumption	0.2 W
Current consumption	6 mA
Sensors & Detection
Detection angle	360°
Detection range	Diagonal Ø 8 m; frontal Ø 6 m; presence Ø 4 m
Detection area	Up to 50 m²
Light measurement range	5–2000 lx
Channels & Control
Number of lighting channels	2 (C1 & C2)
C1/C2 function	Switching & dimming
Delay time C1	30 s…720 min (adjustable in steps)
Delay time C2	10 s…60 min (adjustable in steps)
Orientation light	Off / 10–50 % (2 values), delay 60 s…250 min
Offset C2 to C1	−50 %…+50 %
Number of HVAC channels	1 (C3)
C3 (HVAC) function	Switching; switch-on delay 120 s…30 min; delay time 30 s…720 min
Impulse inputs	2× lighting, 1× HVAC; slave input available
General delays	Switch-on 30 s; switch-off 300 s (default)

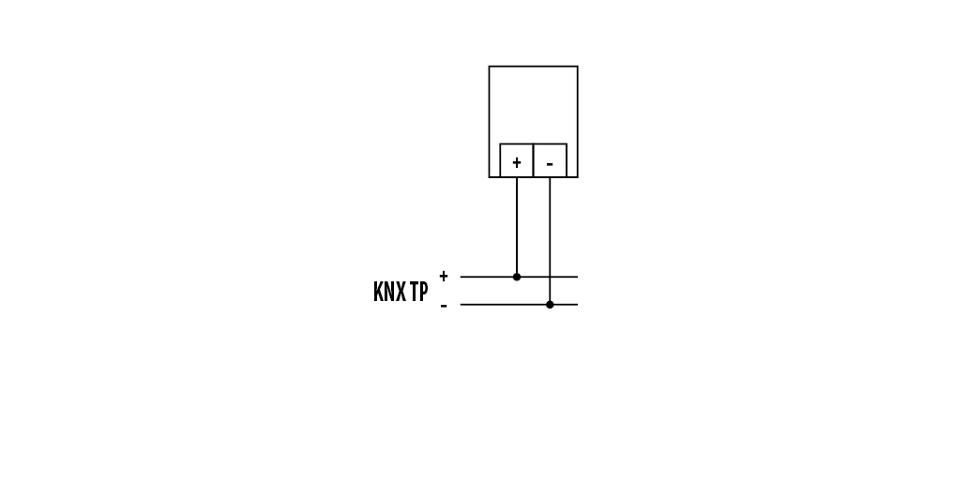

Connection	Push-in terminal; switching contact via bus system (KNX)
