PD-FLAT 360i/8 SQUARE
€108,28 Incl. tax €171,82 Incl. tax. Out of stock, but available
Specifications
Information

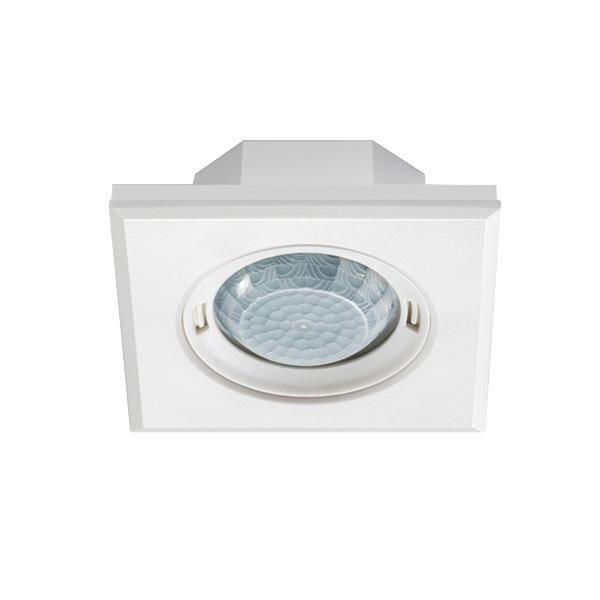

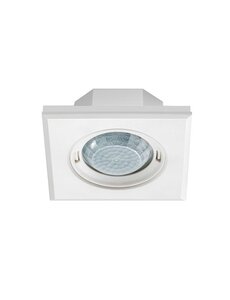

ESYLUX PD-FLAT 360i/8 SQUARE KNX Presence Detector
Product Names
- PD-FLAT 360i/8 SQUARE WHITE KNX

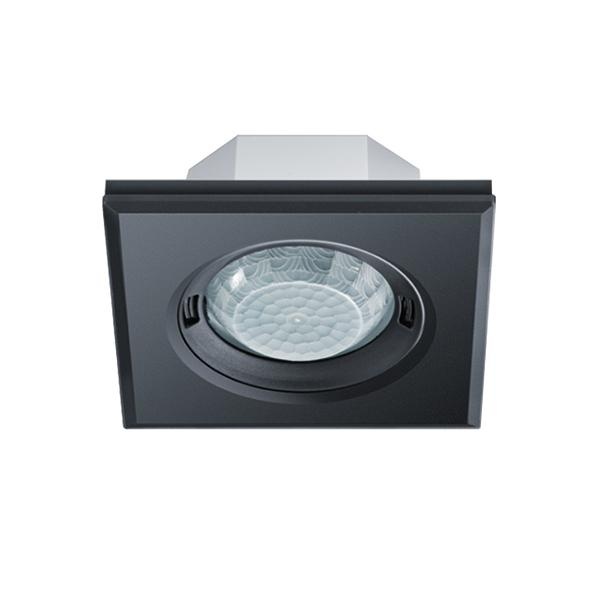

- PD-FLAT 360i/8 SQUARE BLACK KNX
Article Numbers
- White: EP10451713 (GTIN 4015120451713)
- Black: EP10451775 (GTIN 4015120451775)
Description
The ESYLUX PD-FLAT 360i/8 SQUARE KNX is a compact ceiling-mounted presence detector with 360° detection and daylight-dependent lighting control. Ideal for energy-efficient KNX-based control of lighting and HVAC. Configuration via ESY pen and ESY app.
Main Features

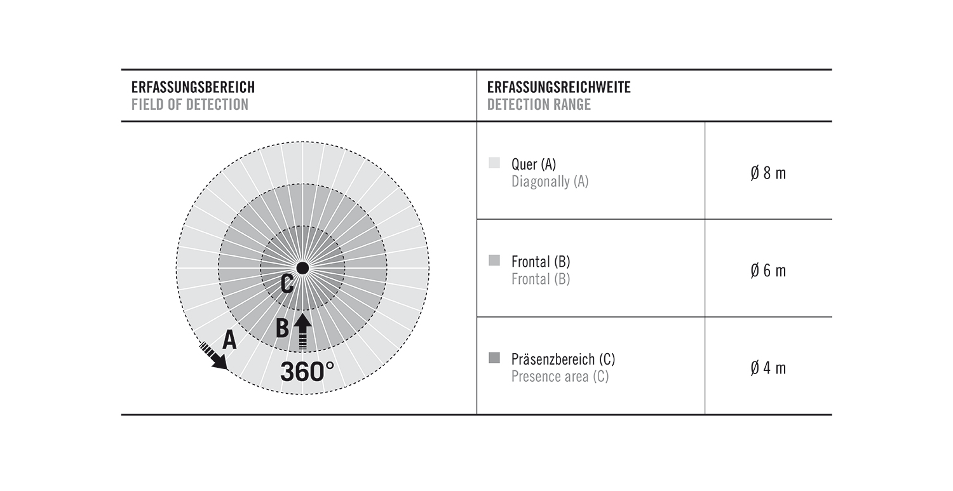

- 360° detection angle, range up to Ø 8 m
- 2 lighting channels (switch/dim), 1 HVAC channel
- Constant light control, master/slave function, night light mode
- Flush mounting in Ø 68 mm box, includes lens mask
- Color options: white (RAL 9010) or black (RAL 9004)
Technical Data

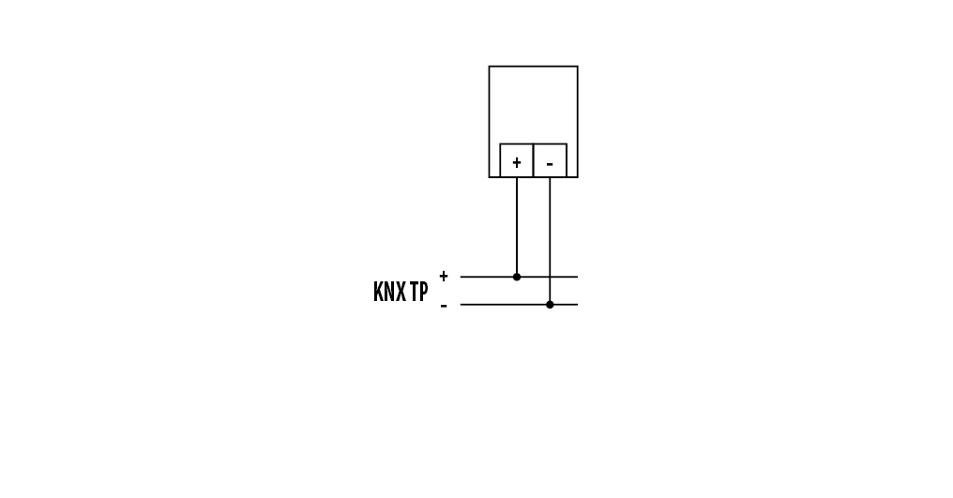

- Voltage: 29–31 V DC (KNX bus), power consumption: 0.2 W
- Protection class: IP20, class III

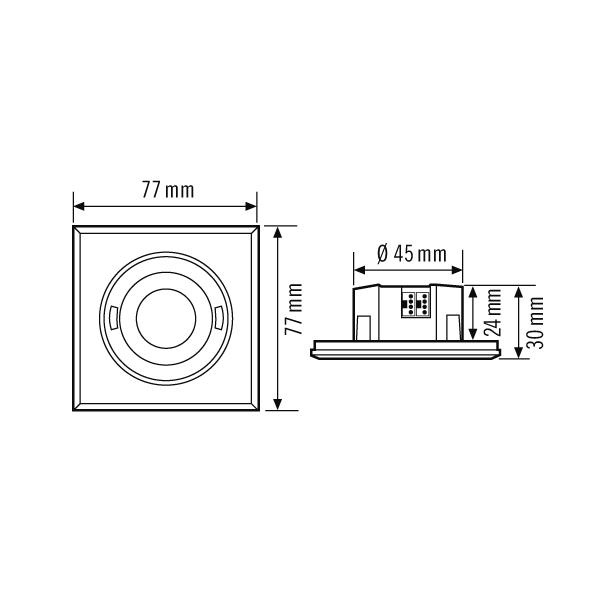

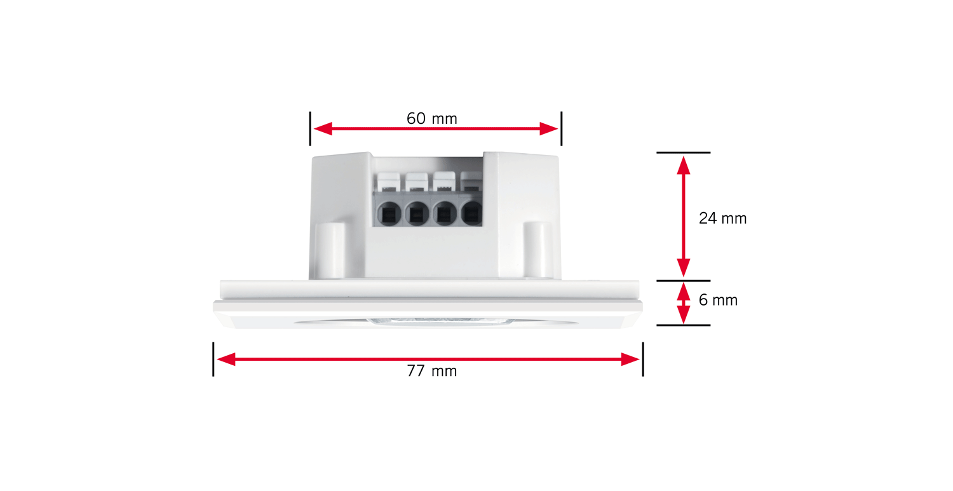

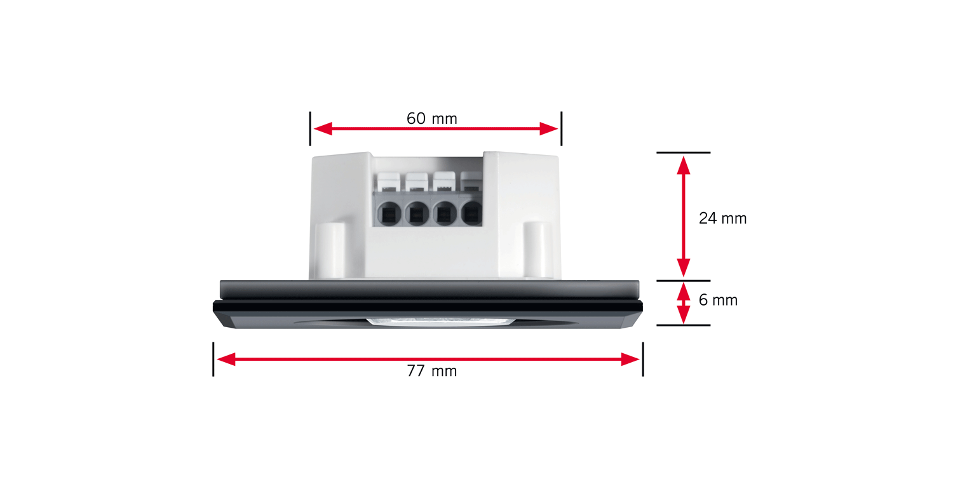

- Dimensions: 77 × 77 × 30 mm, weight: 67 g
- Operating conditions: -25 °C to +50 °C, 5–93% RH (non-condensing)
- Recommended mounting height: 2.5 m, max. 5 m
Important Note
Installation location must be at least 5 m away from radio antennas (e.g. WiFi access points) to avoid interference.
