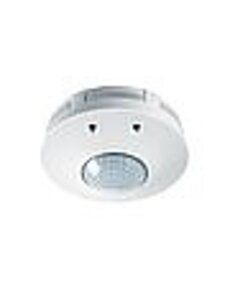

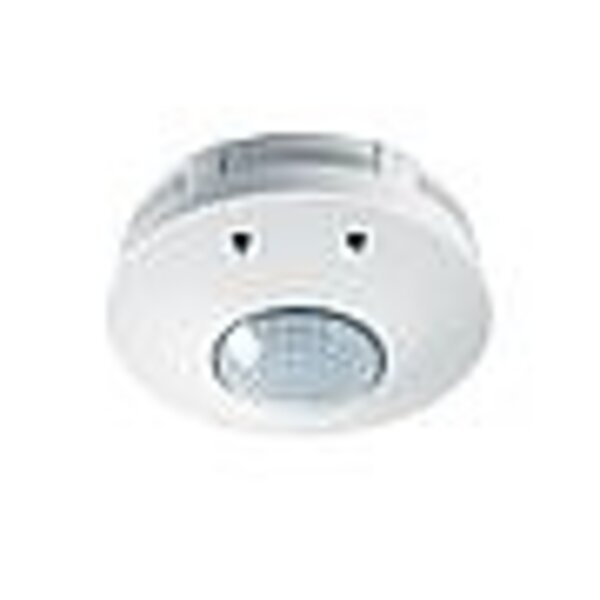

PD-ATMO 360i/8 O AUX 30V KNX – Multisensor (VOC, climate & light)
€411,61 Incl. tax €596,53 Incl. tax. Out of stock, but available
Specifications
Information
PD-ATMO 360i/8 O AUX 30V KNX
Multisensor (VOC, climate & light)
Item No.: EP10427664 | GTIN: 4015120427664
Product Description
The ESYLUX PD-ATMO 360i/8 O AUX 30V KNX is a high-quality ceiling-mounted presence detector and multisensor that monitors multiple environmental parameters, including air quality (VOC), humidity, temperature, acoustics, light, and presence. Designed for professional KNX installations, it is ideal for climate and lighting control applications.
Main Features
- 360° detection angle, detection area up to 50 m²
- Detection of VOC, temperature, humidity, acoustics, light, and presence
- KNX functions: alarm, twilight switch, brightness detection, light-dependent motion detection, scene telegram, night light function (7 colors)
- Presence- and daylight-dependent constant light control
- 2 lighting channels and 1 HVAC channel, each individually adjustable
- Semi-automatic or fully automatic mode
- Adjustable sensitivity, manual operation via KNX input possible
- Adjustable orientation lighting (10–50%, 2 selectable values)
Technical Data
| Mounting type | Flush-mounted in device box Ø 68 mm |
| Installation location | Ceiling |
| Installation dimensions | Depth 24 mm, Ø 60 mm |
| Dimensions | H 74 mm, Ø 108 mm |
| Weight | 150 g |
| Material | UV-stabilised polycarbonate |
| Colour | White (RAL 9010) |
| Protection rating | IP20 |
| Operating temperature | +5 °C to +35 °C |
| Relative humidity | 5–93%, non-condensing |
| Power supply | 24–30 V DC (KNX) |
| Power consumption | 0.3 W |
| Current consumption | 10 mA |
| Standby consumption | < 1 W |
| Detection angle | 360° |
| Detection range (diagonal) | Ø 8 m |
| Detection range (frontal) | Ø 6 m |
| Presence range | Ø 4 m |
| Recommended installation height | 3 m (max. 5 m) |
| Brightness range | 5–2000 lx |
Channels and Functions
- C1 Lighting: switching and dimming, follow-up time 30 s – 720 min
- C2 Lighting: switching and dimming, offset adjustment relative to C1, follow-up time 10 s – 60 min
- C3 HVAC: switching, switch-on delay 120 s – 30 min, follow-up time 60 s – 720 min
Important Note
Installation advice: Maintain a minimum distance of 5 metres from radio antennas (e.g. WiFi access points) to avoid interference.
Compliance and Warranty
- Certifications: CE, EAC, RoHS, WEEE
- Warranty: 5 years
- Scope of delivery: includes lens mask
