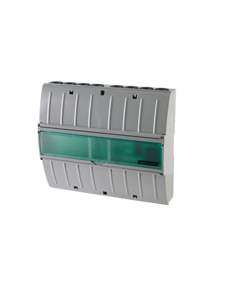

KNX Sun Shading Actuator SA 16MDC.32 SMI LoVo AP | 16 SMI or SMI LoVo
€344,02 Excl. tax
€511,10 Excl. tax
€416,26 Incl. tax €618,43 Incl. tax. Out of stock, but available
€416,26 Incl. tax €618,43 Incl. tax. Out of stock, but available
Controls up to 16 SMI or SMI LoVo drives in 16 groups, with 32 binary inputs. Flexible parameterization, status monitoring, Bluetooth LE, SMI Standard 3.0 certified. Read more
Specifications
Brand:
WAREMA
Article number:
2022212
EAN:
4251317206043
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
KNX Sun Shading Actuator SA 16MDC.32 SMI LoVo AP
16-fold SMI actuator or SMI LoVo, Surface-mounted
art.no. 2022212
Product Description
The KNX Sun Shading Actuator SA 16MDC.32 SMI LoVo AP from WAREMA enables independent control of up to 16 SMI or SMI LoVo drives in up to 16 groups. With flexible application and advanced parameterization, this actuator is suitable for a wide range of KNX building automation applications.
Preconfigured parameters make setup easy and minimize installation errors. Manual priority control via Bluetooth LE simplifies commissioning and maintenance. During waiting periods, the shading remains in the position set by the user; automatic systems do not change this.
Main Product Features
- Individual control of up to 16 SMI or SMI LoVo drives in 16 groups
- SMI Standard 3.0 certified
- Flexible parameterization and preset basic parameters
- Manual priority control via Bluetooth LE
- Extensive status objects for precise monitoring
- Limitation of manual operation possible (e.g. cut-off limit)
- Output type preselection for various shading products
- Highest positioning precision thanks to extensive motor properties
- Support via ETS DCA app and KNX actuator app for smartphones
- Relay for switching off SMI drives (no permanent standby current)
- Up to 32 integrated binary inputs (switching, dimming, blinds, scenes, analysis)
- Replaceable glass fuses to protect cables (per 4 motors)
Technical Data
| Operating voltage | 24 V DC |
|---|---|
| Connection type | Plug terminal |
| Output | 24 V DC |
| Switching capacity per output | 4 A (protected: 4 drives), 16 A (unprotected: 16 drives) |
| SMI interface | Max. 16 x 24 V DC SMI LoVo drives |
| Total cable length drives | 200 m |
| Digital input | 32 x binary input |
| Protection rating | IP 30 |
| Protection class | I |
| Radio interface | Bluetooth LE |
| Mounting type | Surface-mounted (AP) |
| Width | 210 mm |
| Height | 180 mm |
| Depth | 60 mm |
Important Notes
- Only use certified SMI or SMI LoVo drives for proper operation.
- Parameterization and commissioning via ETS software required.
- Manual operation via Bluetooth LE is intended for installation and service.
- Ensure proper installation according to the instructions and protect the device from moisture and dust.
- Glass fuses are replaceable for optimal cable protection.
