ISE KNX RF Multi/TP media coupler or RF repeater
€189,84 Excl. tax
€226,00 Excl. tax
€229,71 Incl. tax €273,46 Incl. tax. In stock (3)
€229,71 Incl. tax €273,46 Incl. tax. In stock (3)
The KNX RF Multi/TP media coupler extends the range of KNX systems and seamlessly connects KNX devices. Supports both KNX RF Ready and KNX RF Multi and can function as a repeater for larger installations. Read more
Specifications
Brand:
ISE
Article number:
3-0002-005
Availability:
In stock (3)
Delivery time:
Will be shipped within 1 to 2 working days.
Information

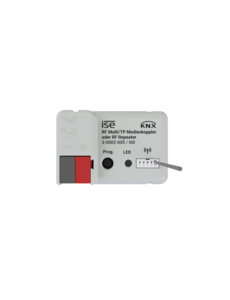

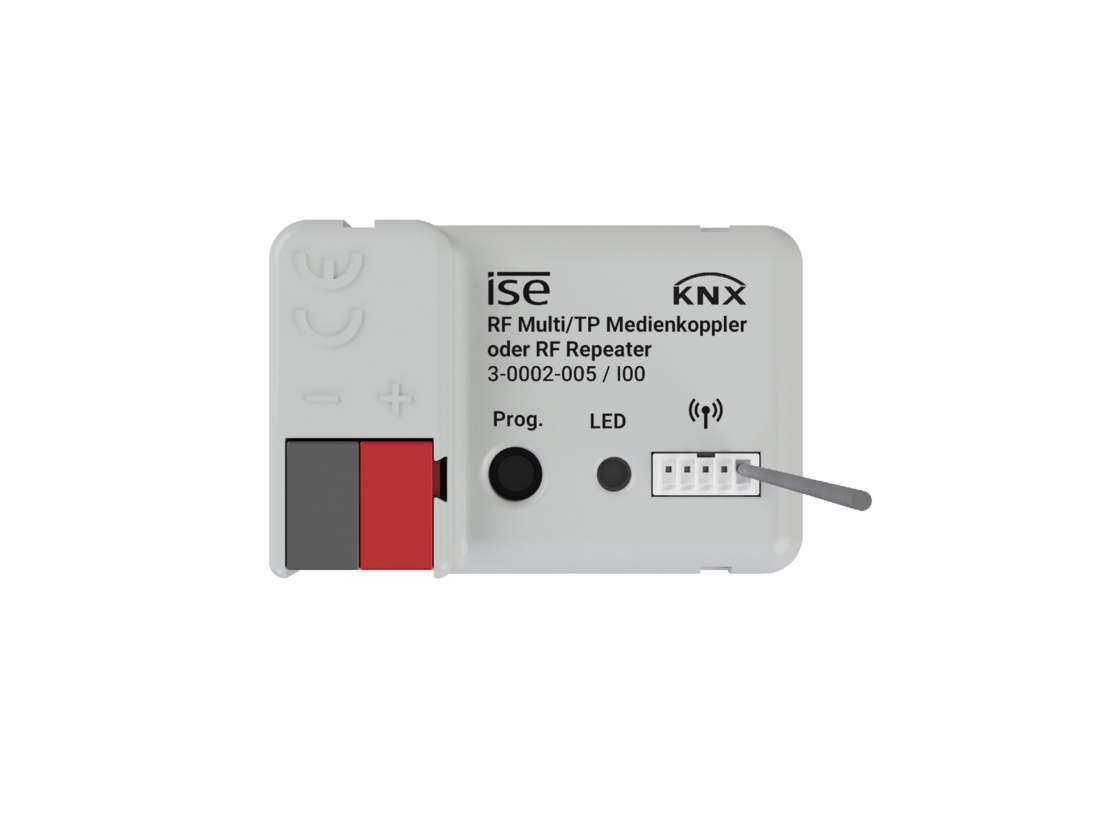

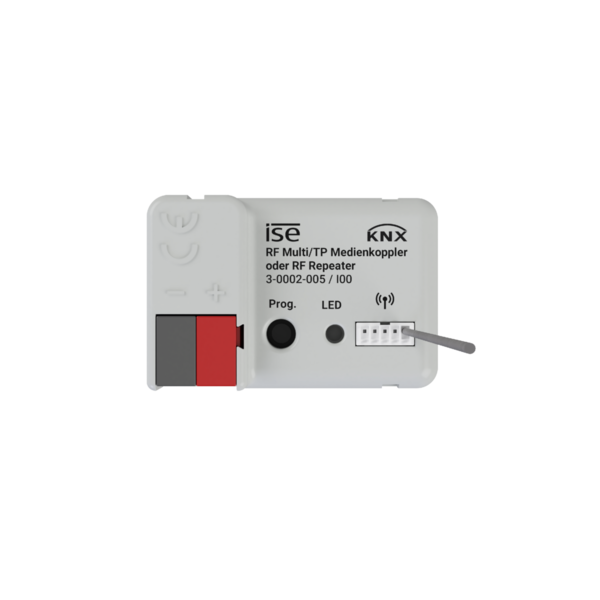

ISE KNX RF Multi/TP Media Coupler or RF Repeater
The KNX RF Multi/TP media coupler is a versatile device designed to expand KNX systems and seamlessly integrate KNX devices. It supports both KNX RF Ready and KNX RF Multi, ensuring a smooth transition to advanced systems. It can also function as a repeater to extend the radio signal range, making it ideal for larger installations or areas with weak signal coverage.
Key Features
- Supports KNX Secure for secure device communication.
- Works with both KNX RF Ready and KNX RF Multi devices.
- Can act as a repeater to increase radio signal range.
- Compatible with ETS6 and ETS5 (KNX RF Ready).
- Allows segmentation and filtering of group addresses.
- LED indicator for easy installation and diagnostics.
Technical Specifications
- Rated voltage: Powered via KNX bus or 24 V SELV
- Current consumption: 8 mA
- KNX communication: KNX/TP, S mode
- Frequencies: RF1.R (Ready) 868.3 MHz, RF1.M (Multi) 868.3 MHz, 868.95 MHz, 869.85 MHz, 869.525 MHz
- Transmission power: Maximum 25 mW
- Transmission range in open field: 100 m (typical)
- Connections: KNX bus connection terminal
- Ambient temperature: -5°C to +45°C
- Dimensions: 43 mm x 29 mm x 16 mm
Note: This device is compatible with ETS6 (KNX RF Multi) or ETS5 (only KNX RF Ready).
