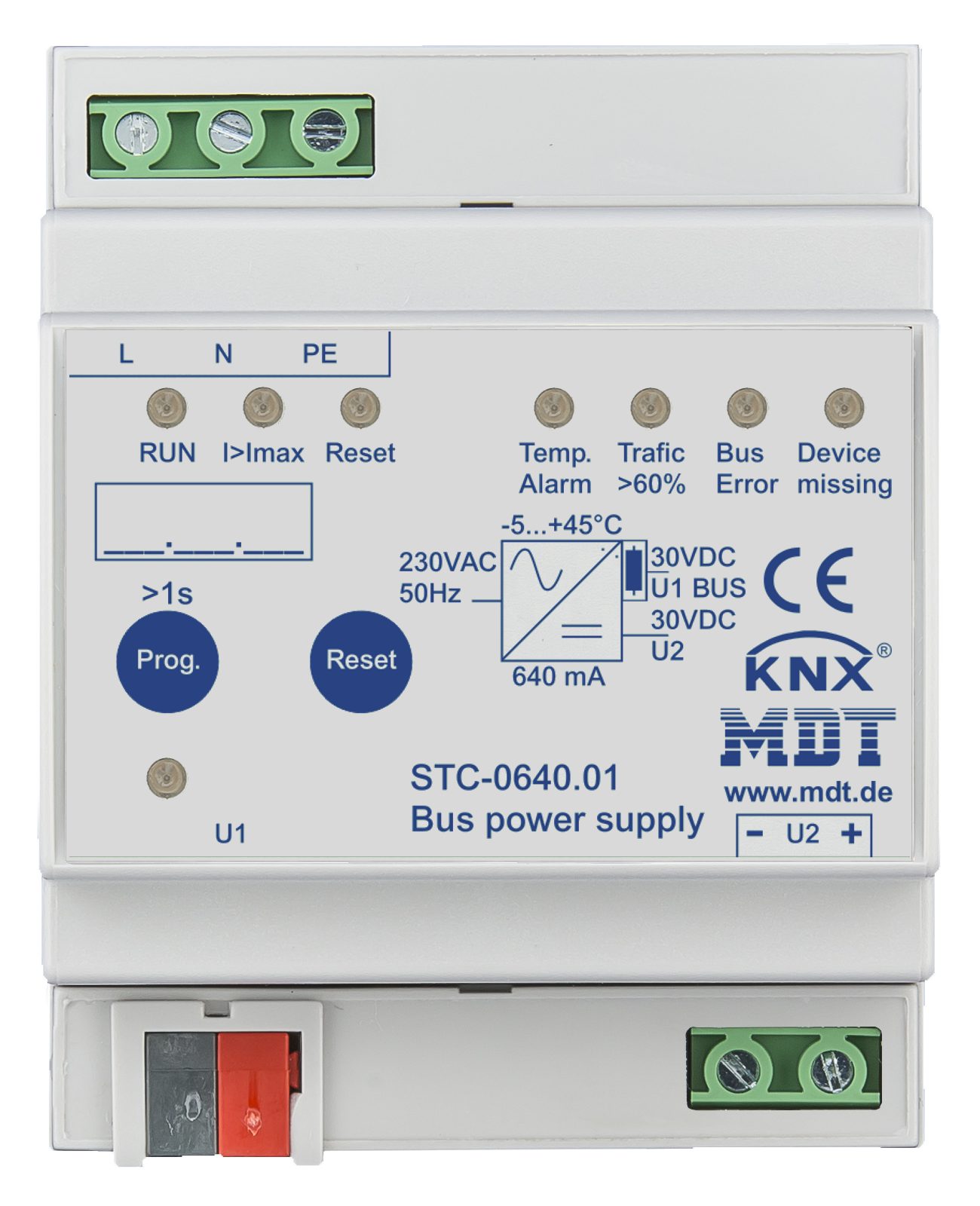

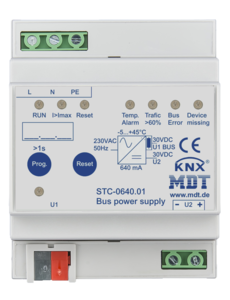

KNX Bus Power Supply | 640 mA, Diagnostic Function

0 Review(s)

€226,85 Excl. tax €349,00 Excl. tax
€274,49 Incl. tax €422,29 Incl. tax. Out of stock, but available

Unit price: €226,85 / Piece

MDT KNX diagnostic power supply with one 640mA output for bus voltage incl. choke and a separate 30V DC output. Includes diagnostics for bus faults and overload. Width: 4TE. Read more

Specifications

Brand:

MDT

Article number:

STC-0640.01

EAN:

4251916100001

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Datasheet

MDT KNX Diagnostic Power Supply 640mA with Separate 30V DC Output

The MDT KNX diagnostic power supply provides a stabilized 30V DC to the KNX bus with a maximum current of 640mA. Additionally, the device offers a separate choke-free 30V DC output for other applications. The integrated diagnostic function monitors bus voltage, bus current, overload, and detects missing devices. All events are stored with a timestamp in an internal ring buffer and can be read out via a 14-byte telegram. Includes diagnostics for bus faults and overloads.

Product Features:

640mA output for KNX bus voltage with choke
Separate 30V DC output without choke
Diagnostic function for bus faults, overloads, and missing devices
Event storage with timestamp in a ring buffer
Ring buffer readout via 14-byte telegram
LED indicators for status and diagnostics
Suitable for DIN rail installation (width: 4 TE)
ISO 9001 certified, made in Germany
3-year warranty

Technical Specifications:

Feature	STC-0640.01
Power supply	230V AC, 50Hz
KNX output voltage	30V DC SELV
Nominal current	640mA
Peak current	1200mA
Extra output	30V DC without choke
Efficiency at nominal load	>85%
Operating temperature	0°C to +45°C
Protection class	IP 20
Dimensions	4 TE

Note: The MDT diagnostic power supply is short-circuit proof, provides protection against overloads and surges, and enhances the safety of your KNX installation.
