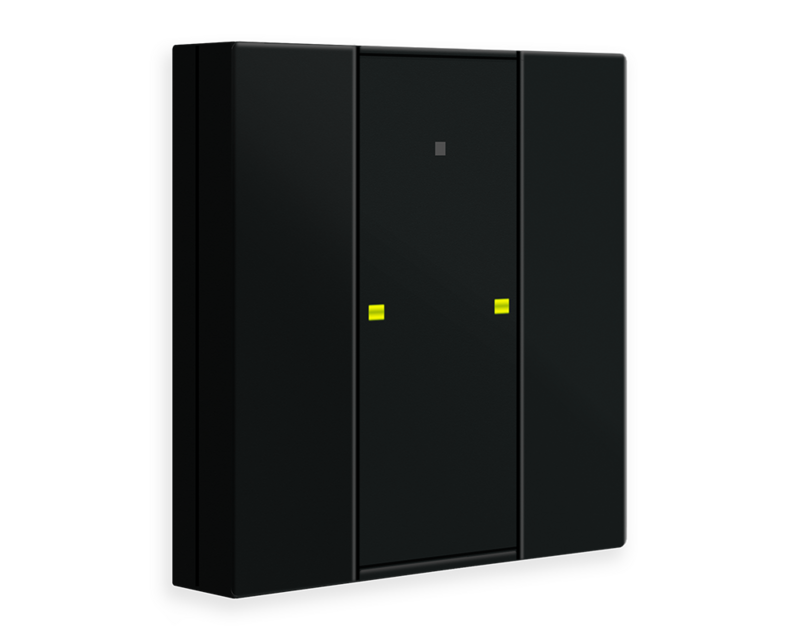

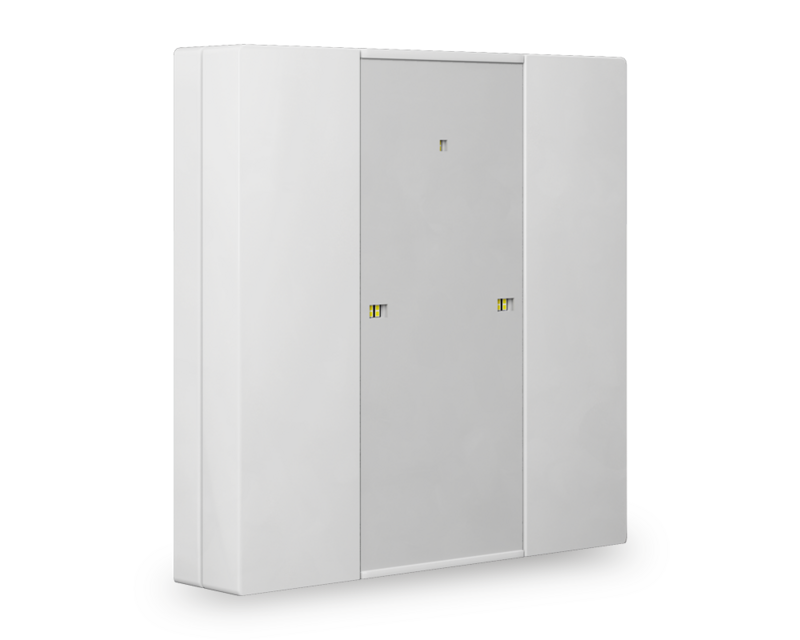

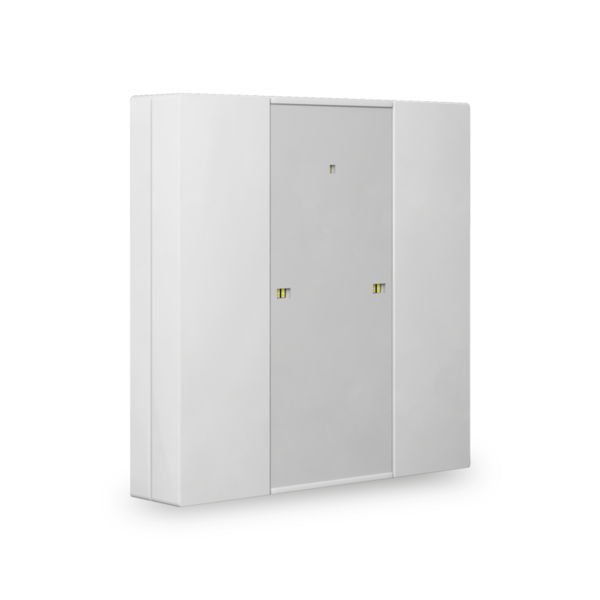

Push Button Plus TS 55 2-fold
€101,46 Incl. tax €156,09 Incl. tax. Out of stock, but available
Specifications
Information
Datasheet (Unfortunately, not all colors may be listed in the PDF.)
Push Button Plus TS 55 2-fold
The Push Button Plus TS 55 2-gang is an innovative KNX push-button, ideal for controlling lighting, blinds, and other functions in a modern home or office environment. The product features a central label frame for easy identification of functions. The push-button is suitable for flush mounting and compatible with various 55 mm switch systems from leading brands such as GIRA, BERKER, JUNG, and MERTEN.
Technical Specifications:
- Operation: 2 buttons, programmable for single or double button operation
- Temperature Sensor: Yes, measuring range 0 to 40 °C
- LEDs: 2 two-colour LEDs (red/green) per button
- Orientation Light: 1 additional orientation light
- Logic Blocks: 4 integrated logic blocks
- Dimensions: 55 x 55 x 13 mm
- Available Colours: white matt, white glossy, black matt
- Protection Rating: IP20
- Ambient Temperature: 0 to 45 °C
- Power Supply: Via KNX bus, <0.3 W consumption
- Mounting: Flush mounting in a standard flush-mounted box with included mounting plate
- Compatibility: Compatible with switch ranges from GIRA (Standard 55, E2, Event, Esprit), BERKER (S1, B3, B7), JUNG (A 500, A PLUS, A CREATION, AS 500, A550, A FLOW), and MERTEN (1M, M-Smart, M-Plan, M-Pure)
Additional Features:
- Programmable functions for controlling lights, dimming, blinds, and values
- Group control with long and extra-long button press
- Switchable values or scenes with up to 4 values
- Support for short/long button press with 2 objects
- LED configuration and priority settings via internal and external objects
- ETS software required for configuration (from ETS5)
- Integrated bus coupling unit
- Label field with protective foil included
- 3-year warranty
Available Article Numbers in This Series:
- BE-TA55T2.02 KNX Push-button Plus 55, 2 gang, white matt
- BE-TA55T2.G2 KNX Push-button Plus 55, 2 gang, white glossy
- BE-TA55T206.02 KNX Push-button Plus 55, 2 gang, black matt
- BE-TA55T4.02 KNX Push-button Plus 55, 4 gang, white matt
- BE-TA55T4.G2 KNX Push-button Plus 55, 4 gang, white glossy
- BE-TA55T406.02 KNX Push-button Plus 55, 4 gang, black matt
- BE-TA55T6.02 KNX Push-button Plus 55, 6 gang, white matt
- BE-TA55T6.G2 KNX Push-button Plus 55, 6 gang, white glossy
- BE-TA55T606.02 KNX Push-button Plus 55, 6 gang, black matt
- BE-TA55T8.02 KNX Push-button Plus 55, 8 gang, white matt
- BE-TA55T8.G2 KNX Push-button Plus 55, 8 gang, white glossy
- BE-TA55T806.02 KNX Push-button Plus 55, 8 gang, black matt
