Push Button Plus TS 55 8-fold
€125,05 Incl. tax €192,39 Incl. tax. Out of stock, but available
Specifications
Information
Datasheet (Unfortunately, not all colors may be listed in the PDF.)

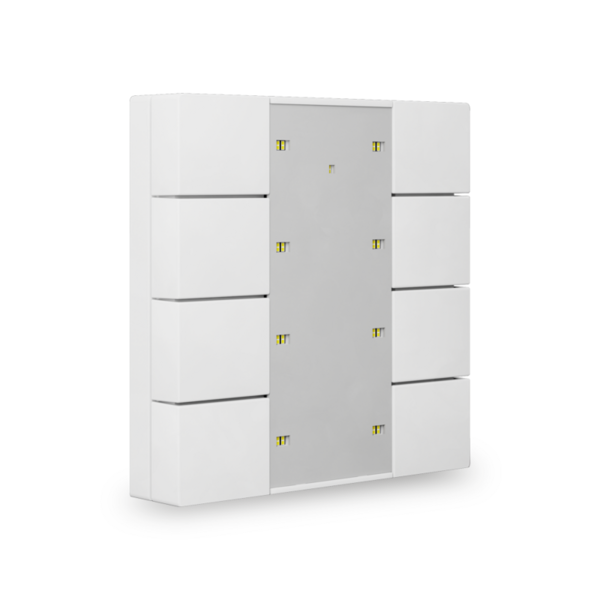

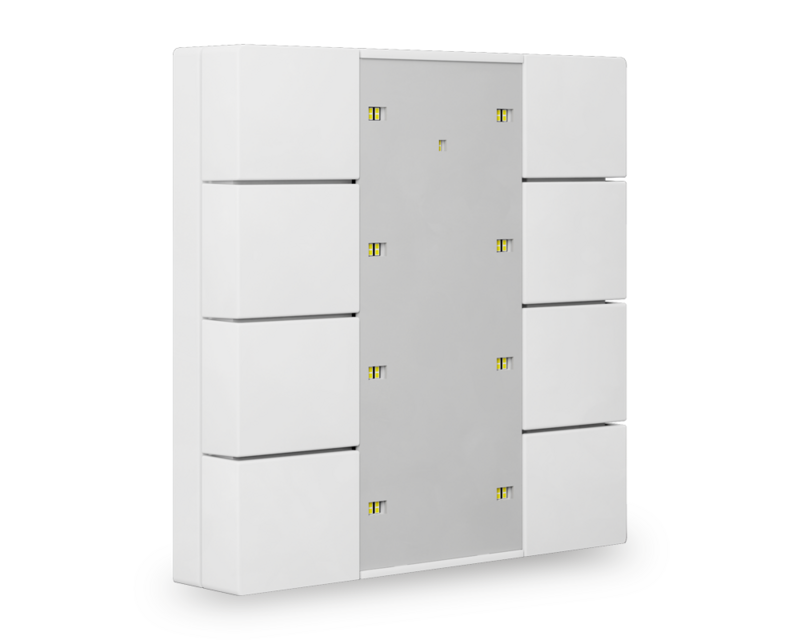

KNX Push-button Plus TS 55 8-fold
- Extended Product Description
The MDT KNX Push-button Plus TS 55 is a high-quality and versatile KNX push-button designed for flush-mounted installation. With 8 configurable buttons, an integrated temperature sensor, and individually adjustable status and orientation LEDs, this push-button offers extensive functionality for various applications such as switching, dimming, blind control, and sending values.
Main Features:
- 8 buttons, each configurable for single- or dual-button operation.
- Built-in temperature sensor to measure room temperature.
- 4 integrated logic blocks for additional functionality.
- Two-color status LEDs (red/green) for each button, plus an orientation light.
- LEDs individually programmable for visual feedback and orientation.
- Central labelling field with protective foil for custom labelling. If the buttons are not labelled, use the included light grey foil to protect the device from dust and dirt.
- Compatible with the 55 mm switch ranges of various leading manufacturers.
- Suitable for switch ranges such as: GIRA Standard 55, E2, Event, Esprit; BERKER S1, B3, B7; JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW; MERTEN 1M, M-Smart, M-Plan, M-Pure.
- Innovative group control with short/long press functionality.
- Installation in a standard flush-mounted box with the included support ring.
- Integrated bus coupler for easy installation and programming via ETS software.
- 3-year warranty. Made in Germany.
Technical Specifications:
- Number of buttons: 8
- Number of two-color LEDs: 8 (red/green)
- Temperature sensor measuring range: 0°C to 40°C
- Orientation LED: 1
- KNX interface: TP-256
- Compatible with ETS 5
- Power supply: via KNX bus
- Power consumption: less than 0.3 W
- Operating temperature range: 0°C to 45°C
- Protection class: IP20
- Dimensions (W x H x D): 55 x 55 x 13 mm
Compatibility:
The Push-button Plus TS 55 fits into the 55 mm switch ranges of leading manufacturers such as:
- MDT Glass cover frame (1-gang, 2-gang, 3-gang)
- GIRA Standard 55, E2, Event, Esprit
- BERKER S1, B3, B7
- JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW
- MERTEN 1M, M-Smart, M-Plan, M-Pure
Available Part Numbers in This Series:
- BE-TA55T2.02 KNX Push-button Plus 55, 2 gang, white matt
- BE-TA55T2.G2 KNX Push-button Plus 55, 2 gang, white glossy finish
- BE-TA55T206.02 KNX Push-button Plus 55, 2 gang, Black matt
- BE-TA55T4.02 KNX Push-button Plus 55, 4 gang, white matt
- BE-TA55T4.G2 KNX Push-button Plus 55, 4 gang, white glossy finish
- BE-TA55T406.02 KNX Push-button Plus 55, 4 gang, Black matt
- BE-TA55T6.02 KNX Push-button Plus 55, 6 gang, white matt
- BE-TA55T6.G2 KNX Push-button Plus 55, 6 gang, white glossy finish
- BE-TA55T606.02 KNX Push-button Plus 55, 6 gang, Black matt
- BE-TA55T8.02 KNX Push-button Plus 55, 8 gang, white matt
- BE-TA55T8.G2 KNX Push-button Plus 55, 8 gang, white glossy finish

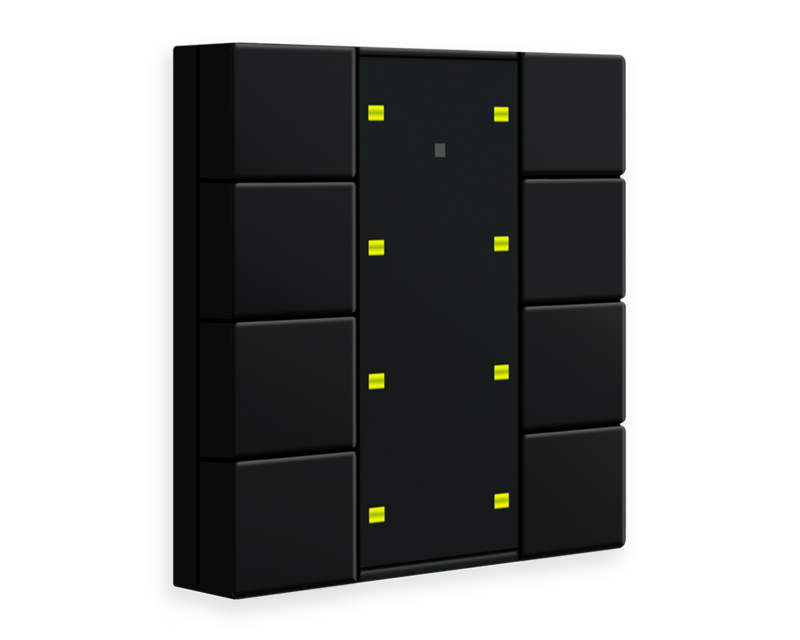

- BE-TA55T806.02 KNX Push-button Plus 55, 8 gang, Black matt
For further information and downloads, visit our website.
