HF 360 KNX recessed presence detector IP20
€155,30 Excl. tax
€261,70 Excl. tax
€187,91 Incl. tax €316,66 Incl. tax. Out of stock, but available
€187,91 Incl. tax €316,66 Incl. tax. Out of stock, but available
HF presence detector for indoor recessed installation. 360° detection, up to 12 m reach, 4 KNX channels. Detects movement through glass, wood and walls. Ideal for washrooms, kitchens and stairwells. Read more
Specifications
Brand:
STEINEL
Article number:
059484
EAN:
4007841059484
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

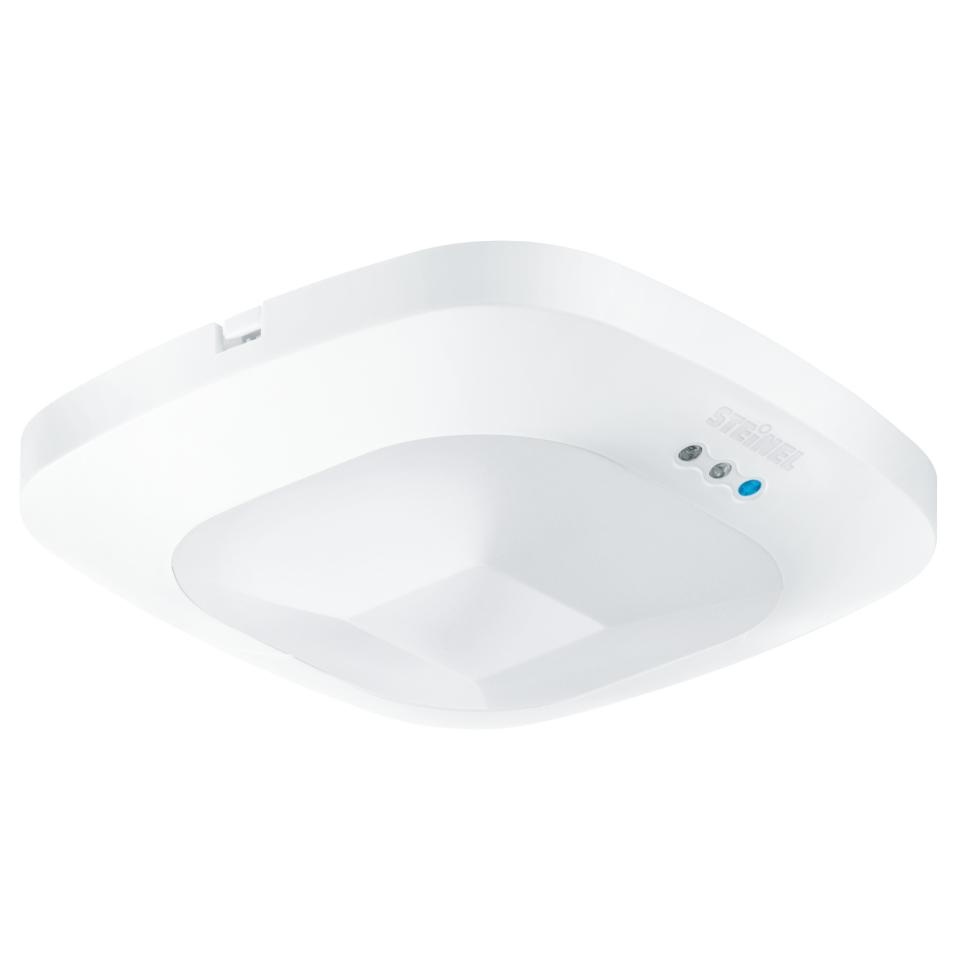

HF 360 KNX Presence Detector – Recessed (IP20)
Part No.: 059484
Professional HF presence detector for indoor use with 360° detection, electronically adjustable range and KNX bus interface. Ideal for WCs with cubicles, changing rooms, stairwells, multi-storey car parks and kitchens. Detects regardless of temperature and senses movement through glass, wood and lightweight walls.
Main Features
- 360° HF sensor technology with adjustable range 1–12 m (tangential, Ø 12 m / 113 m²)
- KNX interface for 4 lighting channels + HVAC control
- Recessed ceiling installation; ideal mounting height 2.5–3.5 m (max. 3.5 m)
- IQ mode and Teach mode for quick commissioning and optimal energy saving
- Detection independent of ambient temperature; senses through glass, wood and light walls
- Configuration via ETS, bus; Smart Remote support (optional)
- IP20, for dry indoor areas
- 5-year manufacturer’s warranty
Applications
- Washrooms / WCs with cubicles and wash areas
- Changing rooms, (emergency) stairwells, corridors
- Kitchens, pantries, ancillary rooms
- Car parks (indoor, dry zones)
Functions
- Presence and motion detection (HF) with 360° coverage
- Electronically adjustable range, can be limited in two directions
- 4 independent KNX lighting channels; additional objects for HVAC
- Energy saving profiles, IQ mode and Teach mode operation
- Fully parameterisable via ETS (thresholds, delay time, sensitivity, daylight-dependent control, etc.)
Technical Data
| Part number | 059484 |
|---|---|
| EAN | 4007841059484 |
| Type | Presence detector (HF) |
| Colour / RAL | White, RAL 9010 |
| Mounting | Recessed, ceiling (concealed wiring) |
| Installation site | Indoors (IP20) |
| IP rating | IP20 |
| Dimensions (L × W × H) | 55 × 120 × 120 mm |
| Weight (PU1) | approx. 0.13 kg |
| Detection angle | 360° (aperture angle 140°) |
| Range, tangential | Ø 12 m (113 m²), electronically adjustable (approx. 1–12 m) |
| Mounting height (ideal / max.) | 2.5–3.5 m / 3.5 m |
| Transmitter power (HF) | < 1 mW |
| Power supply | KNX bus, 30 V DC |
| Current consumption | approx. 30 mA |
| Power consumption | approx. 0.7 W |
| Bus coupling | Integrated |
| Interfaces | KNX TP; 4 lighting channels + HVAC via KNX objects |
| Settings | ETS software, via bus; Smart Remote (optional) |
| Remote control | No (Smart Remote optional) |
| Ambient temperature | −25 … +55 °C |
| Housing material | Plastic |
| Corner/wall mount | Not included |
| Scope of delivery | 1 × sensor |
| Warranty | 5 years |
Important Notes
- For indoor use only (IP20); not suitable for humid or wet zones without additional protection.
- HF sensor also detects through glass, wood and light partitions; adjust the range to avoid unwanted detection from adjacent rooms.
- Maintain mounting height of 2.5–3.5 m for optimal sensitivity and accuracy.
- Configuration and parameterisation via ETS; ensure correct KNX topology and bus power supply (30 V DC).
- Avoid installation near large metal surfaces or sources of interference that may affect HF detection.
