LUXA 103 S360-12 KNX UP – 360° detection, Ø 12 m, IP54, flush-mount
€98,80 Incl. tax €171,82 Incl. tax. Out of stock, but available
Specifications
Information

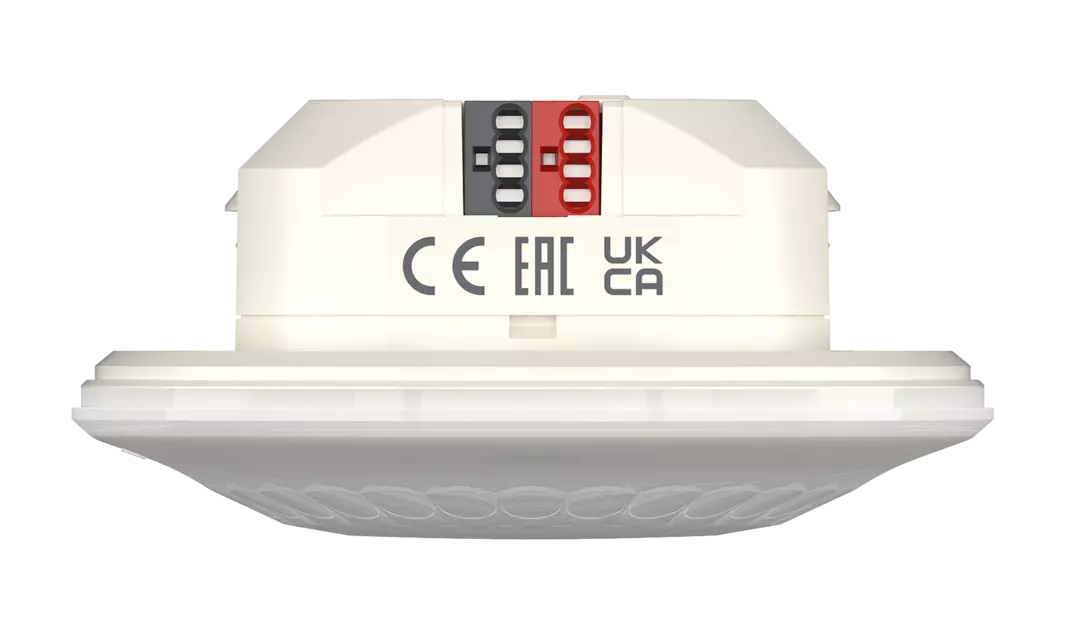

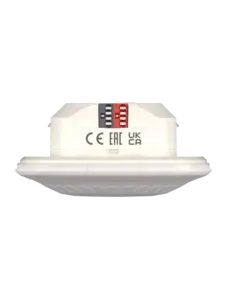

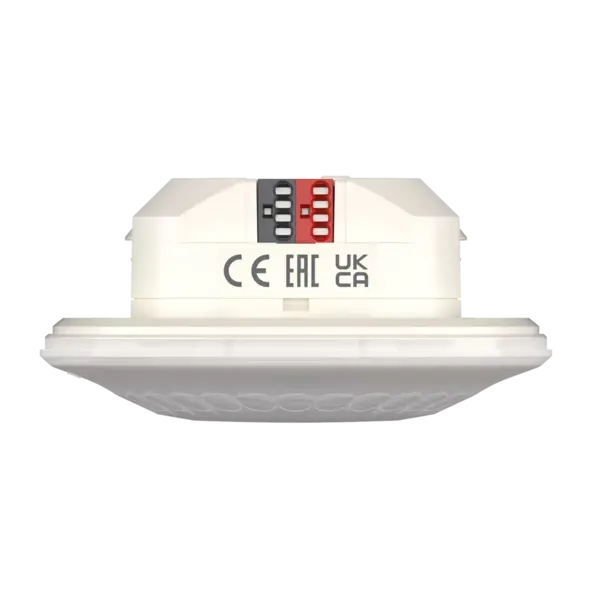

LUXA 103 S360-12 KNX UP WH – PIR Presence Detector
Art. No.: 1039052
Product Description
The LUXA 103 S360-12 KNX UP WH from the LUXA 103 series is an advanced PIR presence detector for indoor ceiling mounting. The device provides a 360° circular detection area with a diameter of 12 meters (113 m²) at 3 m installation height. Specially designed for the KNX bus system, this sensor offers two lighting channels and two presence channels for HVAC control, as well as integrated light measurement and temperature sensor.
Main Features
- PIR presence detector for indoor ceiling mounting
- 360° detection, Ø 12 m (113 m²) at 3 m installation height
- For KNX bus systems
- 2 lighting channels, 2 presence channels (for HVAC)
- Light measurement (range: 5 – 1000 lx) with automatic light control
- Dimmable lighting with or without daylight influence
- Day/night switching via telegram
- Integrated temperature sensor
- Standby (orientation light) functionality
- 3 logic channels (AND/OR/XOR)
- Supports KNX Data Secure
- Fully or semi-automatic operation possible
- Manual override via external KNX pushbuttons
- Adjustable light off-delay: 30 s – 60 min
Technical Specifications
| Detection angle: | 360° |
| Detection range: | Ø 12 m (113 m² at 3 m height) |
| Light measurement range: | 5 – 1000 lux |
| Connection type: | KNX bus terminal |
| Mounting: | Ceiling flush mounting |
| Light off-delay: | 30 seconds – 60 minutes (adjustable) |
| Supported lamp types: | Energy-saving lamps, fluorescent lamps, incandescent lamps, halogen lamps, LEDs |
| Colour: | White |
| Protection rating: | IP54 |
| Operating temperature: | -5 °C to +45 °C |
| Power supply: | Via KNX bus |
Important Note
The LUXA 103 S360-12 KNX UP WH is intended for indoor use only and ceiling mounting. With its large detection area and flexible settings, this sensor is ideal for offices, schools, meeting rooms, corridors, and other spaces where energy-efficient and intelligent presence detection is required. For proper operation and maximum service life, installation must follow KNX and Theben guidelines.
