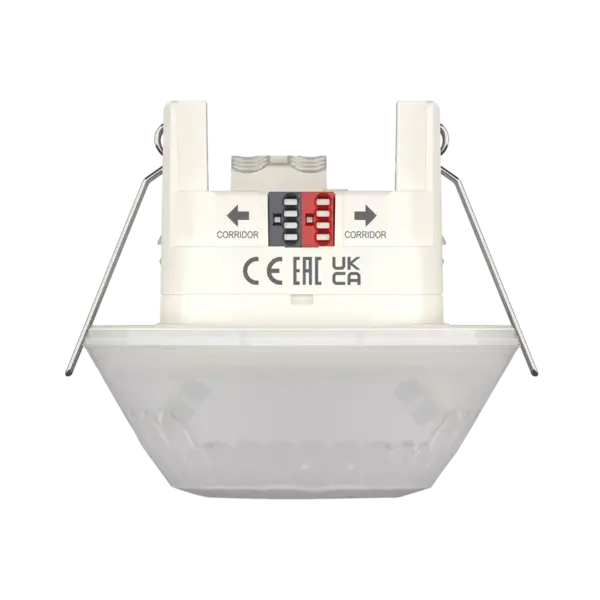

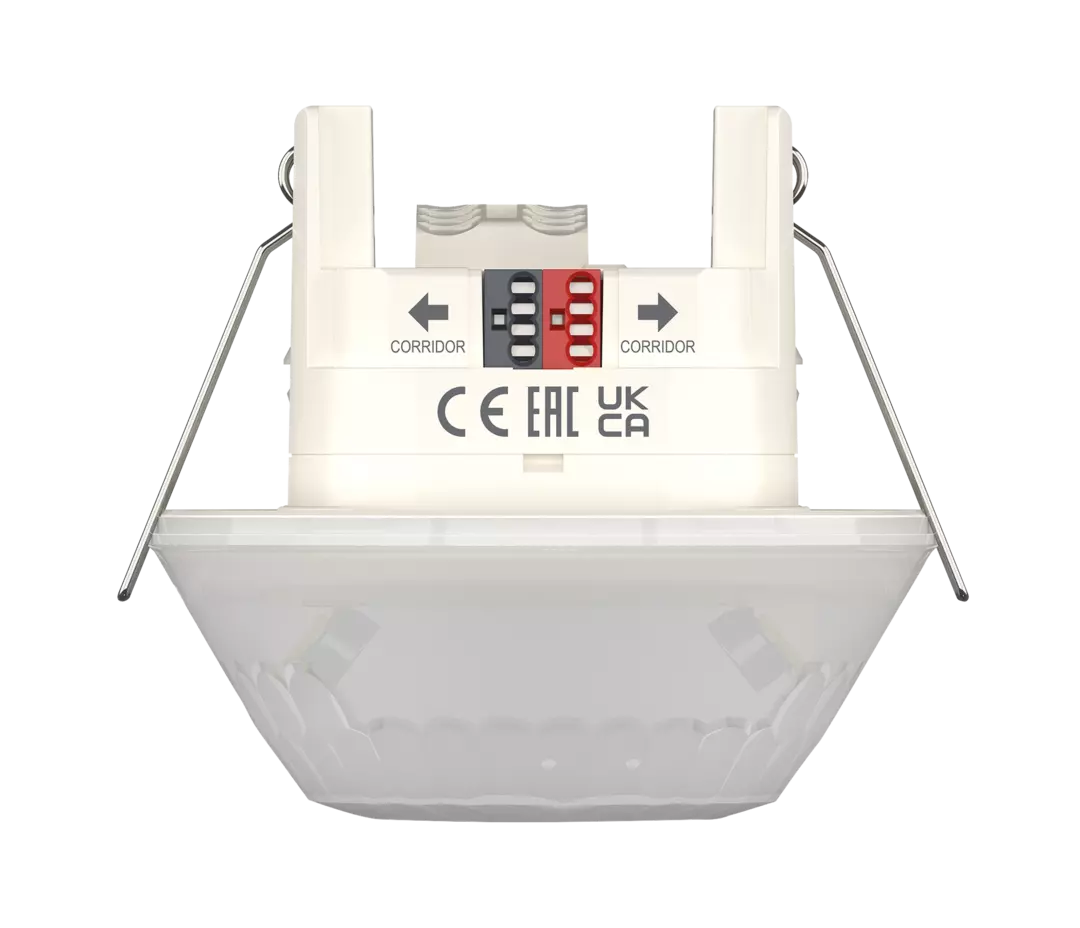

LUXA 103 S360-28 KNX DE WH – Corridor, presence, spring clips, 28×5m
€129,41 Incl. tax €225,06 Incl. tax. Out of stock, but available
Specifications
Information
LUXA 103 S360-28 KNX DE WH
Presence Detector for Corridors with Spring Clips
Art. No.: 1039073
Product Description
The LUXA 103 S360-28 KNX DE WH is a high-quality PIR presence detector for ceiling installation in corridors. With a rectangular detection area of 28 x 5 meters (up to 140 m² at a mounting height of 3 meters), this sensor is ideal for efficient light and presence control in commercial buildings.
- Suitable for KNX bus systems
- Ceiling installation with spring clips
- Rectangular detection area: 28 x 5 m
- 2 light channels and 2 presence channels for HVAC control
- Automatic lighting control with constant light regulation or switching mode
- Dimmable lighting with or without daylight influence
- Integrated temperature sensor
- Day/night switching via telegram
- Stand-by functionality (orientation light)
- 3 logic channels (AND/OR/XOR)
- KNX Data Secure support
- Manual override possible via external KNX pushbuttons
- Fully or semi-automatic operation
- Easy adjustment of light measurement
Technical Specifications
| Mounting height | 2 – 4 m (optimal: 3 m) |
|---|---|
| Minimum height | 1.7 m |
| Detection angle | 360° |
| Detection area | 28 x 5 m (max. 140 m²) |
| Light measurement range | 5 – 1000 lux |
| Connection | KNX bus terminal |
| Mounting type | Ceiling installation with spring clips |
| Color | White |
| Protection class | IP54 (when properly installed) |
| Operating temperature | -15°C to +50°C |
| Supply voltage | via KNX bus |
Applications
- Corridors and hallways
- Offices
- Schools
- Public buildings
- Hospitals
Important Notes
- IP54 protection only when installed according to the manual.
- Equipped with spring clips for fast ceiling installation.
- For indoor use only.
- KNX programming knowledge required for configuration.
