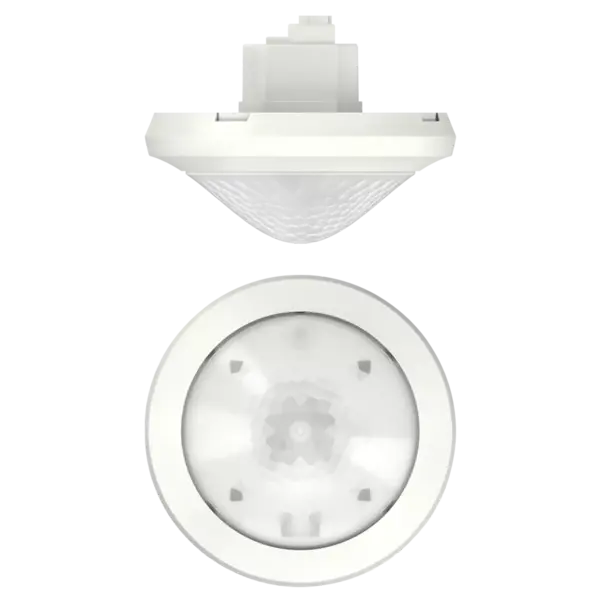

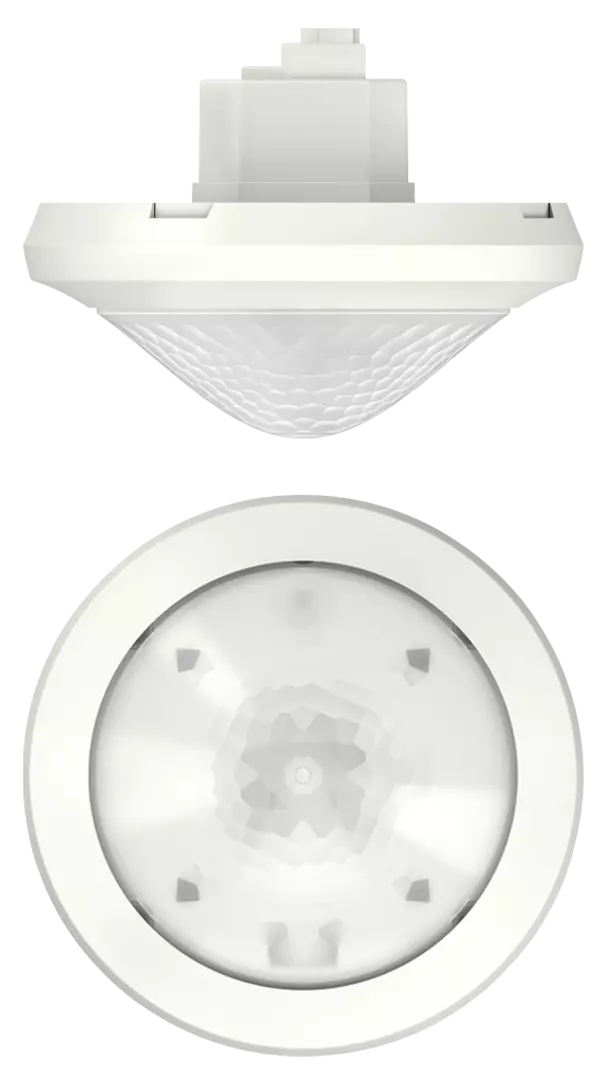

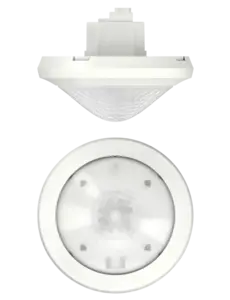

theRonda P360 KNX UP WH – Presence detector, 360°, Ø24m, ceiling
€164,22 Incl. tax €285,60 Incl. tax. Out of stock, but available
Specifications
Information
theRonda P360 KNX UP WH – Presence Detector, 360°, Ø24m, ceiling
Item no. 2089000
Application
The theRonda P360 KNX UP WH is an advanced KNX passive infrared presence detector for ceiling installation. Ideal for energy-saving and intelligent lighting and climate control in offices, meeting rooms, schools, corridors, and other large spaces.
Features
- Round detection area of 360° up to Ø24 m (max. 452 m²)
- 2 light channels (C1, C2) with 1 light measurement
- 2 presence channels individually adjustable with offset
- Adaptive single-channel light measurement and mixed light measurement
- Suitable for LEDs, fluorescent, energy-saving, halogen, and incandescent lamps
- Fully or semi-automatic operation, switchable
- Switching or constant light control with stand-by function
- Dimmable lighting in switching mode with stand-by function
- Light level and desired value adjustable via KNX parameter, object, or remote control
- Teach-in of light level or desired value
- Room correction factor adjustable for optimum light measurement
- Adjustable light and presence hold time (light: 30 s – 60 min, presence: 10 s – 120 min)
- Adjustable presence switch-on delay (10 s – 30 min / inactive)
- Self-learning hold time, short presence function, and scene functions
- Parallel operation possible in Master/Slave or Master/Master configuration
- Manual control via KNX telegram or remote control
- Adjustable detection sensitivity
- Test mode for checking function and detection range
- Limiting detection area by masking segments possible
Technical Specifications
- Mounting height: 2 – 10 m (max. 15 m, min. 1.7 m)
- Detection area: 360°, Ø24 m (max. 452 m²)
- Light measurement range: 30 – 3000 lx
- Connection: KNX bus terminal
- Lamp types: LEDs, energy-saving, fluorescent, halogen, and incandescent lamps
- Light measurement: Mixed light measurement
- Light hold time: 30 s – 60 min
- Presence hold time: 10 s – 120 min
- Presence switch-on delay: 10 s – 30 min / inactive
- Operating temperature: -15°C to +50°C
- Color: White
- Protection class: IP54 (installed)

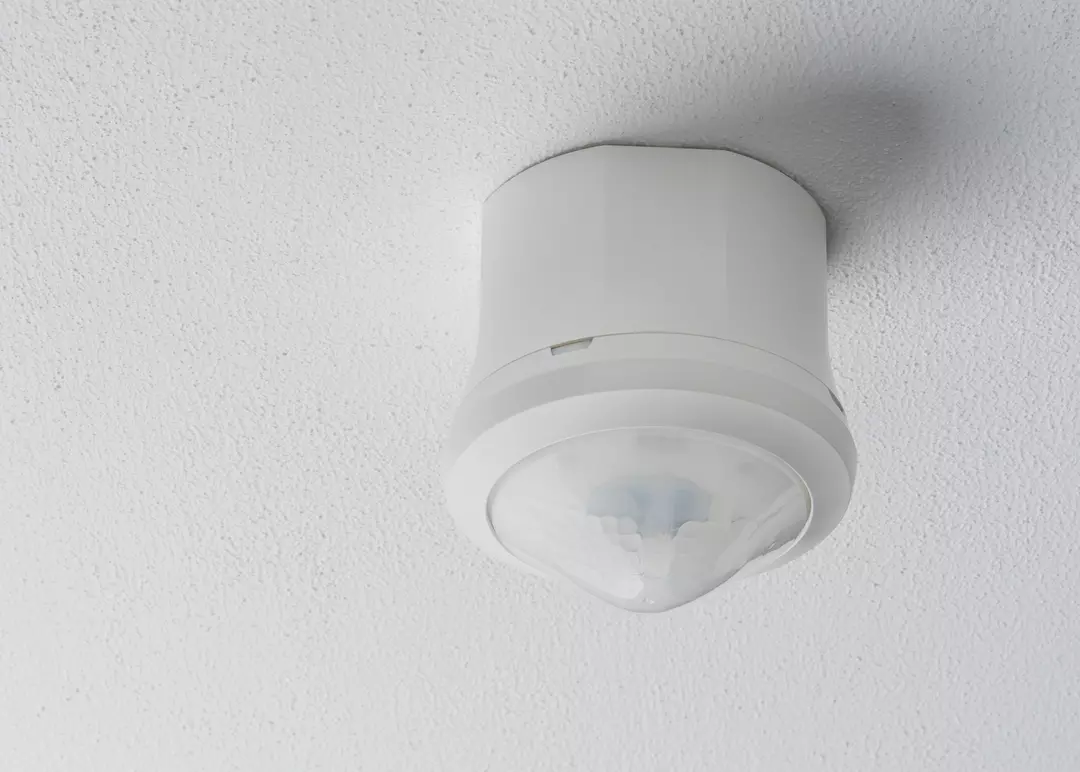

- Mounting: Ceiling installation (surface mounting possible with accessory)
