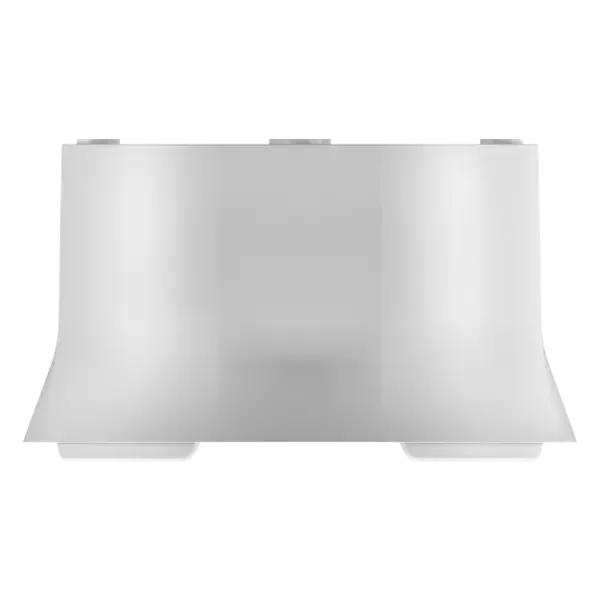

Surface-mounted housing 110A – for presence detectors
€14,34 Excl. tax
€24,89 Excl. tax
€17,35 Incl. tax €30,12 Incl. tax. Not in stock in our warehouse, but available to order.
€17,35 Incl. tax €30,12 Incl. tax. Not in stock in our warehouse, but available to order.
Surface frame for presence detectors. Compatible with thePrema, theRonda and theMova P. Available in white, black and grey. Read more
Specifications
Brand:
Theben
Article number:
9070912
EAN:
7612748004900
Availability:
Not in stock in our warehouse, but available to order.
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
Surface-Mounted Housing 110A – for thePrema, theRonda and theMova P
Available variants:
| Model | Color | Art. No. |
|---|---|---|

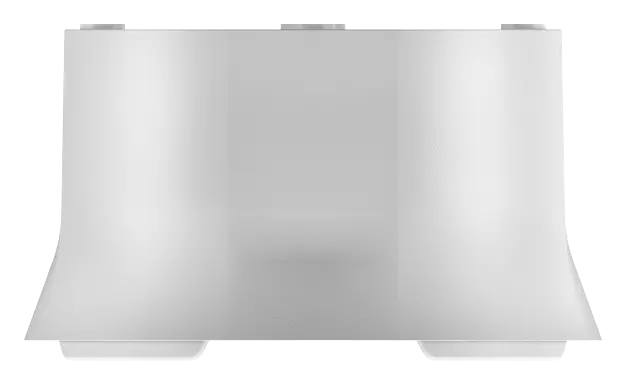

| Surface Housing 110A WH | white | 9070912 |

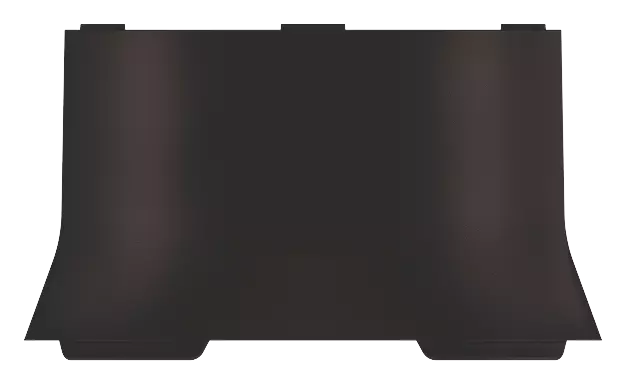

| Surface Housing 110A BK | black | 9070600 |

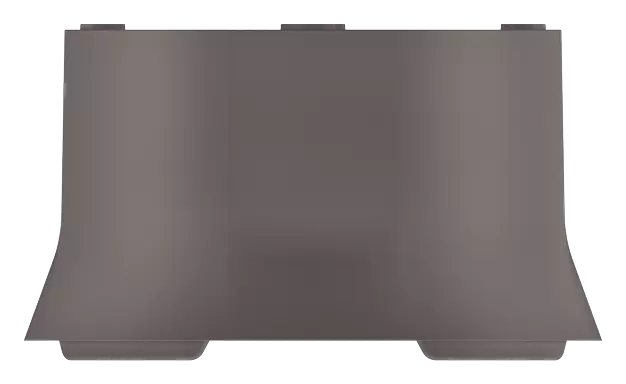

| Surface Housing 110A GR | grey | 9070913 |
Application
The 110A surface-mounted housing is specifically designed for ceiling installation of Theben presence detectors. Ideal for applications where flush mounting is not possible, such as concrete ceilings or renovation projects.
Features
- Compatible with presence detectors from the thePrema, theRonda and theMova P series
- For ceiling surface mounting
- Sleek and discreet design
- Available in three color options (WH, BK, GR)
- Quick and secure installation
Technical data
| Mounting type: | Ceiling surface mounting |
| Compatible devices: | thePrema, theRonda, theMova P |
| Material: | Impact-resistant plastic |
| Color variants: | White (WH), Black (BK), Grey (GR) |
| Protection rating: | IP20 (depending on sensor and installation) |
| Ambient temperature: | -5 °C to +45 °C |
| Dimensions (Ø x H): | approx. 103 mm x 27 mm |
| Weight: | approx. 60 g |
Important notes
- Only to be used with original Theben presence detectors.
- Not suitable for outdoor use or damp environments.
- Protection rating (IP20) depends on correct sensor installation.
