thePrema P360 KNX UP PIR sensor 360°, 10x10 m, 3x light, 2x pres.
€175,67 Incl. tax €305,51 Incl. tax. Out of stock, but available
Specifications
Information
thePrema P360 KNX UP Presence Detector
Available Variants

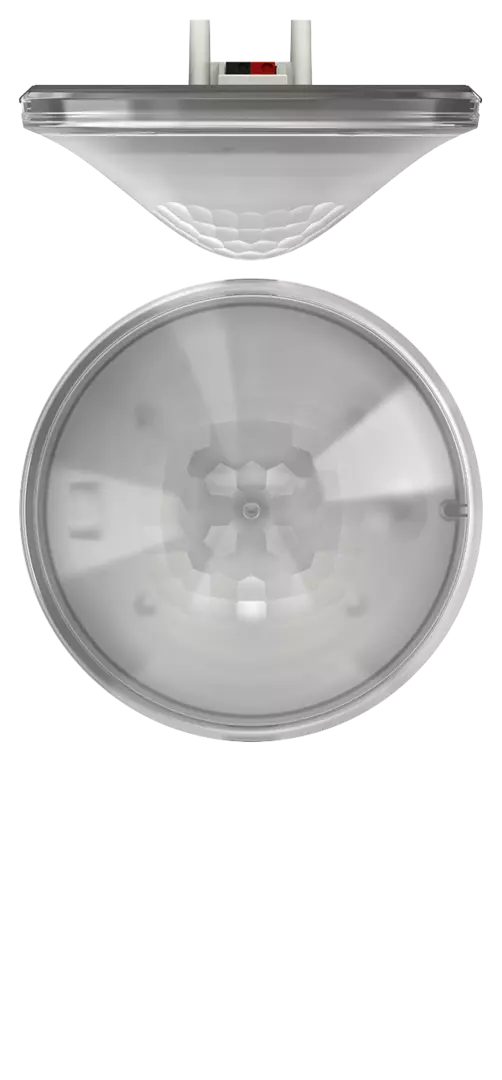

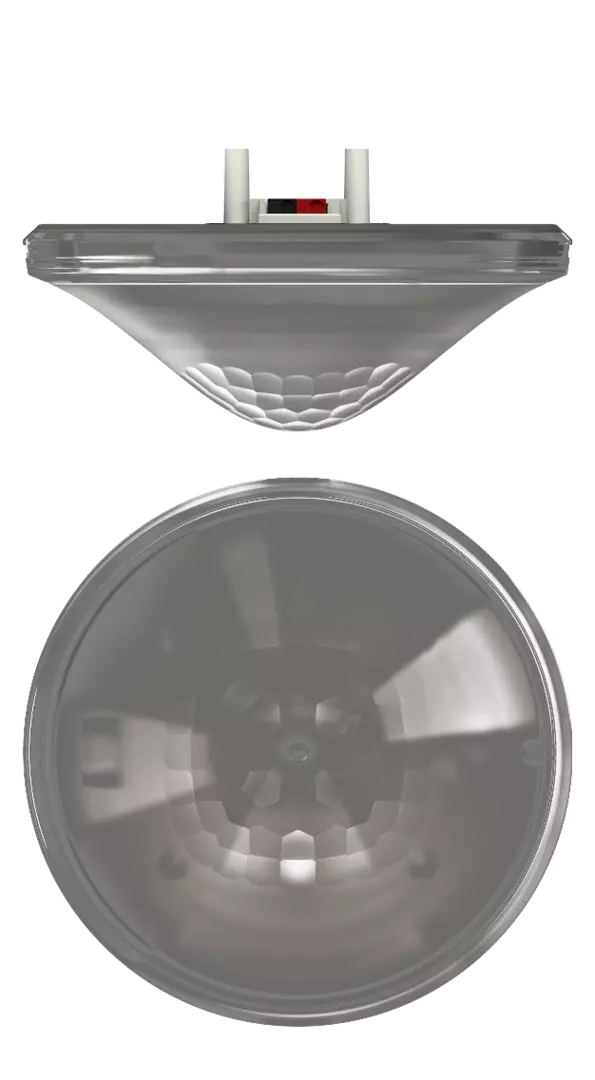

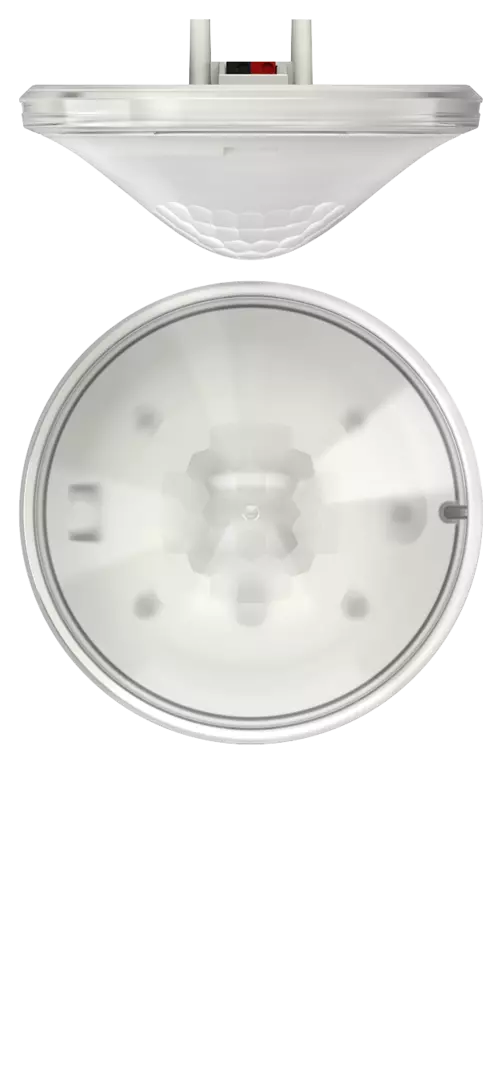

thePrema P360 KNX UP WH – colour white – Item No.: 2079000 thePrema P360 KNX UP GR – colour grey – Item No.: 2079001 thePrema P360 KNX UP BK – colour black – Item No.: 2079002
Application
The thePrema P360 KNX UP is a high-performance KNX presence detector with passive infrared technology for ceiling mounting. With a square detection area of 360° (up to 100 m²), it is ideal for offices, classrooms, and meeting rooms. It supports energy-efficient lighting control with adaptive light measurement, configurable channels, and extensive automation functions.
Features
- KNX passive infrared presence detector for ceiling installation
- 360° square detection area (10 x 10 m, up to 100 m²)
- 3 light channels (C1, C2 with light measurement, C3 without light-dependent switch-off)
- 2 independently adjustable presence channels
- Adaptive 3-channel light measurement with mixed light detection
- Suitable for LEDs, fluorescent lamps, halogen and incandescent lamps
- Switchable between fully or semi-automatic operation
- Operating modes: switching or constant light control with standby function
- Dimmable lighting in switch mode
- Teach-in function for switch-on or target lux value
- Remote control and KNX object-based configuration
- Room correction factor adjustable for compensation of light measurement
- Adjustable light and presence delay times
- Adjustable detection sensitivity per channel
- Self-learning presence delay with shortening for brief presence
- Scene functions and “eco plus” energy-saving mode
- Test mode for checking function and detection coverage
- Parallel operation as Master/Slave or Master/Master supported
- Supports user and service remote control (optional)
- Room monitoring possible
Technical Data
| Mounting height: | 2 – 10 m |
| Minimum mounting height: | 1.7 m |
| Detection angle: | 360° |
| Detection range: | 81 m² (9.0 x 9.0 m) |
| Light measurement range: | 5 – 3000 lx |
| Light measurement type: | Mixed light detection |
| Connection type: | WAGO 243 terminal |
| Mounting type: | Ceiling mount |
| Light delay time: | 30 s – 60 min |
| Presence delay time: | 10 s – 120 min |
| Presence switch-on delay: | 10 s – 30 min / inactive |
| Lamp types: | Energy-saving, fluorescent, LED, halogen, incandescent |
| Ambient temperature: | 0 °C to +50 °C |
| Colour: | See variants |
| Protection rating: | IP 40 (installed) |
Important Notes
- All functions are fully configurable via ETS (KNX software)
- For use in dry indoor areas only – ceiling installation required
- Correct lux threshold setting is essential for proper operation
- Warranty terms available at: www.theben.de/en/guarantee
