theRonda S360 KNX UP WH – PIR ceiling flush mount, 360°, Ø8m, KNX
€104,12 Incl. tax €181,09 Incl. tax. Out of stock, but available
Specifications
Information

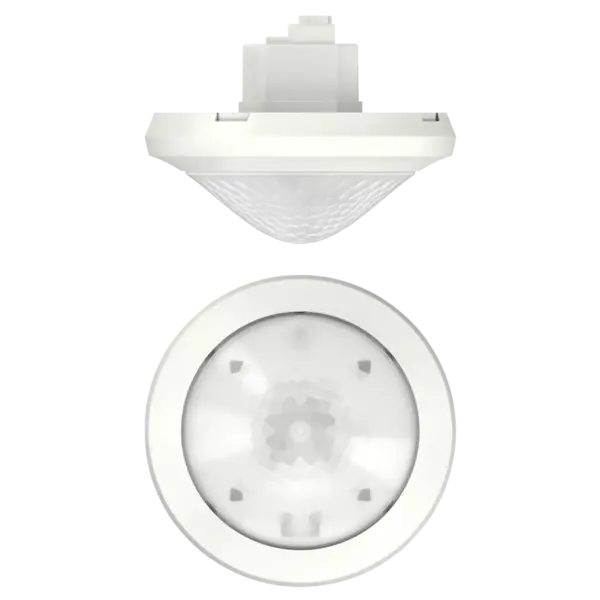

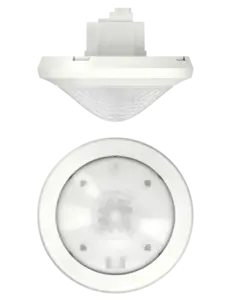

theRonda S360 KNX UP WH – PIR Presence Detector for Ceiling Flush Mount
Item no. 2089520
Application
The theRonda S360 KNX UP WH is an advanced passive infrared (PIR) presence detector for flush ceiling mounting indoors, suitable for use in KNX building automation systems. Ideal for energy-efficient and intelligent lighting and climate control in offices, meeting rooms, schools, corridors, and other commercial spaces.
Features
- PIR presence detector for KNX with flush ceiling mounting
- 360° circular detection area, Ø8m (50 m²) at 3m mounting height
- 2 lighting channels (with 1 light measurement), automatic or manual control
- 2 presence channels, perfect for HVAC control
- Automatic lighting control: constant light regulation or switching mode
- Dimmable lighting possible, with or without daylight influence
- Stand-by function (orientation light) for additional energy savings
- Fully or semi-automatic operation, configurable via ETS software
- Manual override via external KNX pushbutton possible
- Mixed light measurement for precise light detection
- Easy correction of light measurement via parameters
- Short presence function and selectable regulation speed
- Teach-in function for light values, scene functions, and blocking functions
- Adjustable detection sensitivity
- Detection area extension via Master/Slave or Master/Master configuration
- Test mode for function and detection range verification
- Configuration via ETS software, remote control, or app (BLE)
Technical specifications
- Mounting height: 2 – 4 m (min. 1.7 m)
- Detection angle: 360°
- Detection area: Ø8 m (max. 50 m² at 3 m height)
- Light measurement range: 10 – 3000 lx
- Light follow-up time: 30 s – 60 min (adjustable)
- Presence follow-up time: 10 s – 120 min (adjustable)
- Presence switch-on delay: 10 s – 30 min or inactive (adjustable)
- Connection type: KNX bus terminal
- Mounting type: Ceiling flush mounting
- Light measurement: Mixed light measurement
- Ambient temperature: -15°C to +50°C
- Color: White
- Protection rating: IP54 (when installed)
Important notes
- Only suitable for use in KNX bus systems and indoor spaces.
- Always consult the official Theben installation manual for correct operation.
- Optimal performance at mounting heights between 2 and 4 meters.
- The actual detection area may vary depending on the environment and installation location.
- All functions configurable via ETS software, remote control, or app.
