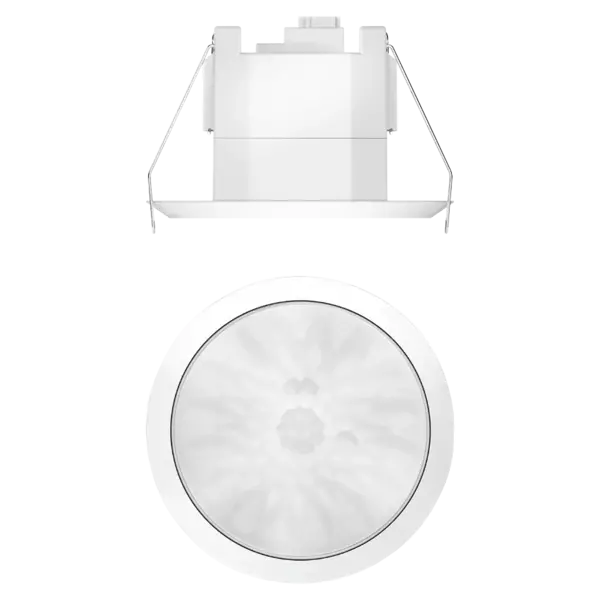

theRonda S360 KNX FLAT DE WH – Presence detector, 360°, Ø9m, flush

Name: Theben theRonda S360 KNX FLAT DE WH – Presence detector, 360°, Ø9m, flush
Brand: Theben
Price: 98.05 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€98,05 Excl. tax €170,53 Excl. tax
€118,64 Incl. tax €206,34 Incl. tax. Out of stock, but available

Unit price: €98,05 / Piece

KNX ceiling flush-mounted presence detector, 360° detection up to Ø9m, automatic light and presence control, mixed light measurement, dimmable, IP54, white. Read more

Specifications

Brand:

Theben

Article number:

2089560

EAN:

7612748006416

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Theben website

theRonda S360 KNX FLAT DE WH – Ceiling-mounted presence detector

Item no. 2089560

Application

The theRonda S360 KNX FLAT DE WH is an advanced passive infrared presence detector for flush ceiling mounting, designed for KNX building automation. This model is ideal for energy-efficient and intelligent lighting and climate control in offices, meeting rooms, schools, corridors, sanitary areas, and other indoor spaces.

Features

Passive infrared presence detector for flush ceiling installation
360° circular detection range, up to Ø 9 m (max. 64 m²)
Automatic presence and brightness-dependent control of lighting and HVAC
Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen, incandescent and LEDs
2 light channels (C1, C2) for switching or constant light control, each with stand-by function (orientation light)
Dimmable lighting in switching mode with stand-by function
Fully or semi-automatic operation (adjustable)
Light threshold and desired brightness adjustable in lux via parameter, object or remote control
Teach-in (learning) of light threshold and desired brightness
Reduction of delay time possible for short presence
Manual override possible via KNX telegram or remote control
2 presence channels (C4, C5), individually configurable
Adjustable switch-on delay and delay time (light: 30 s – 60 min; presence: 10 s – 120 min)
Room correction factor for light measurement compensation adjustable
Adjustable detection sensitivity
Test mode for function and detection range verification
Scene function (for setting different lighting scenarios)
Parallel connection of multiple presence detectors possible (Master/Slave or Master/Master)
User remote control «theSenda S» (optional)
Management remote control «SendoPro868-A» (optional)
Installation remote control «theSenda P» (optional)

Technical specifications

Mounting height: 2 – 4 m (minimum 1.7 m)
Detection angle: 360°
Detection range: up to Ø 9 m (max. 64 m², typically 50 m² at Ø 8 m)
Light measurement range: 10 – 3000 lx
Light delay time: 30 s – 60 min (adjustable)
Presence delay time: 10 s – 120 min (adjustable)
Presence switch-on delay: 10 s – 30 min / inactive (adjustable)
Connection type: KNX bus terminal
Mounting type: Flush ceiling mounting
Lamp types: Energy-saving lamps, fluorescent lamps, incandescent lamps, halogen lamps, LEDs
Light measurement: Mixed light measurement
Ambient temperature: -15°C to +50°C
Color: White
Protection class: IP54 (when installed)
Dimensions: approx. Ø 103 x 56 mm
Weight: approx. 110 g

Important notes

Only suitable for use in KNX systems and exclusively for indoor areas.
Always consult the manufacturer's manual for correct operation and installation.
Remote controls are available as options.
The detection range depends on the mounting height and environment.
