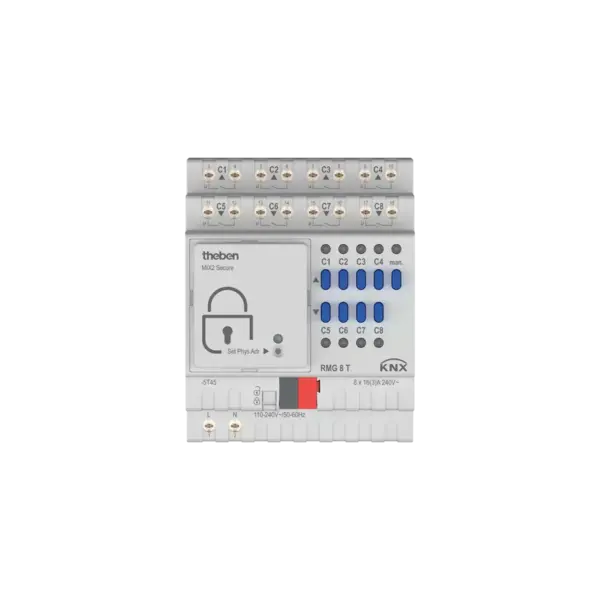

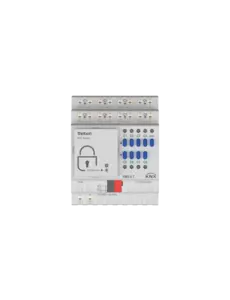

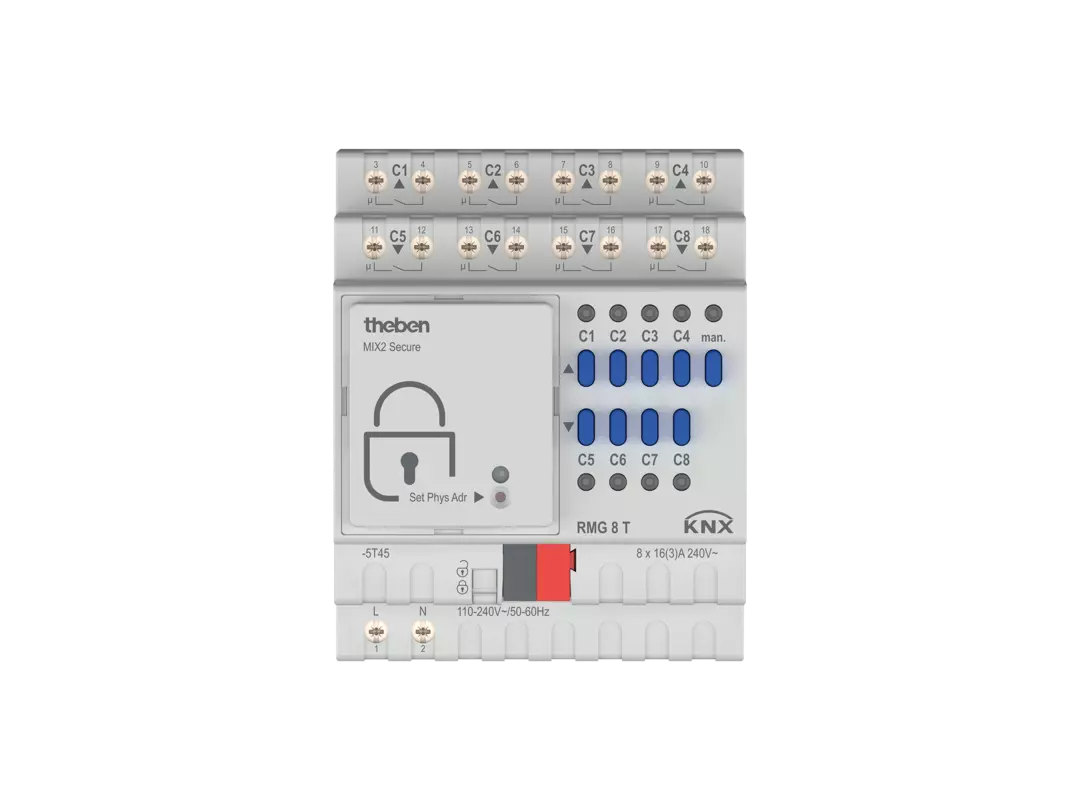

RMG 8 T KNX | 8-ch switch/4-ch blind 16 A base module MIX2
€233,43 Excl. tax
€405,96 Excl. tax
€282,45 Incl. tax €491,21 Incl. tax. Out of stock, but available
€282,45 Incl. tax €491,21 Incl. tax. Out of stock, but available
Base module with 8x switching (16 A) or 4x blind channels. Flexible use, expandable to 24 channels. Manual control and status LEDs. Suitable for standard loads, KNX Data Secure. Read more
Specifications
Brand:
Theben
Article number:
4930200
EAN:
4003468490815
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
RMG 8 T KNX | 8-channel switch actuator / 4-channel blind actuator
Article number: 4930200
Application
The Theben RMG 8 T KNX is a versatile KNX base module from the MIX2 series. It can be configured as an 8-channel switch actuator or a 4-channel blind actuator, ideal for controlling lighting, blinds, roof windows, or ventilation flaps in KNX building automation systems. It is DIN rail mountable and expandable with up to two MIX or MIX2 extension modules for a total of up to 24 channels.
Functions
- 8 switching outputs (make contacts) or 4 blind outputs
- Flexible channel configuration: switching or blind control
- Manual operation directly on the device, even without bus voltage
- Status LEDs for each channel
- Removable KNX bus module can be replaced without reprogramming
- Supports KNX Data Secure for encrypted communication
- Allows switching of different mains phases
- Potential-free contacts rated for standard loads up to 16 A
- Equipped with screw terminals and KNX bus connector
Technical specifications
| KNX operating voltage | Bus voltage, ≤ 4 mA |
| Operating voltage | 110–240 V AC, 50–60 Hz |
| Max. power loss | 6.4 W |
| Standby power consumption | approx. 0.3 W |
| Number of channels | 8 (switching) or 4 (blind) |
| Contact type | Make contact, 16 A nominal, 3 A inductive |
| Contact gap | < 3 mm |
| Switching output | Potential-free |
| Max. inrush current | 800 A / 200 µs |
| Incandescent/halogen lamp load | 2000 W |
| Fluorescent lamp load (conventional ballast, parallel compensated) | 1300 W (140 µF) |
| Fluorescent lamp load (conventional ballast, uncompensated) | 2000 VA |
| Fluorescent lamp load (electronic ballast) | 1200 W |
| Energy-saving lamps | 300 W |
| LED < 2 W | 55 W |
| LED 2–8 W | 600 W |
| LED > 8 W | 600 W |
| Output voltage | 240 V AC |

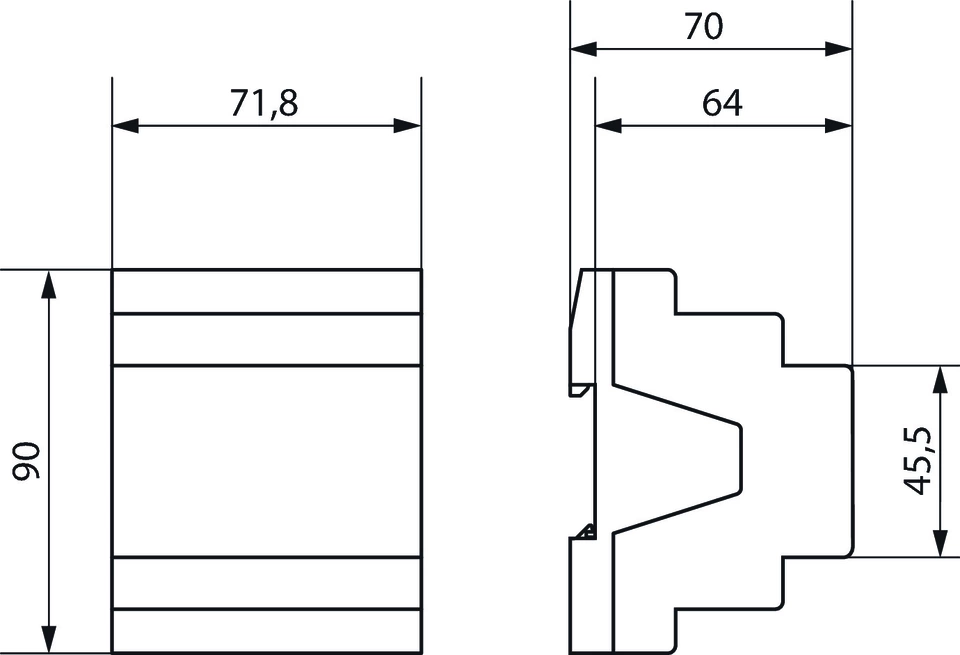

| Mounting | DIN rail, 4 modules |
| Connections | Screw terminals, KNX bus terminal |
| Cable cross-section | Solid: 0.5–6 mm², stranded with ferrule: 0.5–4 mm² |
| Ambient temperature | -5 °C to +45 °C |
| Protection class | IP 20 |
| Protection category | Class II according to EN 60669 |
| KNX Data Secure | Yes |
Important notes
- The stated 16 A switching current applies to resistive loads only. For inductive loads (e.g. motors), the max. permissible current is approx. 3 A.
- Switching different mains phases is supported. Always observe local installation regulations.

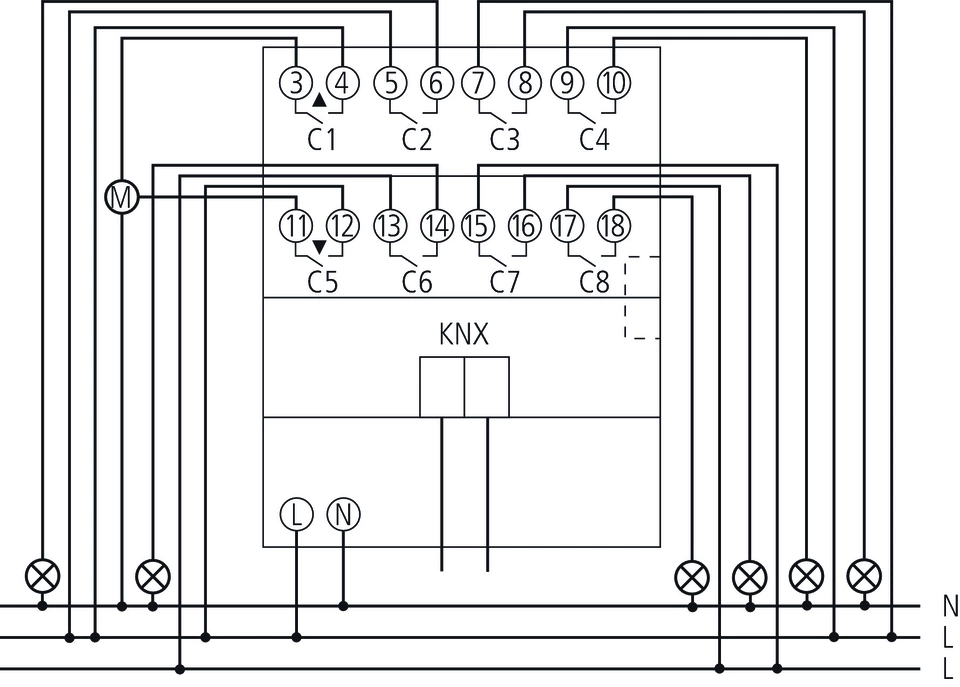

- When used as a blind actuator, two outputs are combined per motor, resulting in 4 blind channels total.
- All functions are available via manual control even without a KNX bus module.
Important note: This device is a base module from the MIX2 system. To expand up to 24 channels, up to two MIX or MIX2 extension modules can be connected.
