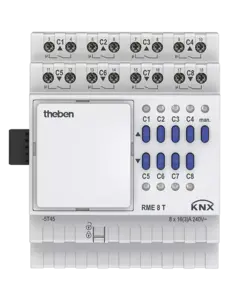

RME 8 T KNX | 8-ch switch/4-ch blind 16 A extension module MIX2
€152,63 Excl. tax
€265,45 Excl. tax
€184,68 Incl. tax €321,19 Incl. tax. Out of stock, but available
€184,68 Incl. tax €321,19 Incl. tax. Out of stock, but available
8-channel switch or 4-channel blind actuator (16 A), MIX2 extension module. Only for use with a MIX2 base module. Supports KNX Data Secure. Read more
Specifications
Brand:
Theben
Article number:
4930205
EAN:
4003468490822
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Due to the holidays, orders may be delayed and pickup is not possible.
Information

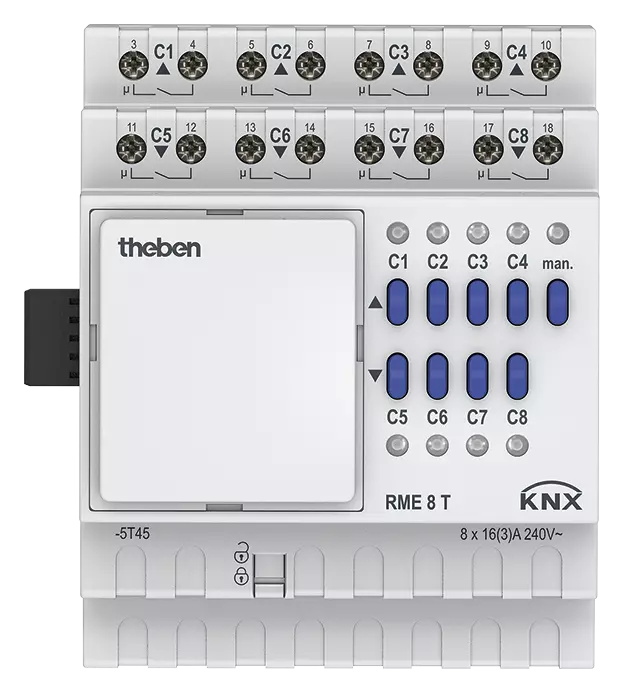

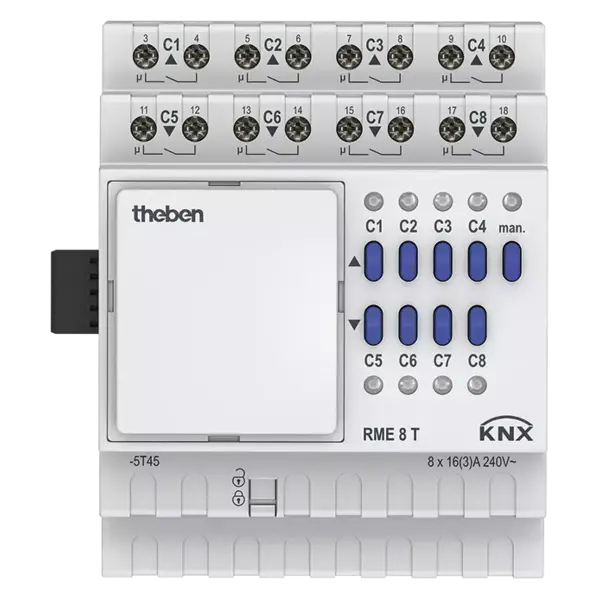

RME 8 T KNX – 8-channel switch / 4-channel blind actuator, MIX2 extension module
Part number: 4930205
Application
The RME 8 T KNX from Theben is an extension module of the MIX2 system and functions as an 8-channel switch actuator or 4-channel blind actuator (16 A). It is designed to expand existing MIX2 installations and requires a MIX2 base module. With flexible channel assignment, it is suitable for switching lighting or controlling drives for blinds, sunshades, roof windows or ventilation flaps.
Functions
- Extension module for the MIX2 system
- 8 switching outputs (16 A) or 4 blind channels
- Flexible function assignment per channel
- Easy expansion up to 24 channels with MIX2 base module
- Supports central commands and scene control
- LED switching status indicator for each channel
- Manual operation per channel, even without bus voltage
- Configurable functions such as delayed switching, pulse, staircase lighting with pre-warning
- Logic functions: AND, OR, lock, release
- Supports KNX Data Secure
Technical data
- Mounting: DIN rail

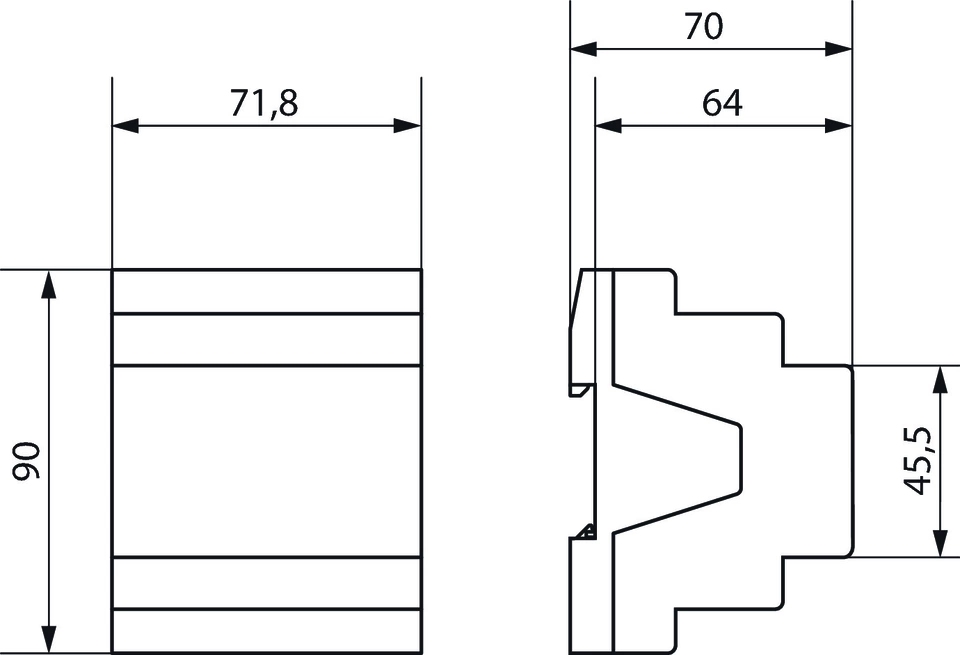

- Width: 4 modules (TE)
- Channels: 8 switch channels or 4 blind channels
- Contact type: Normally open contact, 16 A, 3 A
- Switching outputs: Potential-free
- Max. inrush current: 800 A / 200 µs
- Max. LED load: 600 W per channel
- Incandescent/halogen load: 2000 W
- Fluorescent load (conventional ballast, parallel compensated): 1300 W (140 µF)
- Fluorescent load (conventional ballast, uncompensated): 2000 VA
- Fluorescent load (electronic ballast): 1200 W
- Compact fluorescent lamps: 300 W
- LED lamps < 2 W: 55 W
- LED lamps 2–8 W / > 8 W: 600 W
- Output voltage: 240 V AC
- Frequency: 50/60 Hz

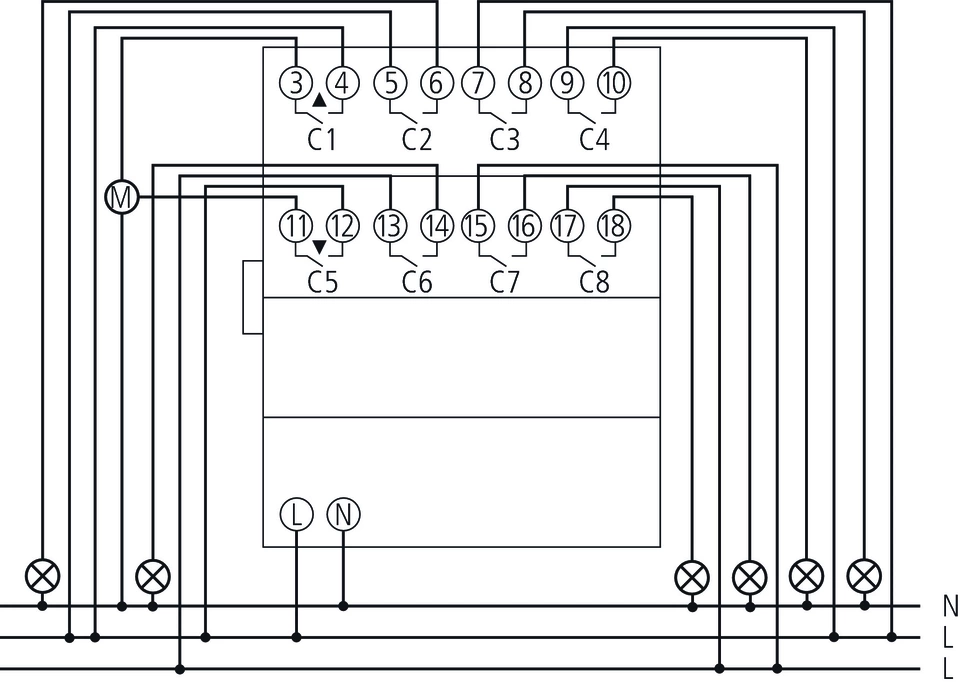

- Connections: Screw terminals | KNX bus terminal
- Cable cross-section: Solid 0.5–6 mm² | with ferrule 0.5–4 mm²
- Suitable for SELV: Yes, if all channels switch SELV
- Switching of different phases: Possible
- Operating temperature: -5 °C to +45 °C
- Protection class: IP20
- Protection category: II according to EN 60 669
Important note: This module is an extension module and does not operate independently. The RME 8 T KNX can only be used in combination with a MIX2 base module.
