HME 6 T KNX | 6-ch heating actuator 24–240 V AC MIX2 extension
€127,83 Excl. tax
€222,32 Excl. tax
€154,67 Incl. tax €269,01 Incl. tax. Out of stock, but available
€154,67 Incl. tax €269,01 Incl. tax. Out of stock, but available
6-channel heating actuator with P/PI control for heating/cooling. MIX2 extension module, controls 6 thermal actuators. Only works with a MIX2 base module. Read more
Specifications
Brand:
Theben
Article number:
4930245
EAN:
4003468490198
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

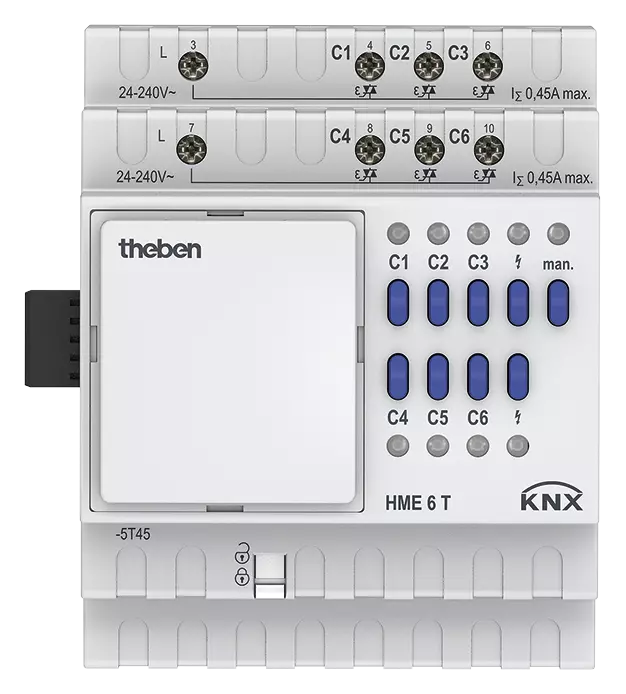

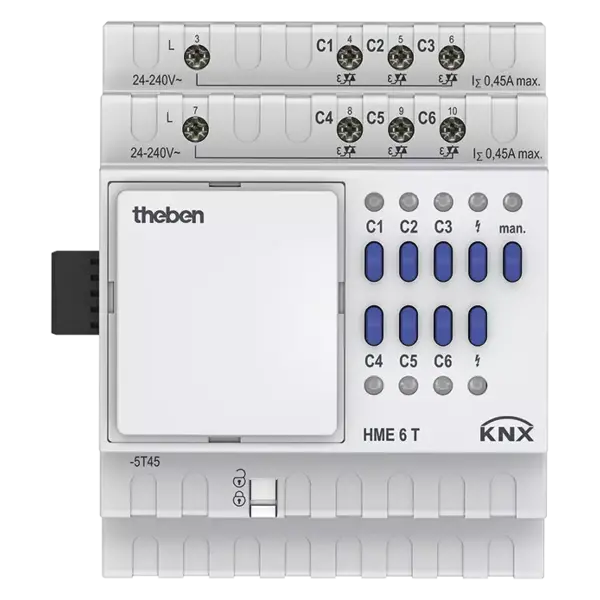

HME 6 T KNX – 6-Channel Heating Actuator, MIX2 Extension Module
Article number: 4930245
Application
The Theben HME 6 T KNX is a 6-channel heating/cooling actuator designed as an extension module within the MIX2 system. It controls up to 6 thermal actuators (24–240 V AC) and is suitable for KNX installations in residential and commercial buildings, supporting both heating and cooling operations.
Important note
This module only operates in combination with a MIX2 base module. The HME 6 T KNX cannot function independently. A maximum of two MIX or MIX2 extension modules can be connected to one base module.
Functions
- 6-channel heating actuator (triac outputs, 0.45 A per channel)
- One P/PI controller per channel for heating and cooling
- Controls 6 thermal actuators 24–240 V AC in 2 groups of 3 outputs
- Automatic short-circuit and overload protection
- Selectable output type: constant or switching
- Deactivatable valve protection function
- Operating modes: Comfort, Stand-by, Night, Frost/Overtemperature protection
- Summer mode switching available
- Removable KNX bus module enables device replacement without reprogramming
- Manual operation possible even without KNX bus voltage
- LED status display for each channel
Technical specifications
- Standby consumption: approx. 0.2 W
- Mounting: DIN rail (4 modules)
- Number of channels: 6
- Connection type: Screw terminals
- Max. cable diameter:
- Solid: 0.5 mm² (Ø 0.8) to 6 mm²
- Stranded with ferrule: 0.5 mm² to 4 mm²
- Switching outputs: not potential-free
- Output type: Triac, 0.45 A
- Output voltage: 24–240 V AC, 50–60 Hz
- Suitable for SELV: Yes, if all channels switch SELV
- Switching of different phases: possible
- Ambient temperature: -5 °C to +45 °C
- Protection class: IP 20
- Protection category: II according to EN 60 669
Important note: This module is only usable in combination with a MIX2 base module. The HME 6 T KNX cannot operate independently.
