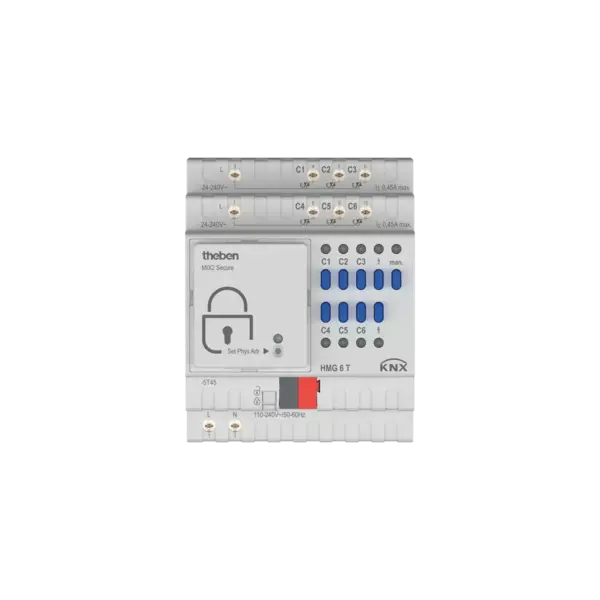

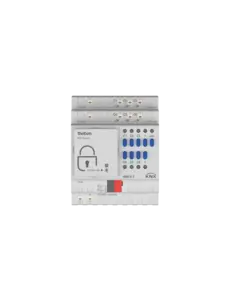

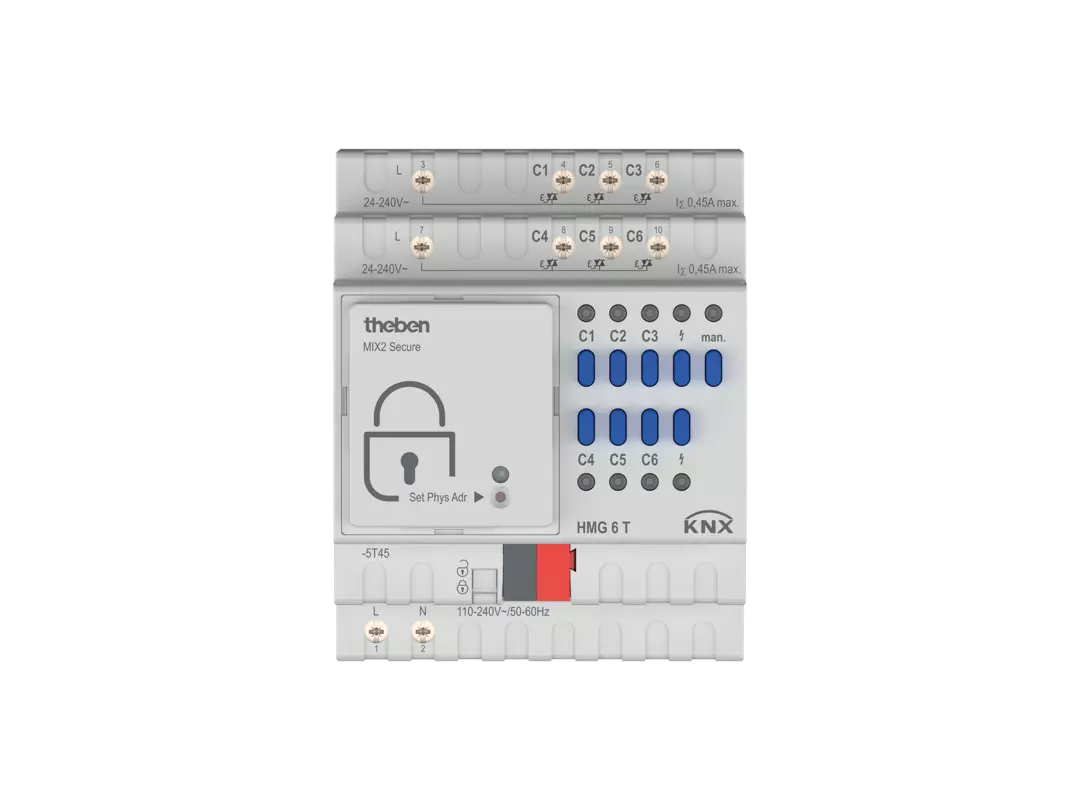

HMG 6 T KNX | 6-fold heating actuator 24–240 V AC base module MIX2
€155,60 Excl. tax
€270,62 Excl. tax
€188,28 Incl. tax €327,45 Incl. tax. Out of stock, but available
€188,28 Incl. tax €327,45 Incl. tax. Out of stock, but available
Heating actuator with 6 P/PI controllers for heating and cooling. Controls thermal actuators (24–240 V AC, triac), with short-circuit/overload protection, manual control, LED status, expandable to 18 channels. Read more
Specifications
Brand:
Theben
Article number:
4930240
EAN:
4003468490129
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
HMG 6 T KNX – 6-channel heating actuator/controller base module MIX2
Article number: 4930240
Application
The Theben HMG 6 T KNX is a 6-channel heating actuator and controller in the form of a base module from the MIX2 system. It features six integrated temperature controllers (P/PI) for controlling heating and cooling in residential and commercial KNX installations. The modular design allows expansion up to 18 channels by adding two MIX or MIX2 extension modules.
Functions
- 6-channel heating actuator and temperature controller with P/PI regulation
- Base module of the MIX2 system – expandable with up to 2 MIX/MIX2 extension modules

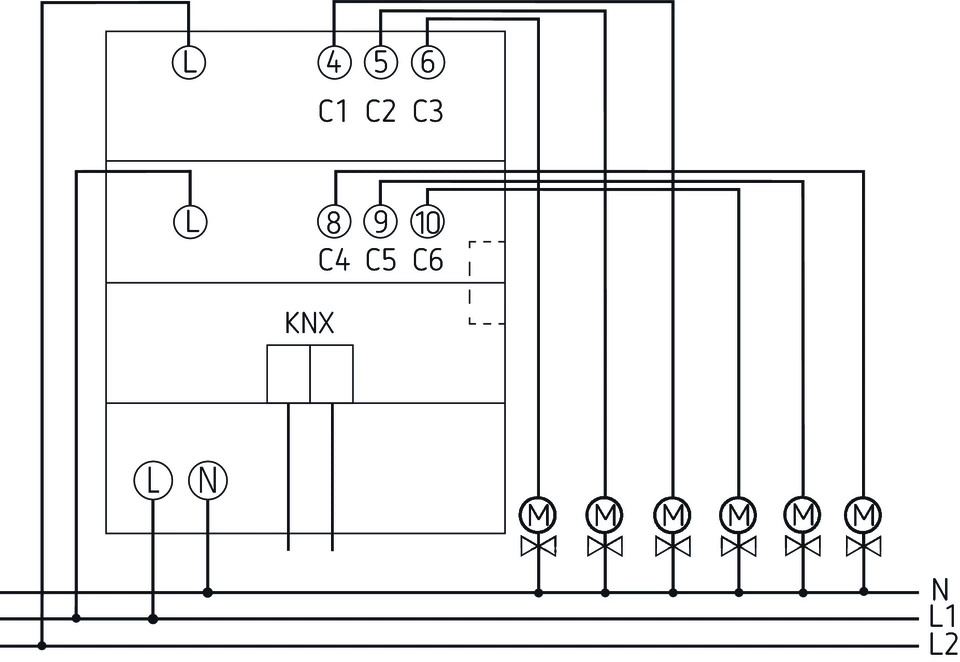

- Control of 6 thermal actuators (24–240 V AC) in 2 groups, each with 3 outputs (max. 450 mA per group)
- Recommended max load: 3x1 actuators at 24 V AC or 3x5 at 230 V AC
- Selectable control variable: constant or switching
- Valve protection function can be deactivated
- Operating modes: Comfort, Stand-by, Night, Frost/Overtemperature protection
- Switching to summer mode possible
- Integrated short-circuit and overload protection
- KNX bus module is removable and replaceable without reprogramming
- Manual operation possible even without KNX bus voltage
- LED status indication for each channel
Technical data
- KNX bus voltage: ≤ 4 mA
- Operating voltage: 110 – 240 V AC, 50/60 Hz
- Standby power consumption: approx. 0.3 W
- Maximum power loss: 1.1 W
- Mounting: DIN rail
- Width: 4 modules (TE)
- Number of channels: 6
- Connection type: Screw terminals | KNX bus terminal
- Max cable diameter:
- Solid core: 0.5 – 6 mm² (Ø 0.8)
- Stranded with ferrule: 0.5 – 4 mm²
- Switching outputs: Not potential-free
- Output type: Triac, 0.45 A
- Output voltage: 24 – 240 V AC
- Output frequency: 50 – 60 Hz
- Suitable for SELV: Yes, if all channels switch SELV
- Switching of different phases: Possible
- Protection class: IP 20
- Electrical protection class: II according to EN 60 669
- Ambient temperature: -5 °C to +45 °C
Important note: This module is a base module of the MIX2 system. To expand up to 18 channels, up to two MIX or MIX2 extension modules can be added.
