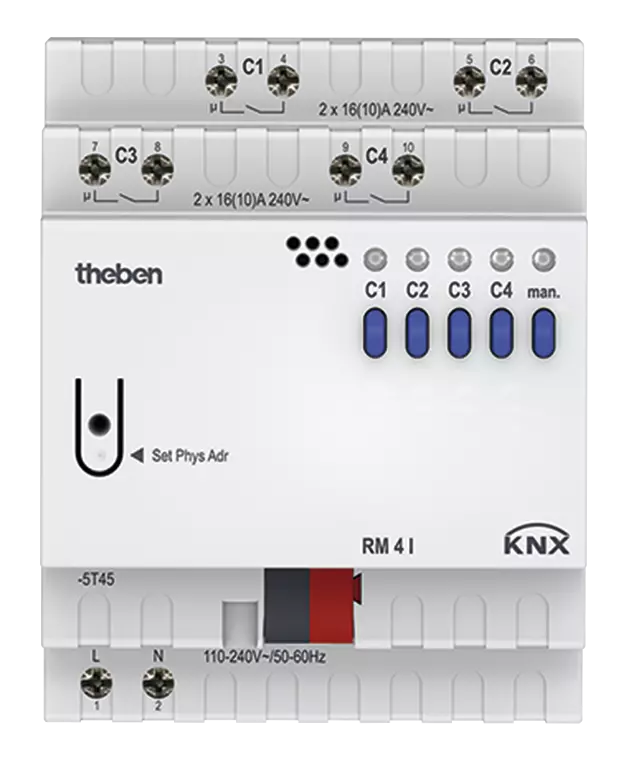

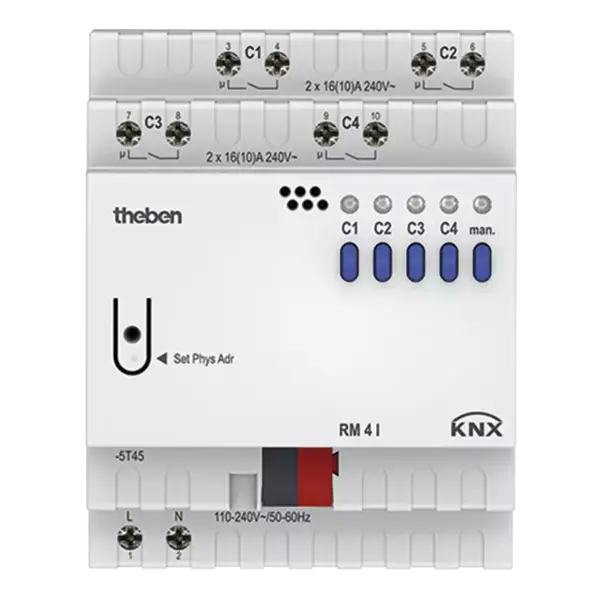

RM 4 I KNX switching actuator 4x16A C-load FIX1 with current detection
€198,16 Excl. tax
€344,63 Excl. tax
€239,77 Incl. tax €417,00 Incl. tax. Out of stock, but available
€239,77 Incl. tax €417,00 Incl. tax. Out of stock, but available
4-fold 16 A C-load actuator with FIX1 and current detection. Handles high inrush currents. Manual control, LED per channel. Read more
Specifications
Brand:
Theben
Article number:
4940210
EAN:
4003468490297
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
RM 4 I KNX – 4-channel C-load switching actuator
Item no. 4940210
Application
The RM 4 I KNX (item no. 4940210) by Theben is a powerful 4-channel switching actuator for KNX systems, suitable for high electrical loads such as LEDs, fluorescent lamps, incandescent and halogen lighting. Equipped with a FIX1 module, this actuator is optimized for capacitive loads (C-load) up to 16 A and features current detection per channel. The switching outputs can be operated manually—even without bus voltage—and offer LED status indication for each channel.
Main functions
- 4-channel switching actuator for capacitive loads (C-load) up to 16 A
- FIX1 module: suitable for high inrush currents (max. 1500 A / 200 µs)
- Current detection per channel with measurement accuracy from 150 mA
- Manual operation directly on the device, even without KNX bus voltage
- LED status indication for each channel
- Flexible parameterisation via ETS: switching, impulse function, delays, staircase lighting with pre-warning
- Logic functions: blocking, releasing, AND/OR operations
- Supports central functions: on/off, scene saving and recall
- Supports switching of different phases and SELV circuits (if all channels are configured for SELV)
Technical data
| Item number: | 4940210 |
| KNX supply voltage: | Via bus, ≤ 4 mA |
| Mains voltage: | 110–240 V AC, 50/60 Hz |
| Standby power consumption: | approx. 1.3 W |
| Mounting: | DIN rail (4 modules) |
| Connection type: | Screw terminals and KNX bus terminal |
| Max. cable cross-section: | Solid: 0.5–6 mm², ferrules: 0.5–4 mm² |
| Number of channels: | 4 |
| Contact type: | Normally open, 16 A / 10 A |
| Contact gap: | < 3 mm |
| Resistive load: | 3680 W |
| Capacitive load: | 200 µF |
| Incandescent/halogen lamps: | 2600 W |
| Fluorescent lamps (conventional ballast): | 2000 W (parallel compensated, 200 µF) |
| Fluorescent lamps (electronic ballast): | 1650 W |
| Energy-saving lamps: | 410 W |
| LED < 2 W: | 75 W |
| LED 2–8 W: | 850 W |
| LED > 8 W: | 850 W |
| Inrush current: | max. 1500 A / 200 µs |
| Output voltage: | 240 V AC (potential-free) |
| SELV compatible: | Yes, if all channels are configured for SELV |
| Current measurement: | I > 1 A: ±8%, I < 1 A: ±100 mA, minimum detectable: 150 mA |
| Module type: | FIX1 |
| Ambient temperature: | -5 °C to +45 °C |
| Protection rating: | IP20 |
| Protection class: | Class II (according to EN 60669) |
Important notes
- The RM 4 I KNX is designed for switching high loads such as LEDs with high inrush currents – use only with suitable wiring and installation standards.
- ETS software (version 5 or higher) is required for full configuration.
- Switching of different phases is possible thanks to potential-free outputs.
- Manual control remains available even without KNX bus voltage.
- For accurate current measurement, each channel must be loaded with at least 150 mA.
