HM 12T KNX | 12-channel heating actuator FIX1, KNX 24–230 V AC
€285,85 Incl. tax €497,14 Incl. tax. Out of stock, but available
Specifications
Information
Theben HM 12 T KNX
Art. no.: 4940245
Application
The HM 12 T KNX is a powerful 12-channel heating actuator and controller with FIX2 terminals for controlling up to 12 thermal actuators (24–240 V AC) in heating and cooling systems. Ideal for large residential and commercial installations.
Functions
- 12 temperature controllers (P/PI) for heating and cooling

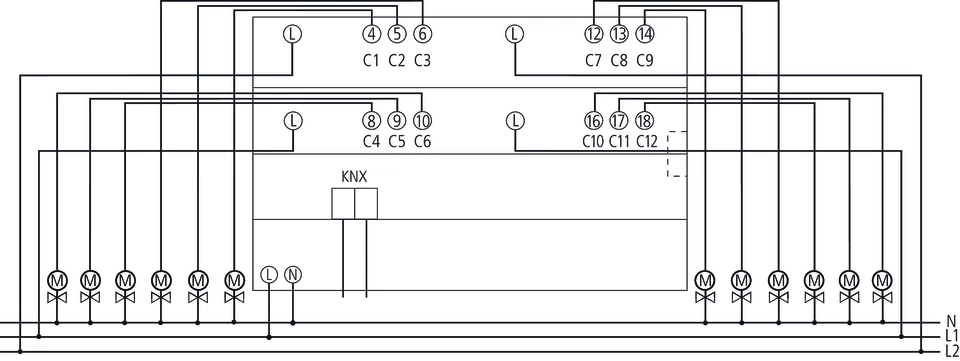

- Control of 12 thermal actuators 24–240 V AC in 4 groups with 3 outputs each (max. 450 mA per group)
- Selectable control variable: continuous or switching
- Deactivatable valve protection function
- 4 operating modes: Comfort, Stand-by, Night, Frost/Overtemperature protection
- Switch to summer mode possible
- Integrated short-circuit and overload protection
- Manual operation on the device possible (even without bus voltage)
- Switching status display via LEDs for each channel
Technical Specifications
| KNX supply voltage: | Bus voltage, ≤12 mA |
| Operating voltage: | 110 V AC – 240 V AC, 50–60 Hz |
| Frequency: | 50 – 60 Hz |
| Standby power consumption: | approx. 0.5 W |

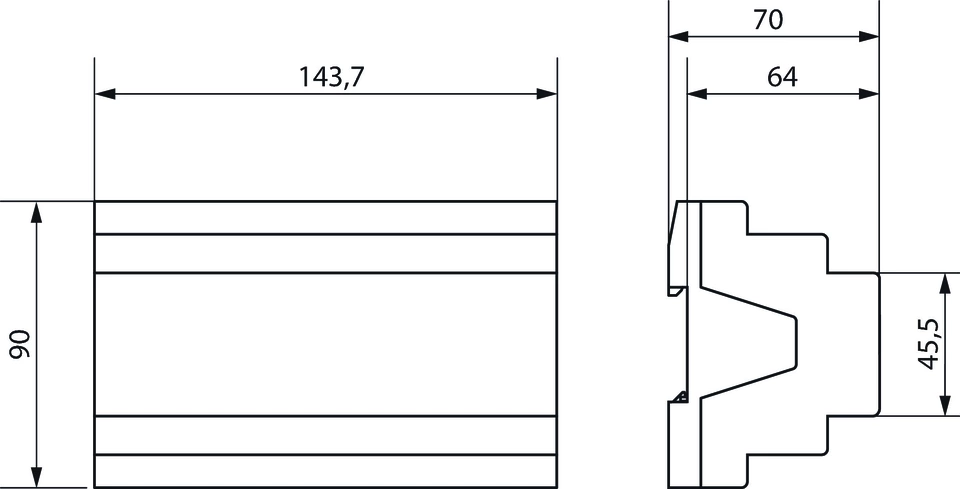

| Width: | 8 modules (DIN rail) |
| Number of channels: | 12 |
| Connection type: | Screw terminals, KNX bus terminal |
| Max. cable diameter: | Solid: 0.5–6 mm² | stranded with ferrule: 0.5–4 mm² |
| Switching output: | Not potential-free, triac, 0.45 A |
| Output voltage: | 24 V AC – 240 V AC |
| Output frequency: | 50 – 60 Hz |
| Suitable for SELV: | Yes, if all channels switch SELV |
| Switching of different phases: | Possible |
| Ambient temperature: | -5 °C ... +45 °C |
| Protection rating: | IP 20 |
| Protection class: | II (according to EN 60 669) |
Important Note
Due to the inrush behavior of thermal actuators, it is recommended not to exceed 3x1 thermal actuators at 24 V AC or 3x5 at 230 V AC per group.
