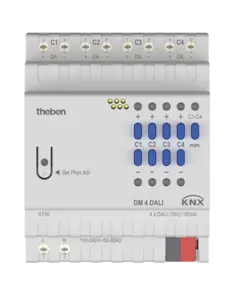

DM 4 DALI KNX | 4-channel DALI dim actuator for 4×30 DALI drivers
€167,88 Excl. tax
€291,97 Excl. tax
€203,13 Incl. tax €353,28 Incl. tax. Out of stock, but available
€203,13 Incl. tax €353,28 Incl. tax. Out of stock, but available
4-channel DALI actuator (gateway) with KNX interface. DALI-2 certified, controls 4×30 devices via Broadcast. Supports color and color temperature (DT8). Read more
Specifications
Brand:
Theben
Article number:
4940300
EAN:
4003468491485
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

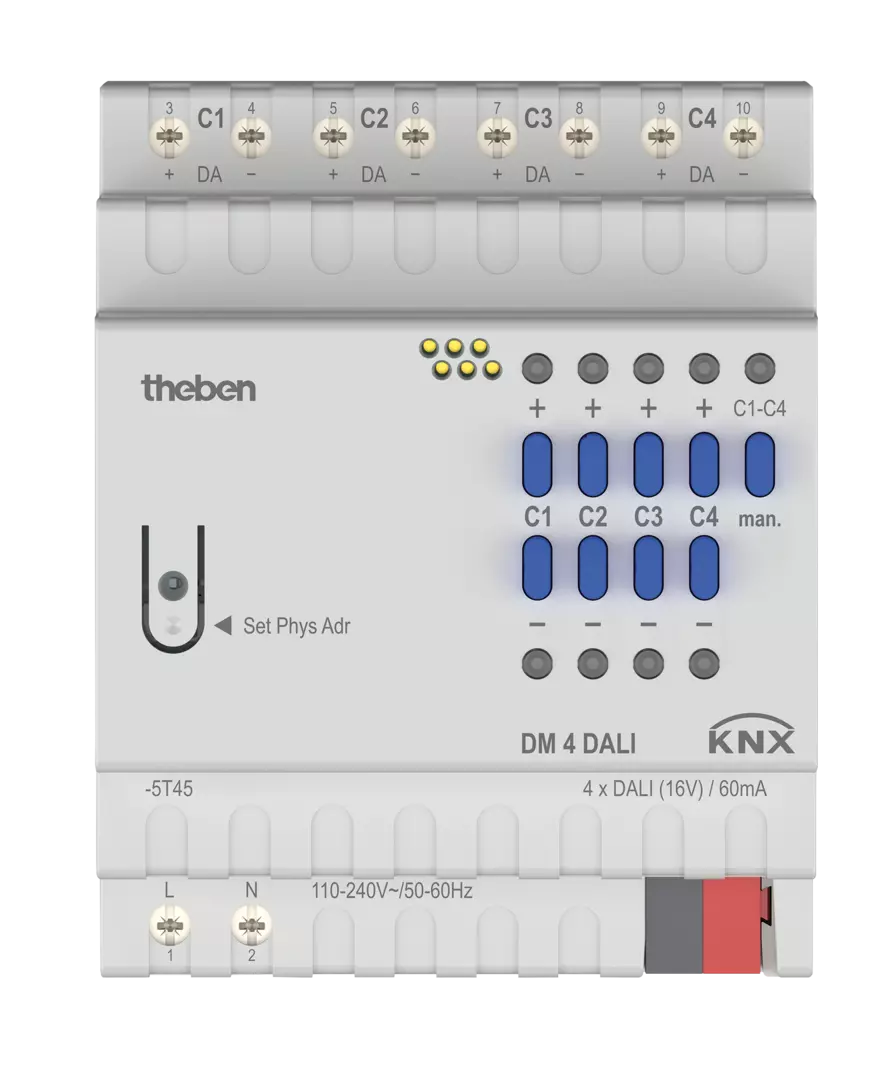

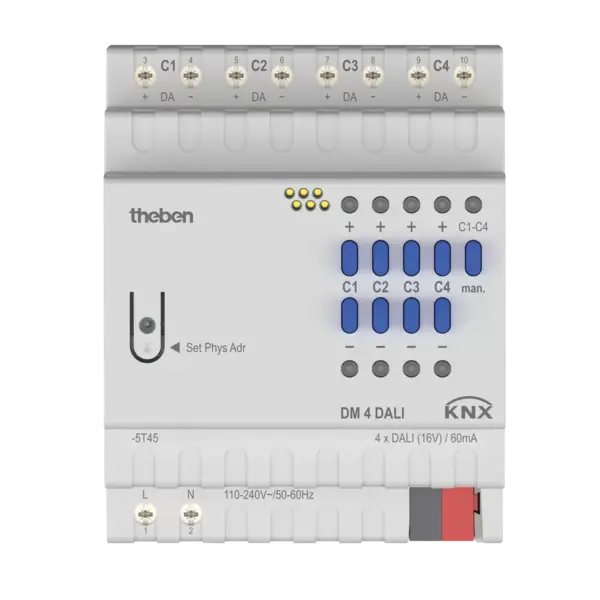

DM 4 DALI KNX | 4-channel DALI actuator (gateway)
DALI-2 certified
Art. no.: 4940300
Application
The Theben DM 4 DALI KNX is a powerful 4-channel DALI actuator (gateway) that provides seamless integration between a KNX installation and the DALI lighting system. Thanks to DALI-2 certification and DT8 functionality, it enables advanced lighting control, including adjustment of color and color temperature.
Functions

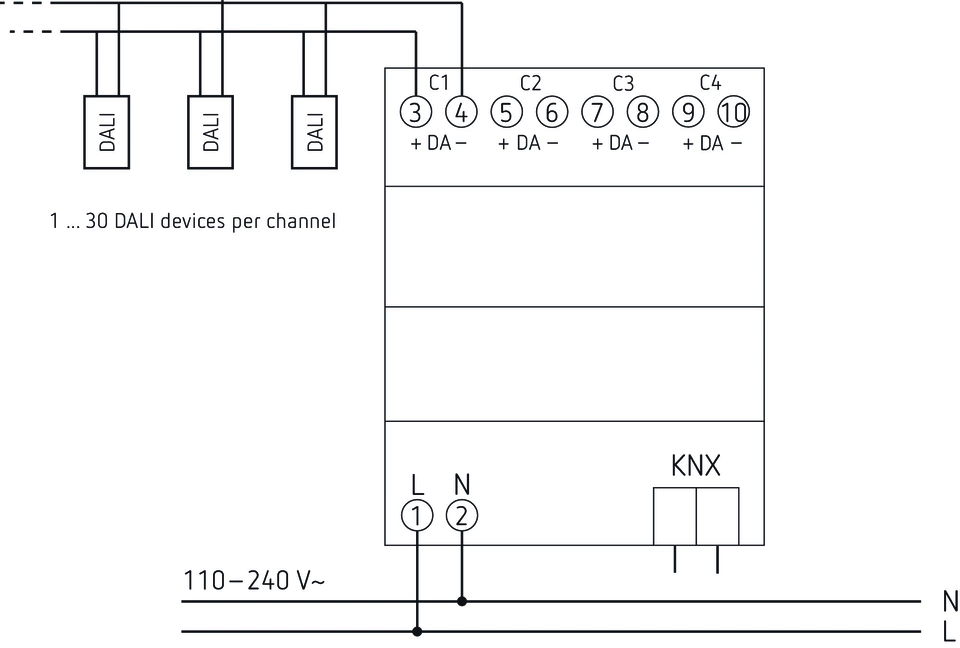

- 4 independent DALI channels, each supporting up to 30 DALI devices
- DALI-2 certified in accordance with the latest standards
- Support according to EN 62386-209 (DT8)
- Broadcast communication per channel – simplifies commissioning and device replacement
- Easy integration into ETS without additional software or plug-ins
- Maintenance-friendly thanks to simple replacement of electronic ballasts (EVGs)
- Supports KNX Data Secure for secure communication
Technical specifications
| KNX operating voltage | KNX bus voltage, <10 mA |
|---|---|
| DALI operating voltage | 100 – 240 V AC/DC, 50 – 60 Hz |
| Frequency | 50 – 60 Hz |
| Width | 4 modules (TE) |
| Mounting type | DIN rail (35 mm) |
| Connection type | Screw terminals, KNX bus terminal |
| Max. number of DALI devices | 30 per channel, total 120 |
| Number of DALI channels | 4 (broadcast communication) |
| Supported functions | Color and color temperature control (DT8) |
| Protection class | I (according to EN 61140) |
| Protection rating | IP 20 |
| Ambient temperature | -5 °C to +45 °C |
| Storage temperature | -25 °C to +70 °C |
Advantages
- Efficient DALI lighting control with 4 independent channels
- Fast commissioning thanks to broadcast communication
- Flexible extension and replacement of luminaires without reprogramming
- Ideal for applications with advanced lighting scenes
- Fully integrated into KNX systems without additional apps
Important note: This device functions as a gateway between DALI and KNX systems. Each channel supports up to 30 DALI devices via broadcast. Color and color temperature control requires DALI-2 compatible luminaires.
