DALI Gateway S64 KNX | 1 channel for 64 DALI drivers
€266,74 Excl. tax
€463,90 Excl. tax
€322,76 Incl. tax €561,32 Incl. tax. Out of stock, but available
€322,76 Incl. tax €561,32 Incl. tax. Out of stock, but available
DALI-2 certified gateway with 1 channel for 64 DALI luminaires. (16) groups, (16) scenes, effects, color control (DT8). Easy setup and ballast replacement via ETS DCA. Read more
Specifications
Brand:
Theben
Article number:
4940301
EAN:
4003468491690
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

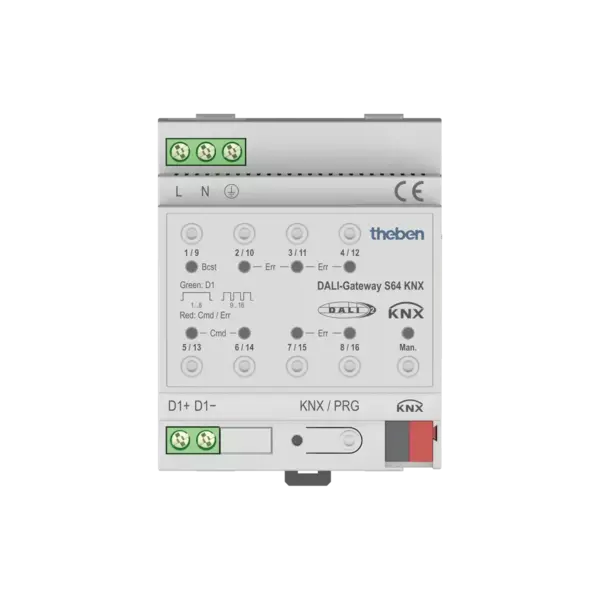

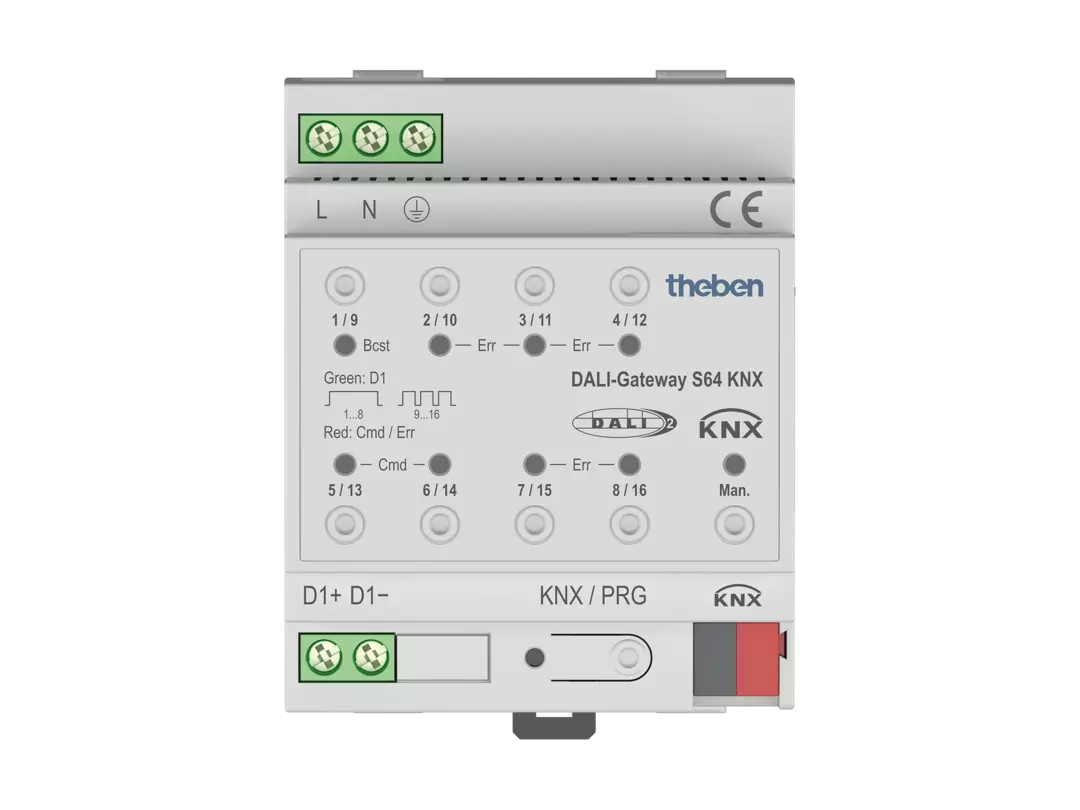

Theben DALI-Gateway S64 KNX
Art. no.: 4940301
Application
DALI gateway for integrating DALI lighting systems into a KNX installation. Ideal for building automation requiring flexible lighting control and energy efficiency.
Functions
- Interface between the DALI system and the KNX bus
- DALI-2 certified
- 1 channel for up to 64 DALI luminaires (DALI devices)
- Control in (16) groups
- Color control using device type 8 (DT8) for 16 groups: color temperature, XY, RGB, HSV, RGBW
- Time-based color control (also suitable for Human Centric Lighting)
- Scene module for (16) scenes including DT8 color settings
- Effect module for sequence control with DT8 color settings
- Energy saving via group-wise switching of DALI power (communication object)
- Easy replacement of ECGs in case of failure
- Commissioning and configuration via free ETS DCA app
Technical specifications
- KNX supply voltage: via bus, < 10 mA
- Operating voltage: 100 V AC/DC – 240 V AC/DC, 50/60 Hz
- Frequency: 50 - 60 Hz
- Width: 4 modules (TE)
- Mounting type: DIN rail (TH35)
- Connection type: Screw terminals and KNX bus terminal
- Ambient temperature (operation): -5°C ... +45°C
- Storage temperature: -25°C ... +70°C
- Protection class: I
- Protection rating: IP 20 (according to EN 60529)
Important notes
- The gateway has only one DALI channel for up to 64 DALI devices
- Commissioning requires ETS and the corresponding (free) DCA app
- DT8 support requires compatible DALI luminaires
