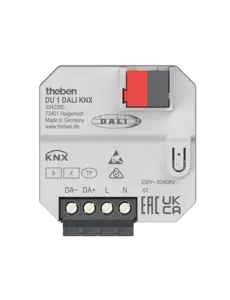

DU 1 DALI KNX | 1-channel DALI actuator with KNX Data Secure
€132,75 Incl. tax €230,88 Incl. tax. Out of stock, but available
Specifications
Information
Product Description – DU 1 DALI KNX
Art. no.: 4942580
Application
The DU 1 DALI KNX is a 1-channel flush-mounted DALI actuator, designed to integrate DALI lighting systems into KNX installations. DALI-2 certified and compatible with various luminaire types, including RGB, RGBW, Tunable White, and DT8. Thanks to its compact design, installation is easy even in confined spaces.
Functions
- 1-channel flush-mounted DALI actuator
- DALI-2 certified for optimal compatibility
- Interface between the DALI system and the KNX bus
- Supports RGB, RGBW, Tunable White, and DT8 luminaires
- Simple commissioning of up to 30 ballasts in broadcast mode
- Easy ballast replacement without reconfiguration
- 2 binary inputs for dry contacts (e.g. push button, switch, sensor)
- Integrated temperature monitoring for increased safety
- Secure communication via KNX Data Secure
- Preconfigured output for function test prior to programming
- Compact housing for fast installation
Technical Data
| KNX supply voltage | Via KNX bus, consumption ≤5 mA |
| DALI supply voltage | 230 V AC, 50–60 Hz |
| Frequency | 50–60 Hz |
| Standby power consumption | approx. 0.35 W |
| Number of channels | 1 |
| Mounting type | Flush-mounted |
| Connection type | Screw terminals, KNX bus terminal |
| Module type | Base module |
| Operating temperature | -5 °C to +45 °C |
| Protection rating | IP20 |
| Protection class | II |
Important Note
The DU 1 DALI KNX is intended for indoor use only. It must be properly connected to the KNX bus and supplied with 230 V to operate. Commissioning in broadcast mode is limited to a maximum of 30 DALI ballasts (electronic control gear). Adhering to the specified operating temperature range is essential for reliable use. Thanks to KNX Data Secure, communication is protected against tampering.
