RAMSES 718 P KNX – Room thermostat, rotary, 4 binary inputs
€145,80 Excl. tax
€253,56 Excl. tax
€176,42 Incl. tax €306,81 Incl. tax. Out of stock, but available
€176,42 Incl. tax €306,81 Incl. tax. Out of stock, but available
KNX room thermostat with rotary control, 4 binary inputs, manual override, LED indication. For heating/cooling. Supports continuous or two-point control. Read more
Specifications
Brand:
Theben
Article number:
7189210
EAN:
4003468710210
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

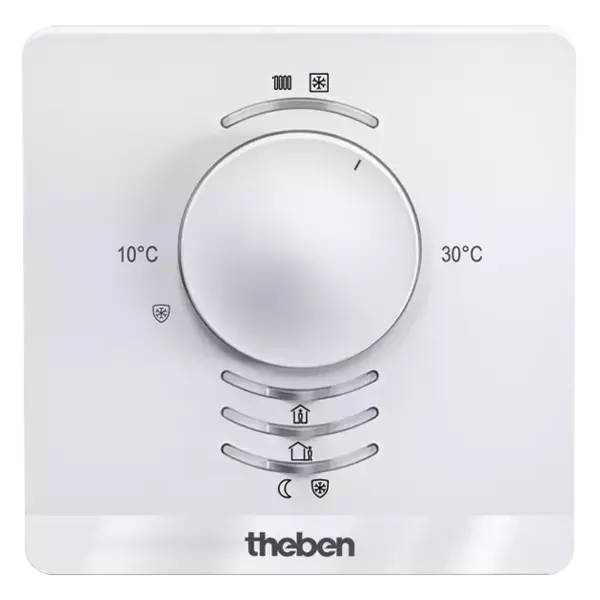

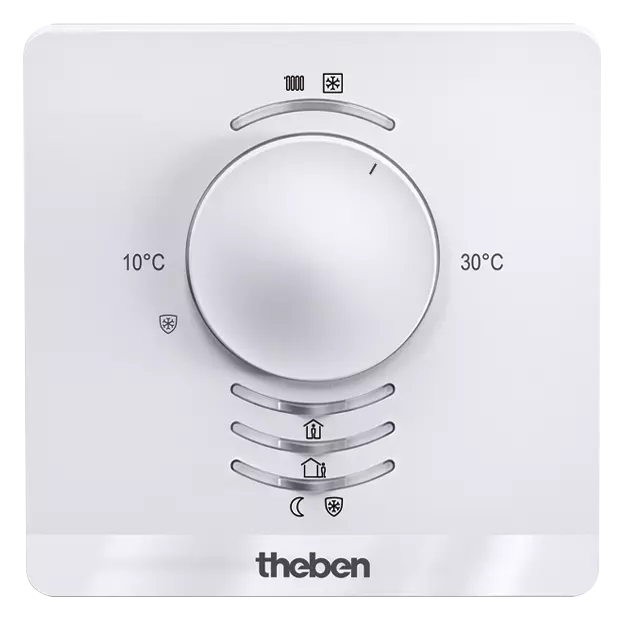

RAMSES 718 P KNX
Individual KNX room thermostat with rotary control
Item no.: 7189210
Application
The RAMSES 718 P KNX is a versatile individual room thermostat for KNX building automation. Suitable for controlling heating actuators or motorised actuators, it is ideal for both residential and commercial buildings. The device features a rotary control for easy temperature adjustment, a manual override button for quick mode selection, and 4 binary inputs for conventional switches, sensors, or external temperature sensors. Two front panels (numerical and relative scale) are included for flexible use and design.
Features
- Individual room temperature control for heating and cooling
- Rotary knob for local temperature adjustment, range can be limited via parameters
- Supports continuous (PI) or two-point control (can be combined)
- PI control configurable for 2-stage heating (base and additional, e.g. underfloor + radiators) or for heating/cooling
- Manual override button for direct selection of comfort, standby, night setback, frost protection

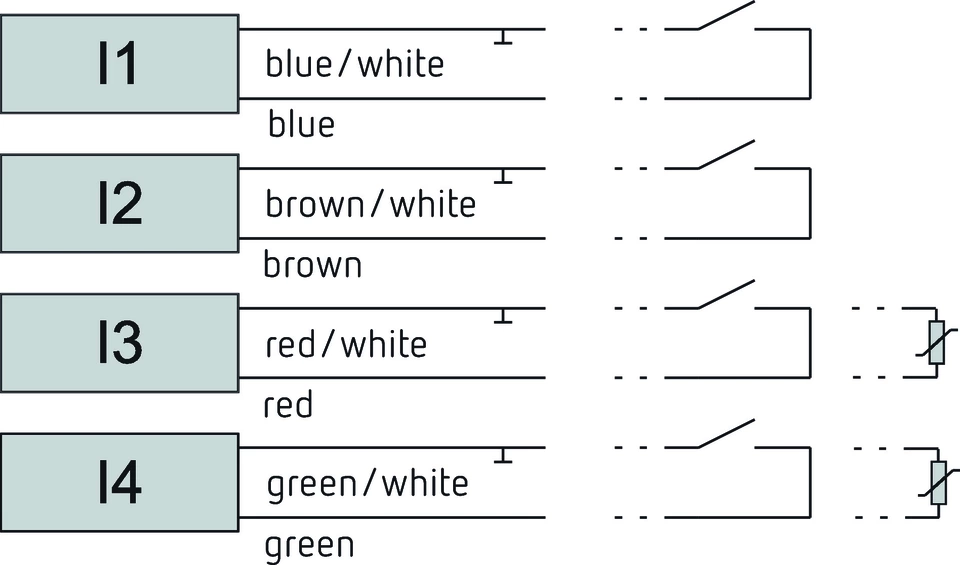

- 4 binary inputs for switches, pushbuttons, sensors, external temp. sensor, window contact, or presence signal
- External temperature sensor can be connected for remote temperature reading
- LED indicator: red for heating, blue for cooling, additional LEDs for operation mode
- Two front panels: numerical and relative scale (both included)
- Compact design for surface mounting
- Easy installation with KNX bus terminal and screw terminals for sensors
- Suitable for new builds and renovations
Technical specifications
| KNX operating voltage | Bus voltage, ≤12 mA |
|---|---|
| Connection type | KNX bus terminal (bus) & screw terminals (sensor) |
| Mounting type | Surface-mounted |
| Display | LEDs (red/blue + status LEDs) |
| Interface extension max. | 30 m |
| Ambient temperature | 5°C ... 40°C |
| Temperature measuring range | -5°C ... 45°C |
| Temperature setting range | 10°C ... 30°C |
| Contact voltage | 5 V internal supply |
| Contact current | 0.5 mA |
| Number of inputs | 4 (binary inputs) |
| Protection type | IP 20 |
| Protection class | III according to EN 60 730-1 |

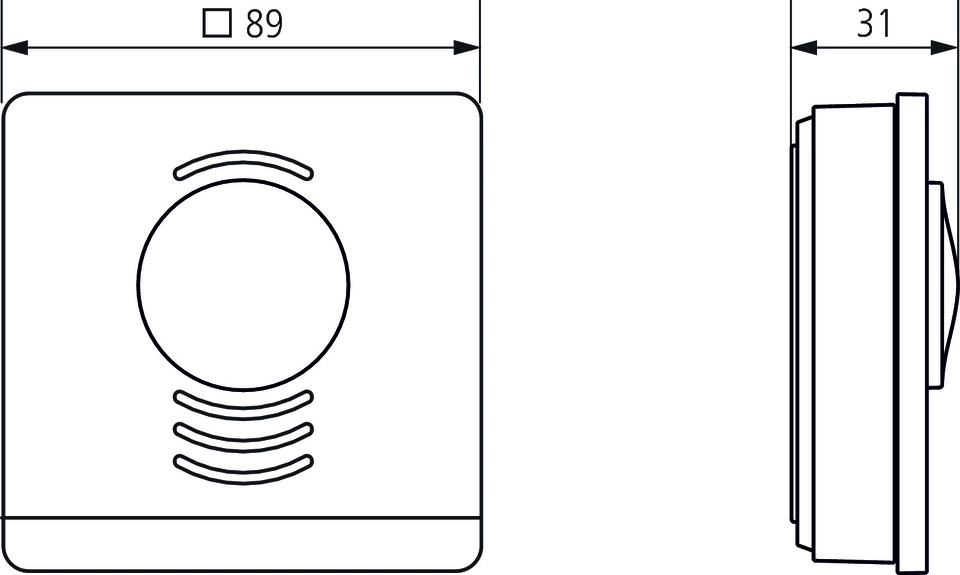

| Dimensions | (Dimensions on request or as per datasheet) |
Important notes
- For indoor use only (IP20).
- Installation and connection only by certified KNX installers.
- The four binary inputs offer maximum flexibility for automation solutions.
- Two front panels included as standard (numerical and relative scale).
- Manual override button for instant mode selection.
- See technical documentation for all configuration options and KNX integration.
- Not suitable for use in damp or aggressive environments.
